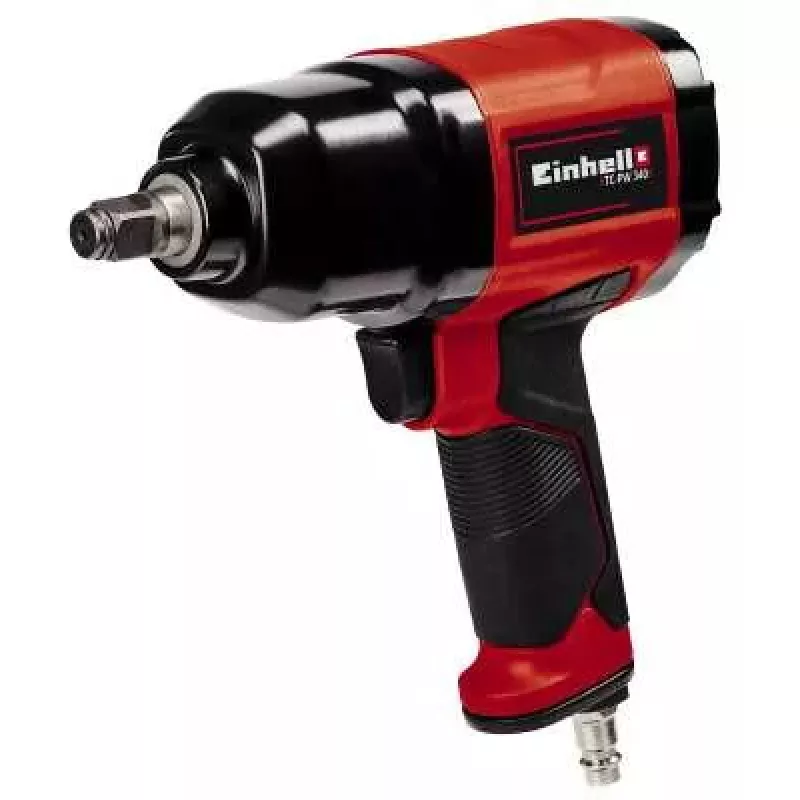

Chave de catraca pneumática Einhell TC-PW 340, 7500 RPM, 340 N⋅m

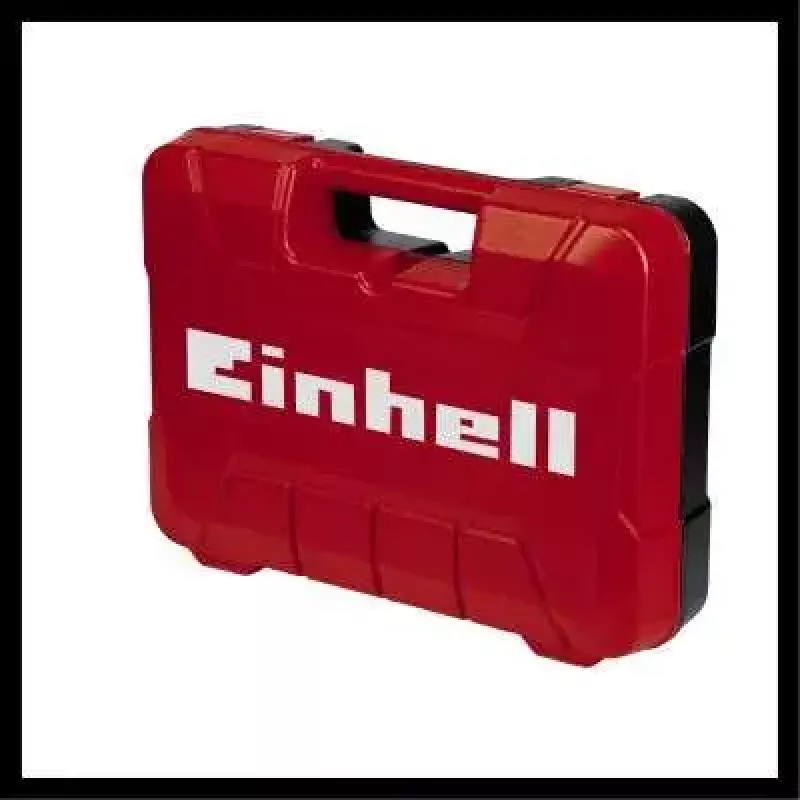

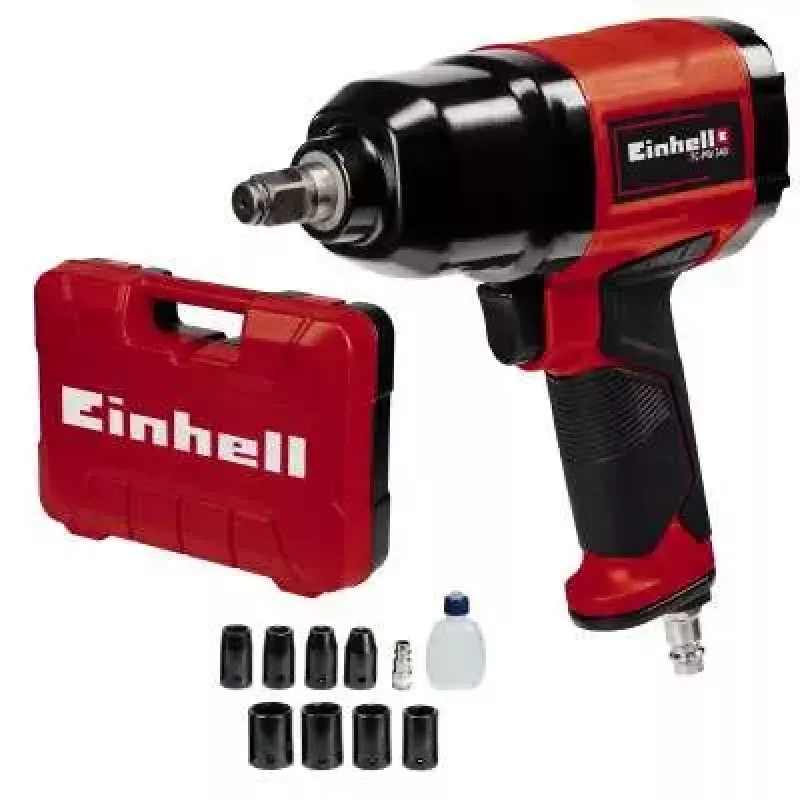

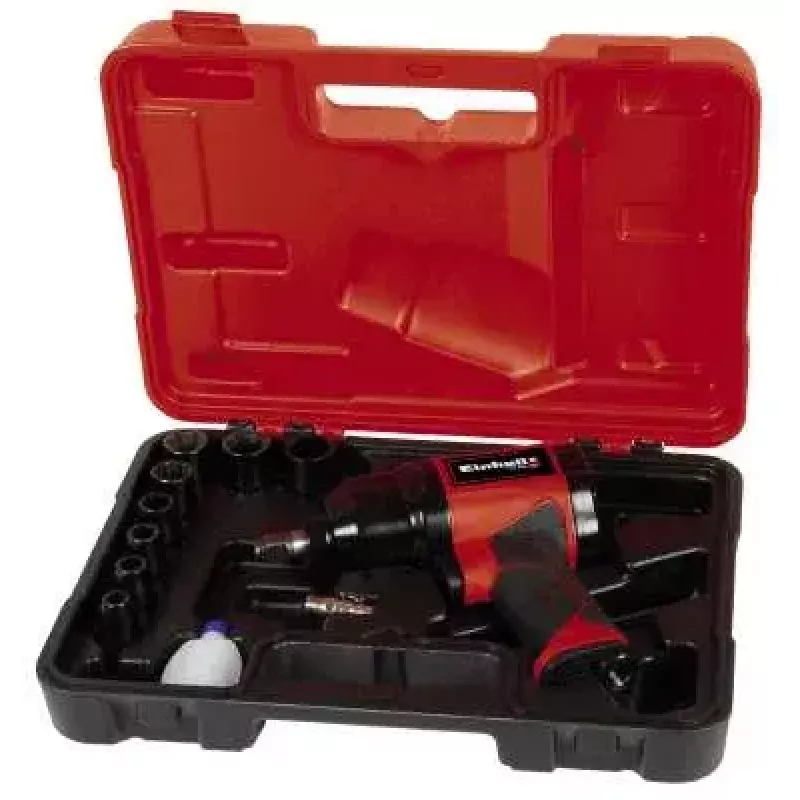

The Einhell TC-PW 340 air ratchet wrench is a compressed-air driven impact tool designed for home, workshop and garage use. It delivers a maximum torque of 340 N·m and a maximum idle speed of 7,500 RPM, and is compact and easy to handle with dimensions of 82 × 346 × 255 mm and a weight of 1.9 kg. The tool accepts hose inner diameters of 9 mm or larger and operates at a maximum working pressure of 6.3 bar. The set includes eight socket wrenches in standard sizes (8 / 10 / 11 / 13 / 17 / 19 / 21 / 22 mm), a small oil bottle, a nipple and a practical transport and storage case.

Advantages

The pneumatic impact wrench offers high torque for demanding fastening and loosening tasks while remaining compact for good manoeuvrability. A rubberized non-slip handle provides secure, comfortable grip. The unit supports counter-clockwise one-step and clockwise three-step operation for versatile control, and its airflow and speed specifications (up to 142 l/min and 7,500 RPM) ensure efficient performance when used with appropriate compressed-air supply.

Suitable for

• Automotive maintenance and tyre and wheel work
• General workshop fastening and loosening tasks
• Mechanical assembly and repair in home and small commercial garages

Key specifications

• Maximum torque: 340 N·m
• Maximum idle speed: 7,500 RPM
• Power source: compressed air
• Maximum working pressure: 6.3 bar
• Required hose inner diameter: ≥ 9 mm
• Maximum thread size: 14 mm
• Maximum airflow: 142 l/min
• Weight: 1.9 kg

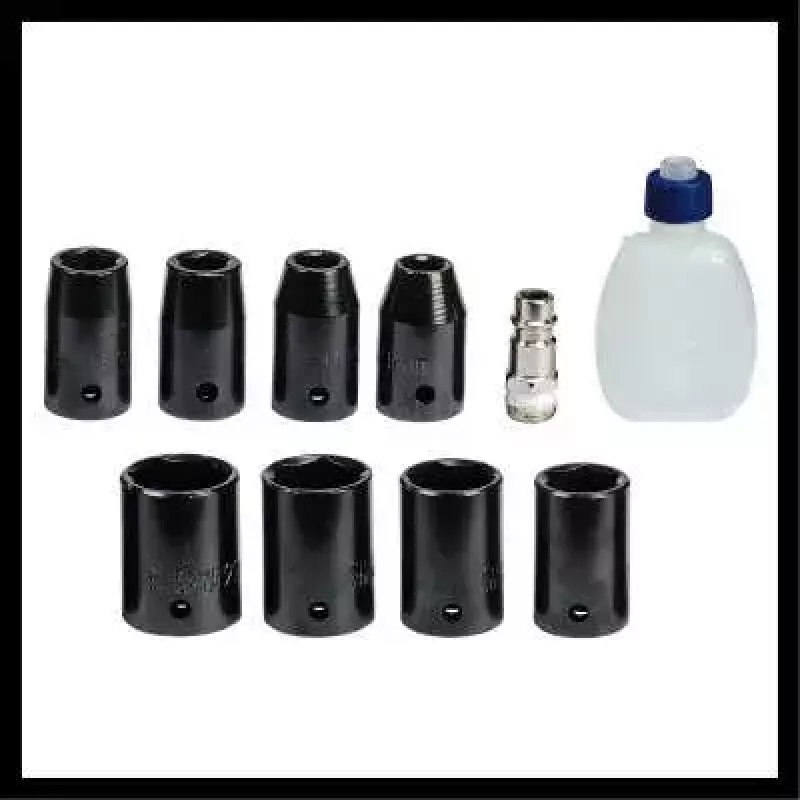

• Includes sockets: 8, 10, 11, 13, 17, 19, 21, 22 mm; oil bottle; nipple; transport case

How to use

Connect the Einhell TC-PW 340 to a compressed-air supply using a hose with an inner diameter of at least 9 mm and ensure the supply pressure does not exceed 6.3 bar. Fit the required socket to the drive, select the desired rotation direction and impact mode (counter-clockwise one-step or clockwise three-step), then apply the tool to the fastener and operate while maintaining a firm grip on the rubberized handle. After use, allow the tool to run briefly without load, disconnect the air supply, and store the wrench and accessories in the provided case. Regularly add a few drops of pneumatic tool oil via the supplied oil bottle to the inlet to ensure proper lubrication.

Recommendations

Use the tool with a suitable air compressor and correctly sized hose (≥ 9 mm inner diameter) to achieve rated performance. Always wear appropriate personal protective equipment, follow vehicle or equipment manufacturers’ torque specifications, and avoid exceeding the maximum working pressure and maximum thread size stated for the tool.
