Chave dinamométrica de encaixe HAZET 6108-1CT 1/4 polegada acionamento 198 mm 342 g

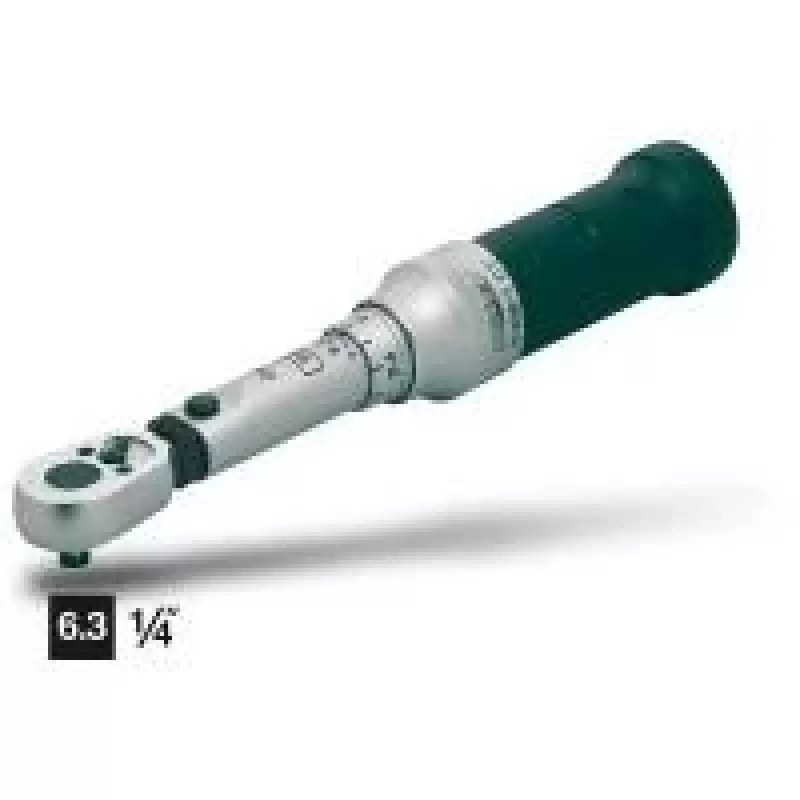

The HAZET 6108-1CT is a mechanical click torque wrench with a 1/4" (6.3 mm) square drive and a total length of 198 mm. Made in Germany, it is designed for precise torque applications in engines, gearboxes, machinery and model making. The wrench emits a palpable and audible click when the preset torque is reached and features a handle for easy and safe torque adjustment. It complies with DIN EN ISO 6789-2:2017 and uses a square according to DIN 3120 / ISO 1174-1.

Advantages

The wrench offers an automatic close-gap release that signals when the set torque is achieved, and an accuracy of ±2% in the direction of actuation (the 6106-1 CT variant is ±4%). Its compact length and solid 6.3 mm (1/4") square output provide good access in confined spaces, and long-term testing on HAZET 5000 and 6000 series tools indicates there is no need to turn the setting back to the lowest scale value after use. The tool is manufactured in Germany.

Suitable for

• Automotive engine assembly and maintenance
• Gearbox and transmission work
• Industrial machinery fastening
• Precision model making and small assemblies

Key specifications

• Model: HAZET 6108-1CT
• Drive / Output: Square solid 6.3 mm (1/4")
• Total length: 198 mm
• Net weight: 0.34 kg (342 g listed)
• Accuracy: ±2% (direction of actuation); 6106-1 CT: ±4%
• Standards: DIN EN ISO 6789-2:2017; Square according to DIN 3120, ISO 1174-1
• Country of origin: Germany

How to use

Set the desired torque value by turning the handle until the scale aligns with the required setting. Apply the wrench to the fastener and apply force in the direction of actuation. When the preset torque is reached the tool releases with a palpable and audible click; stop applying force immediately. After use, store the torque wrench in a dry place. No mandatory return-to-zero procedure is required based on long-term tests, though following manufacturer care instructions is recommended.

Recommendations

Use the HAZET 6108-1CT for controlled torque applications on small fasteners and in confined spaces. Verify the correct torque setting before each use and adhere to the relevant torque values specified by equipment manufacturers. Periodically calibrate the wrench according to DIN EN ISO 6789-2:2017 to maintain accuracy.
