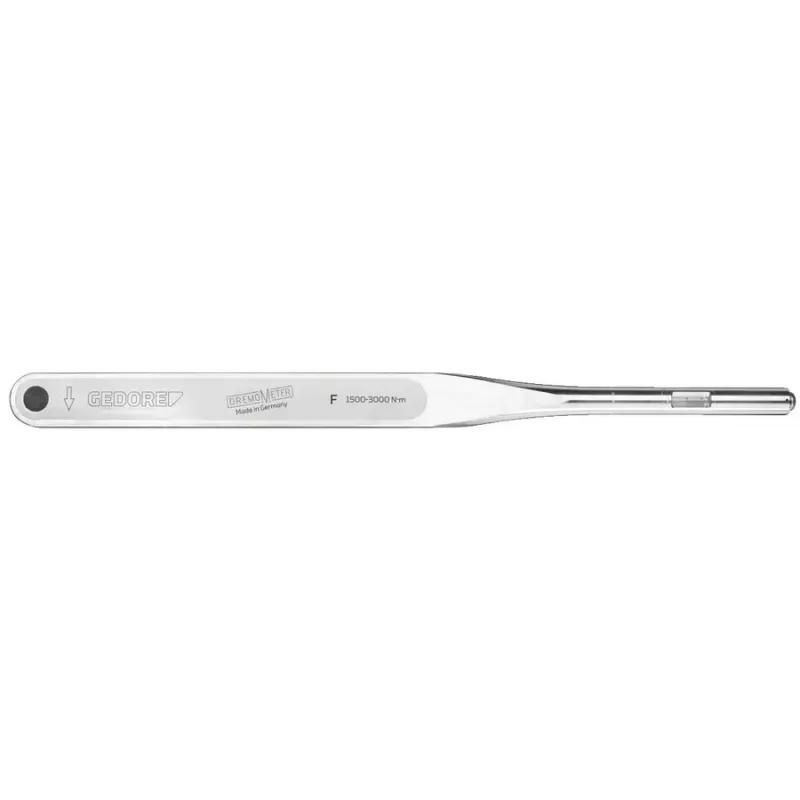

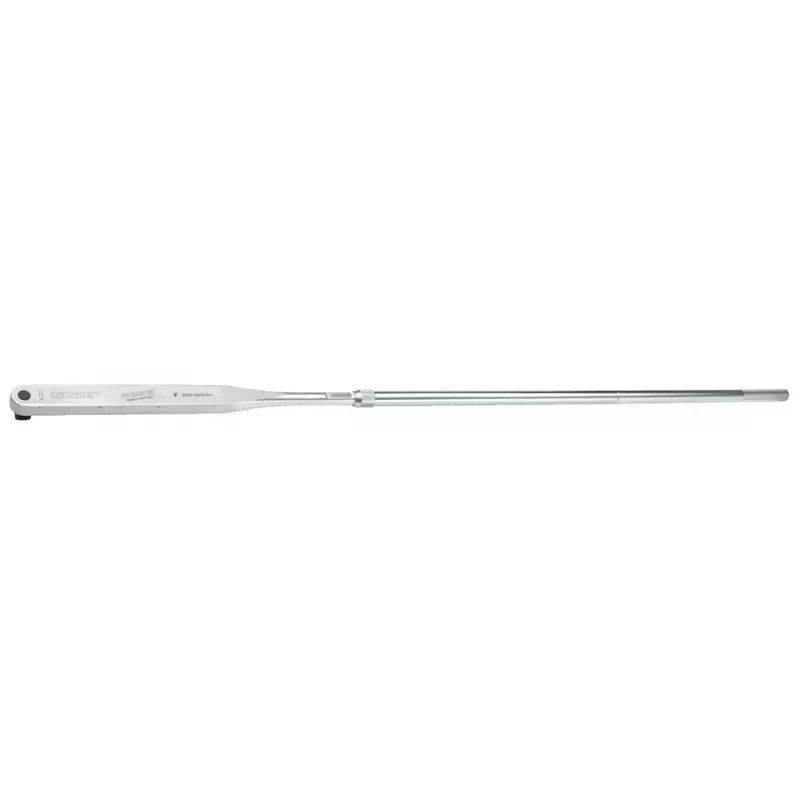

Chave dinamométrica Gedore DREMOMETER F 8572-01 1 1/2 polegadas, 1500-3000 Nm (7717160)

With a massive torque range of 1500 to 3000 Nm and a ±3% tolerance, the Gedore DREMASTER DMK 8572-01 delivers industrial-grade precision for the most demanding bolting applications. Its 1-inch square drive and 1470 mm length provide the leverage needed for heavy-duty fastening in steel construction, mining, and heavy equipment maintenance.

Overview

The Gedore 8572-01 is a click-type torque wrench engineered for controlled screw tightening in industrial and automotive sectors. It features a dual scale (Nm and lbf·ft) with a micrometer adjustment mechanism for fine, secure torque setting. The automatic short-path trigger releases with an audible and tactile signal, preventing over-tightening. Constructed from high-quality steel with an ergonomic non-slip handle, this tool is built for reliability and comfort in challenging environments.

What stands out

• Wide torque range: 1500 - 3000 Nm for heavy-duty applications
• High accuracy: ±3% tolerance of the set scale value
• Click-type operation with audible and tactile feedback
• Dual scale (Nm and lbf·ft) for international use
• Micrometer adjustment with secure locking system
• Ergonomic, non-slip handle for safe operation
• Complies with DIN EN ISO 6789:2017 Type II Class A
• Includes calibration certificate

Technical details

• Drive size: 1 inch (25 mm) square drive
• Torque range: 1500 - 3000 Nm
• Minimum torque: 1500 Nm
• Maximum torque: 3000 Nm
• Torque accuracy: ±3% tolerance of set scale value
• Operating mode: Click-type (audible and tactile signal)
• Operating direction: Clockwise (CW)
• Scale type: Dual scale (Nm and lbf·ft)
• Adjustment mechanism: Micrometer scale for fine adjustment
• Construction material: High-quality steel
• Handle type: Ergonomic, non-slip handle
• Standard compliance: DIN EN ISO 6789:2017 Type II Class A
• Release system: Automatic short-path trigger
• Locking system: Secure locking of the set torque value
• Application: Controlled screw tightening in industrial and automotive sectors
• Overall length: 1470 mm
• Series: Gedore DREMASTER DMK
• Drive type: Square drive for interchangeable insert tools
• Calibration certificate: Included

Our verdict

The Gedore DREMASTER DMK 8572-01 is a top-tier torque wrench for professionals who demand accuracy and durability in high-torque applications. Its robust construction, precise adjustment, and clear feedback make it an indispensable tool for heavy industry.
