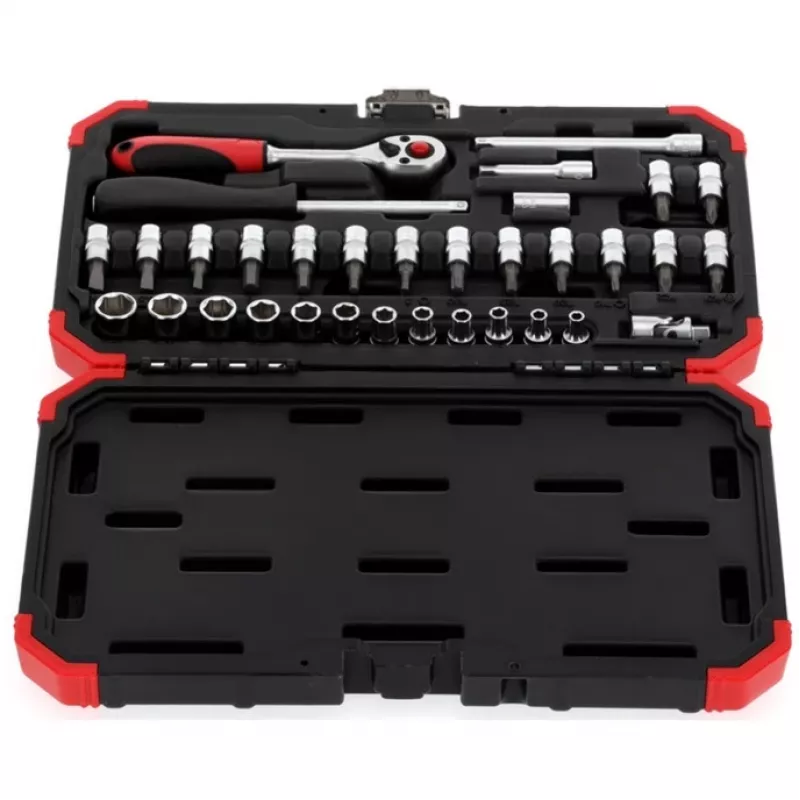

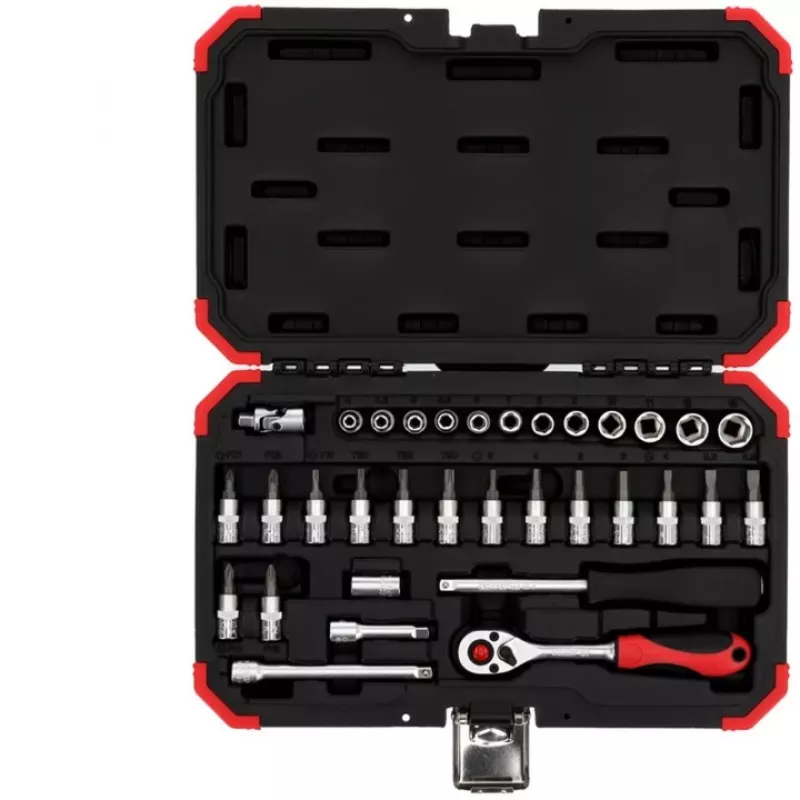

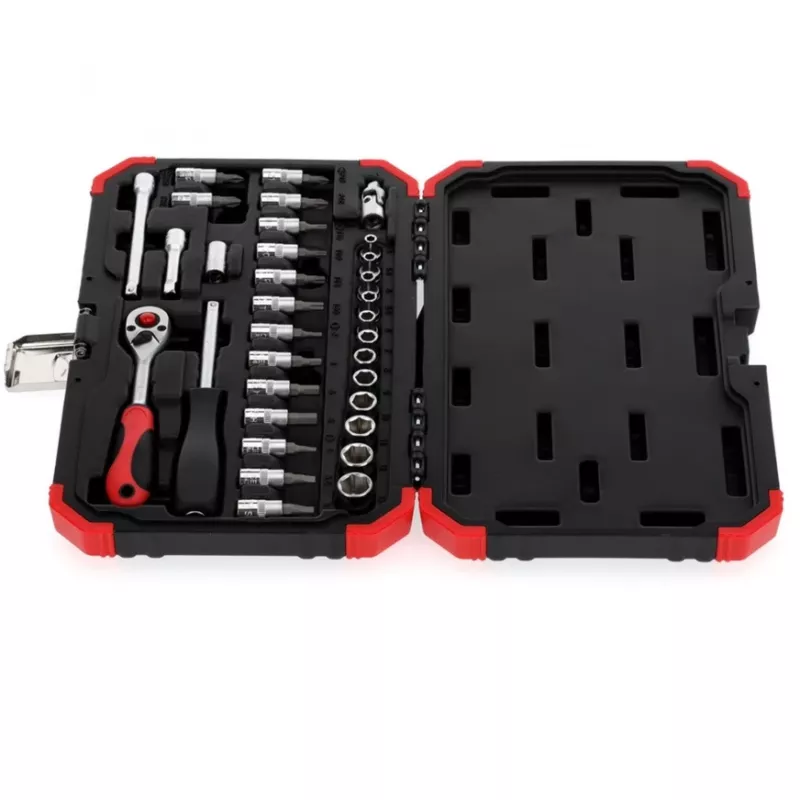

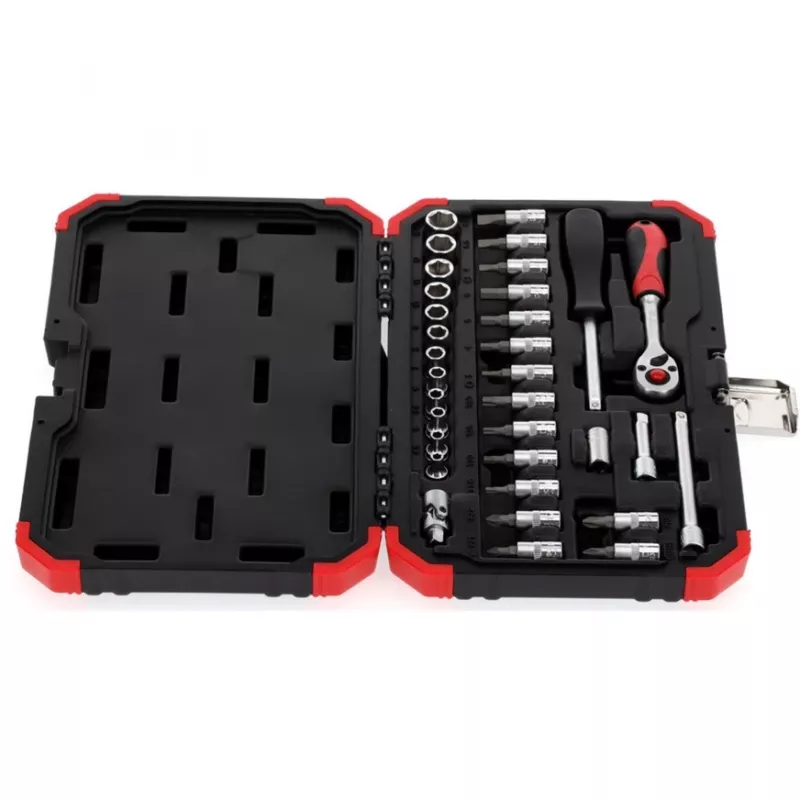

Conjunto de chaves de caixa Gedore R49003033 1/4 polegadas métrico

Gedore R49003033 1/4 inch Metric socket set contains a comprehensive selection of 1/4" drive tools and sockets in metric sizes, supplied in a red plastic case. Components are made from chrome-vanadium steel with a matt satin chrome finish and are intended for hand-operated screw and maintenance work. The set includes ratchet, coupler, extensions, universal joint, bit adaptors and a variety of 1/4" sockets and bit sockets suitable for hex, slotted, Phillips, Pozidriv and Torx fasteners.

Advantages

The tools combine standardized interfaces (DIN/ISO) such as DIN 3120 and ISO 1174 with durable chrome-vanadium construction and satin chrome plating for corrosion resistance. A reversible 2-component ratchet with fine tooth gearing, push-button release and an oval head provides controlled operation in confined spaces. Bit sockets have pressed-in, phosphated pins to secure bits, and the set is supplied in a clamp-secured plastic case with metal hinges for organised storage and transport.

Suitable for (tasks / use cases)

• Precision maintenance and repair work on machinery and equipment
• Automotive and bicycle maintenance requiring metric 1/4" sockets
• Assembly and disassembly of small fasteners in electronics and appliances
• Workshop tasks where compact, hand-operated tooling is needed

Key specifications

• Drive size: 1/4" (6.3 mm) according to DIN 3120 / ISO 1174
• Material: chrome-vanadium steel, matt satin chrome-plated
• Ratchet: 2C reversible ratchet 1/4" with fine tooth, push-button release, oval head, 2-component handle
• Coupler and square drive: ball lock and ball retention groove per DIN 3120
• Sockets: 1/4" hex metric (short) to DIN 3124 / ISO 2725
• Bit sockets: 1/4" for hex, slotted, PH, PZ, TX with pressed-in phosphated pin
• Accessories: socket extension 1/4", universal joint 1/4" (bolted per DIN 3123), bit adaptor 1/4" with internal hex and female square
• Case: plastic case in GEDORE red with clamp-secured tools and metal hinges/fastener

How to use

Select the appropriate 1/4" socket or bit socket for the fastener profile and attach it to the ratchet, extension or adaptor as required. Use the ratchet lever to change drive direction for tightening or loosening, and press the release button to remove sockets quickly. For access at angles, fit the universal joint or use the socket extension. Ensure the bit is fully engaged and the pressed-in pin secures the bit socket before applying torque.

Recommendations

Use the tool set for hand-operated tasks only; avoid applying impact or pneumatic forces. Keep tools clean and lightly oiled to reduce corrosion. Store the sockets and bits in the provided case to prevent loss and protect the tools during transport.
