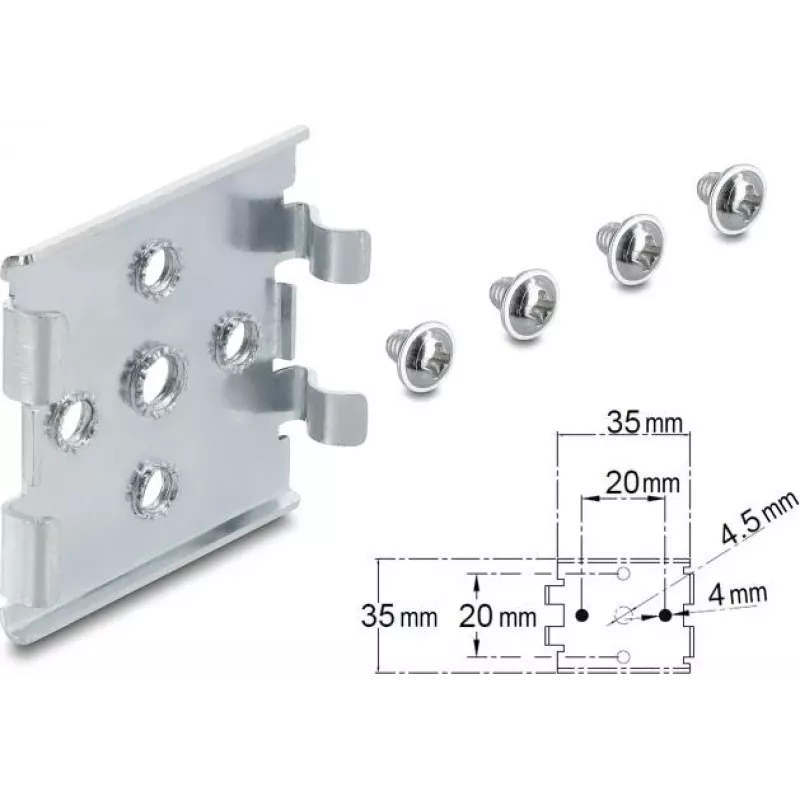

Clipe para calha DIN com 5 furos de fixação, montagem horizontal e vertical, DELOCK 67394

DELOCK DIN rail clip with 5 mounting holes (model 67394) is a compact mounting accessory designed for secure attachment on standard DIN rails. The clip supports both horizontal and vertical installation, providing five evenly spaced fastening points that can hold cables, small devices, terminal blocks or mounting brackets within electrical cabinets, control panels and industrial enclosures. Manufactured to suit common DIN rail profiles, the clip aims to simplify organization and fixation of components where flexible orientation and a stable hold are required.

Advantages

The clip offers dual-orientation mounting, allowing installation in horizontal or vertical alignment on a DIN rail. With five fastening holes, it delivers multiple secure attachment points that help distribute load and reduce stress on individual fasteners. Its compact form factor occupies minimal rail space while enabling tidy cable routing and reliable fixation of small devices. The design is compatible with typical DIN rail systems, facilitating straightforward retrofitting and rearrangement in control cabinets and enclosures.

Suitable for

• Securing bundles of cables or cable clamps inside electrical cabinets
• Mounting small devices, sensors or terminal blocks on DIN rails
• Organizing wiring runs and maintaining neat control panels
• Retrofitting or expanding mounting points in industrial enclosures

Key specifications

• Mounting type: designed for standard DIN rail attachment
• Mounting orientations: supports horizontal and vertical installation
• Number of fastening points: five mounting holes for screws or cable ties
• Application areas: electrical cabinets, control panels, industrial enclosures
• Form factor: compact clip to minimize occupied rail length

How to use

Position the DIN rail clip onto the chosen section of the DIN rail and engage it according to the rail profile until it seats securely. Align devices, cable clamps or brackets with the clip’s fastening holes and secure them using appropriate screws, bolts or cable ties rated for the application. For vertical mounting, ensure the clip is oriented correctly and that fasteners are tightened to provide a stable hold. Verify that the assembled components do not interfere with adjacent modules and that all connections conform to applicable installation standards.

Recommendations

Select fasteners and cable ties of suitable size and strength for the load and environment; avoid overloading the clip beyond the capacity of the rail and fastening hardware. When used in electrical installations, follow relevant safety regulations and ensure proper clearance and insulation where required.
