Adaptador ativo CLUB3D Mini DisplayPort para Dual Link DVI, versão HDCP OFF para Apple Cinema Displays

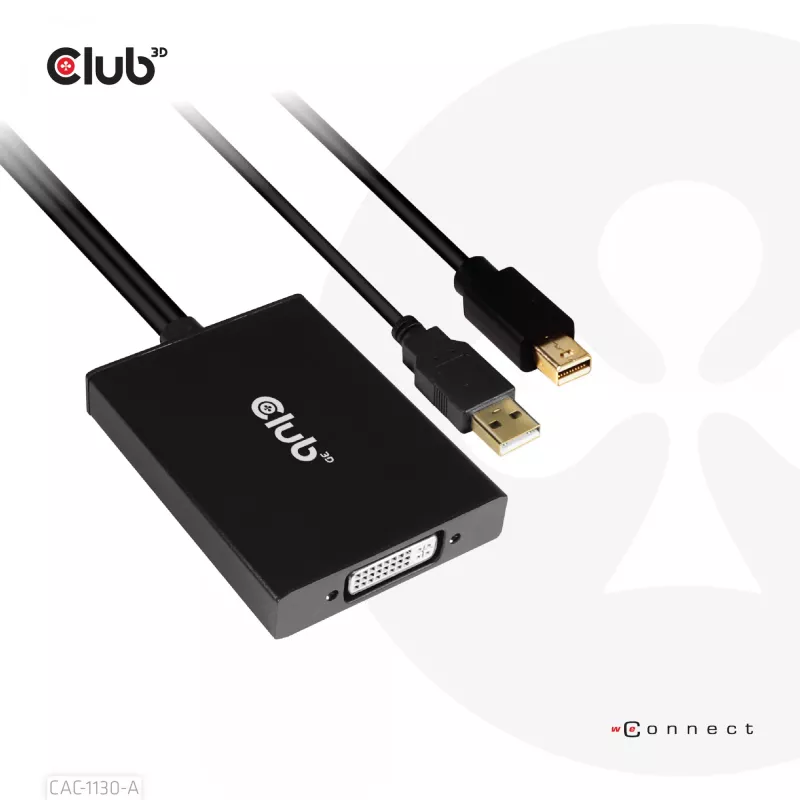

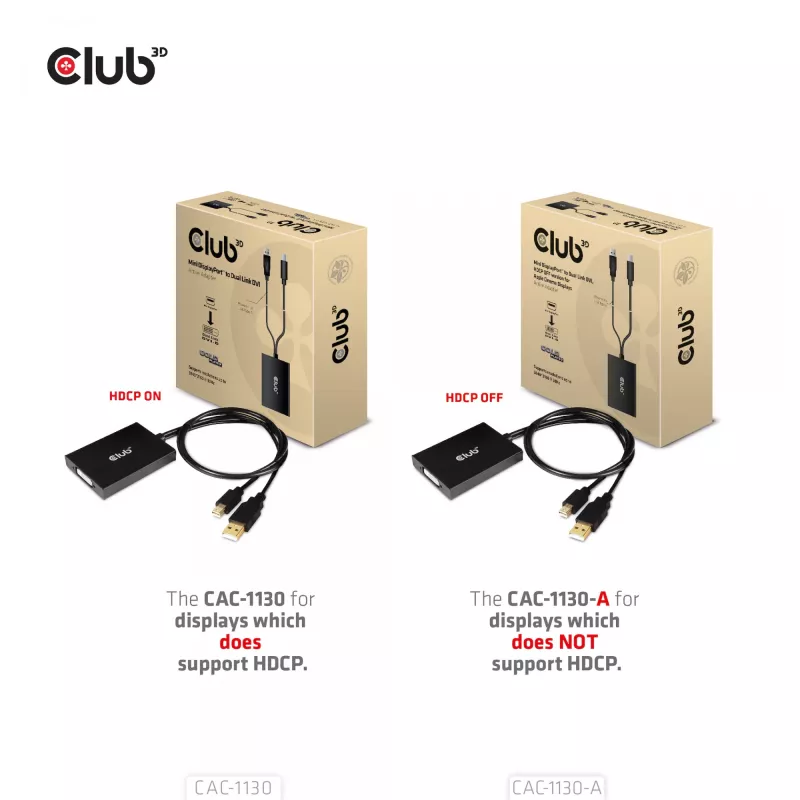

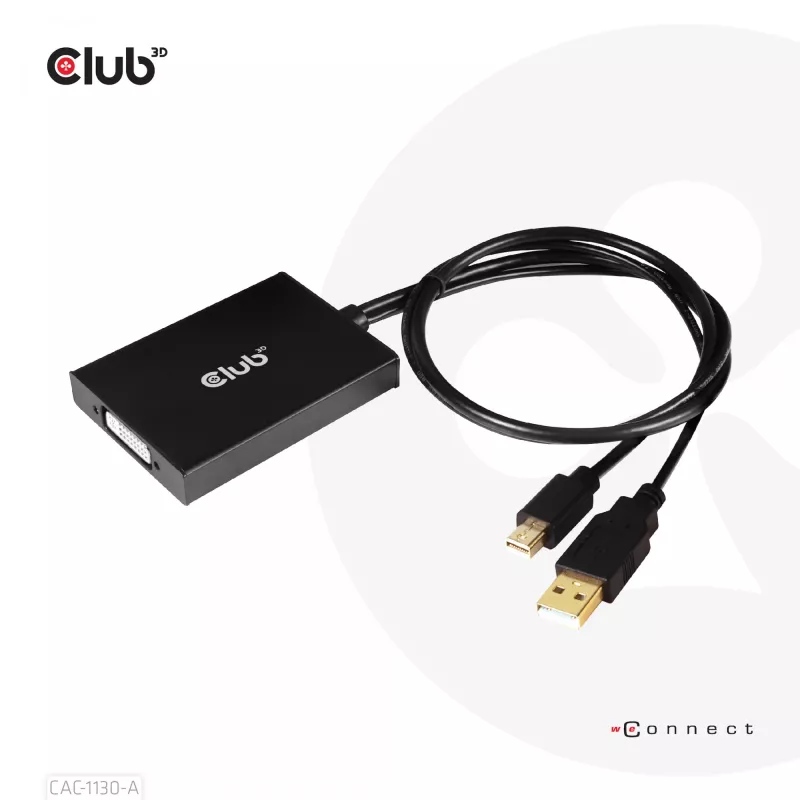

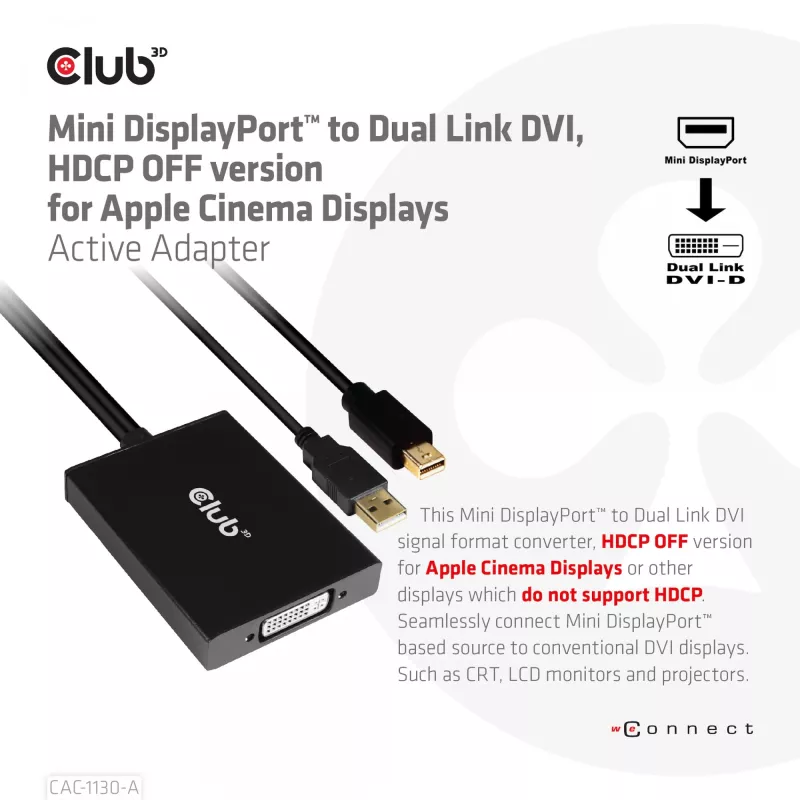

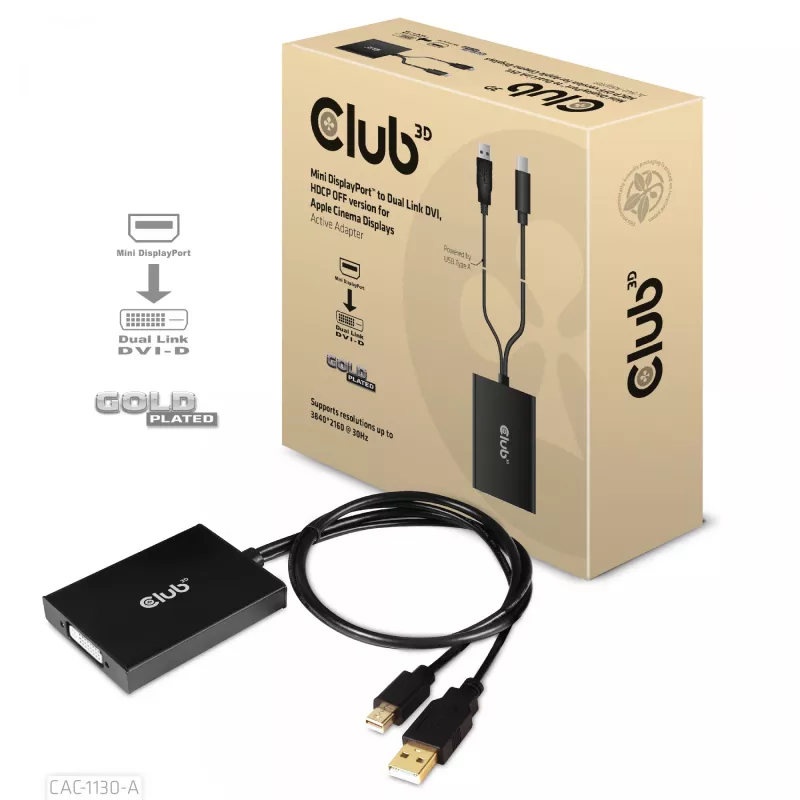

The CLUB3D CAC-1130-A Mini DisplayPort to Dual Link DVI active adapter converts a Mini DisplayPort™ source with a USB Type-A power connection to a Dual Link DVI signal format. It is the HDCP OFF version designed for Apple Cinema Displays and other displays that do not support HDCP, enabling connection of Mini DisplayPort-based devices to conventional DVI displays such as CRTs, LCD monitors and projectors. The adapter supports resolutions up to 2560 x 1440 at 60 Hz and up to 3840 x 2160 at 30 Hz on HDCP OFF capable displays. The compact, lightweight adapter (0.6 m cable length, 109 g) includes a DVI-D connector and a Mini DisplayPort plus USB Type-A for power.

Advantages

This active adapter provides a reliable conversion from Mini DisplayPort to Dual Link DVI, allowing support for high-resolution widescreen displays including Apple Cinema Displays that require Dual Link DVI and do not use HDCP. The included USB Type-A power connection ensures stable operation for dual-link signals. Its compact size and 0.6 m cable length make it suitable for portable setups while maintaining compatibility with a wide range of DVI displays and projectors.

Suitable for

• Connecting Apple Cinema Displays to Mini DisplayPort sources
• Driving Dual Link DVI LCD monitors at 2560 x 1440 @ 60 Hz
• Connecting Mini DisplayPort laptops or desktops to DVI projectors or CRTs

Key specifications

• Model: CLUB3D CAC-1130-A
• Input: Mini DisplayPort™ (plus USB Type-A for power)
• Output: Dual Link DVI-D

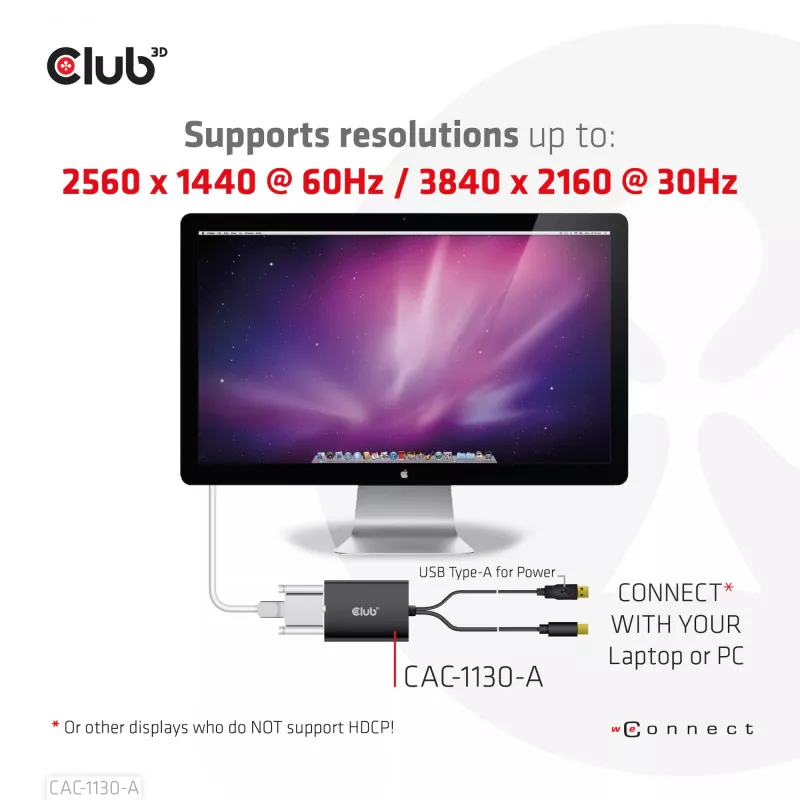

• Supported resolutions: up to 2560 x 1440 @ 60 Hz; up to 3840 x 2160 @ 30 Hz on HDCP OFF displays

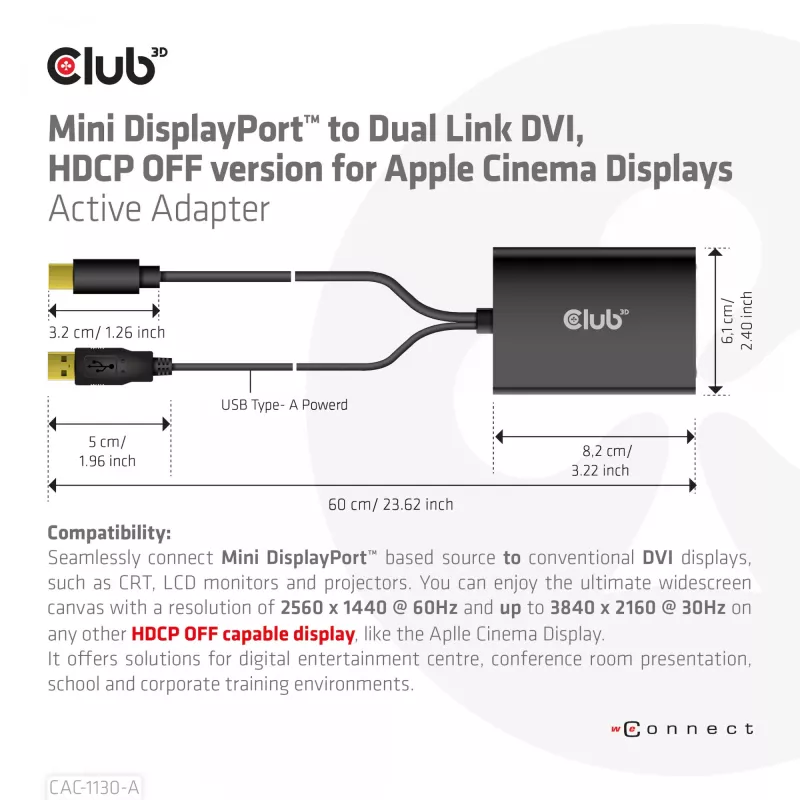

• Cable length: 0.6 m
• Weight: 0.109 kg
• Colour: Black

How to use

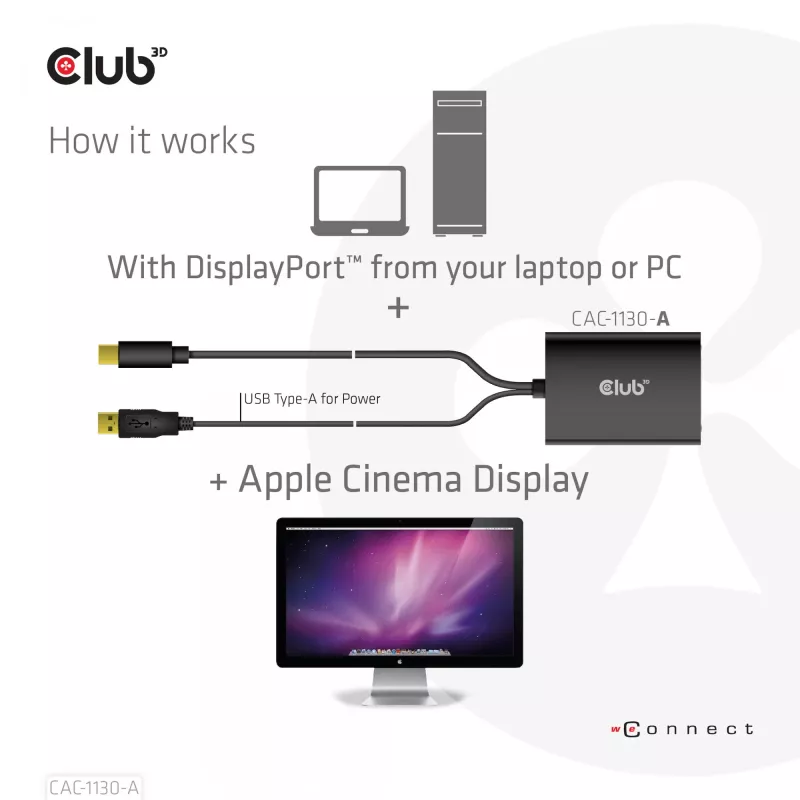

Connect the Mini DisplayPort plug to the Mini DisplayPort output of your source device. Plug the DVI-D connector into the Dual Link DVI input of the display. Connect the USB Type-A plug to a USB power port on the source device or an external USB power supply to ensure sufficient power for Dual Link operation. After connections are made, select the DVI input on the display and configure the output resolution on the source to match the target display's supported resolution.

Recommendations

For optimal results, use the adapter with displays that are HDCP OFF capable (for example Apple Cinema Displays). Ensure the USB Type-A power connection is attached when using high resolutions or Dual Link DVI modes. If the display does not show an image, verify source display output settings and try a different USB power source.
