CLUB3D Hub USB Type C 3.2 Gen 1 Multi Stream Transport (MST) DisplayPort 1.4 três monitores

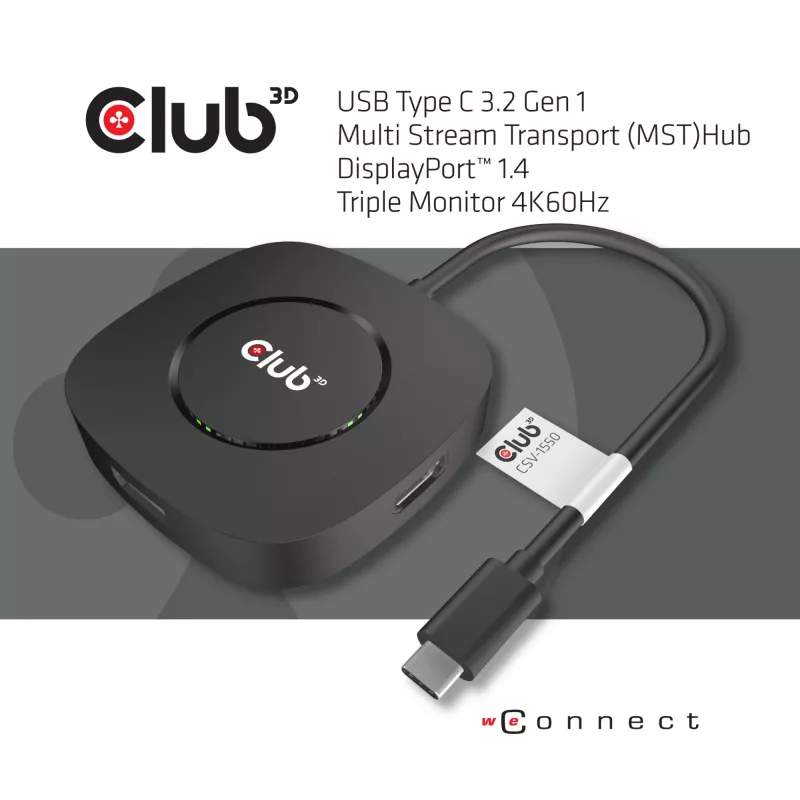

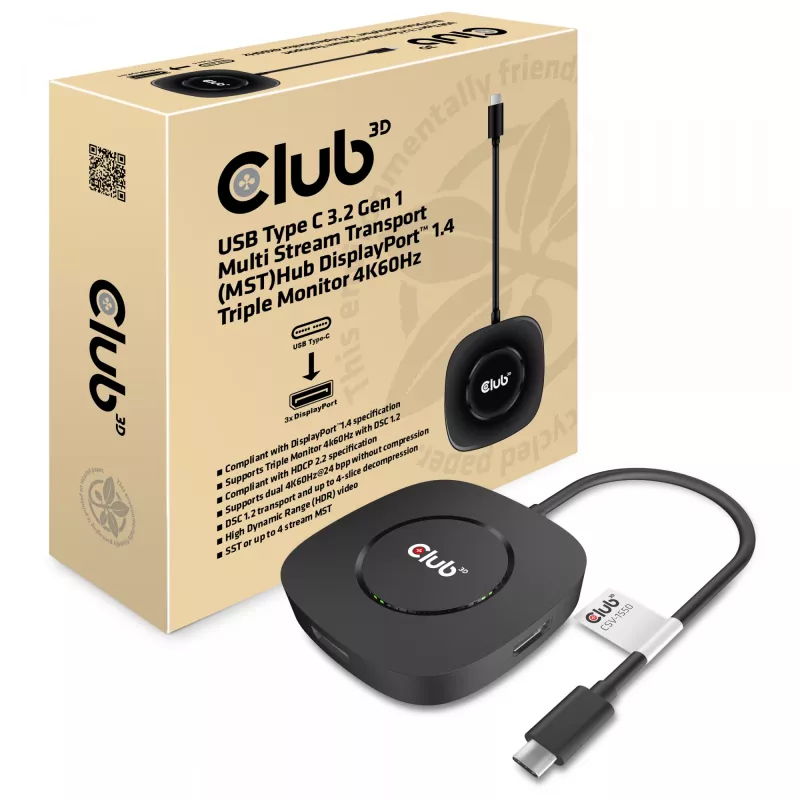

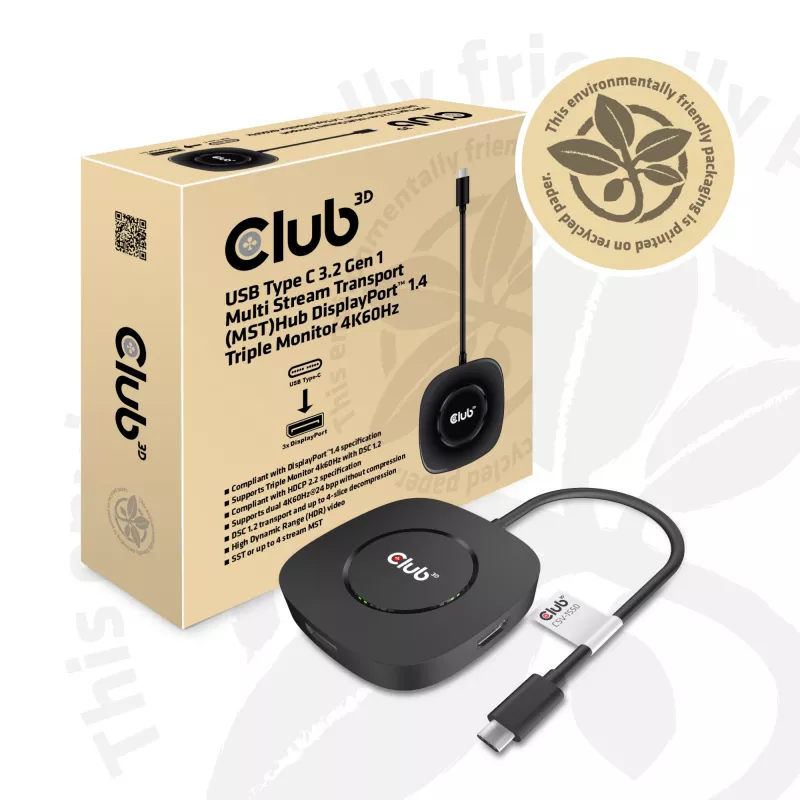

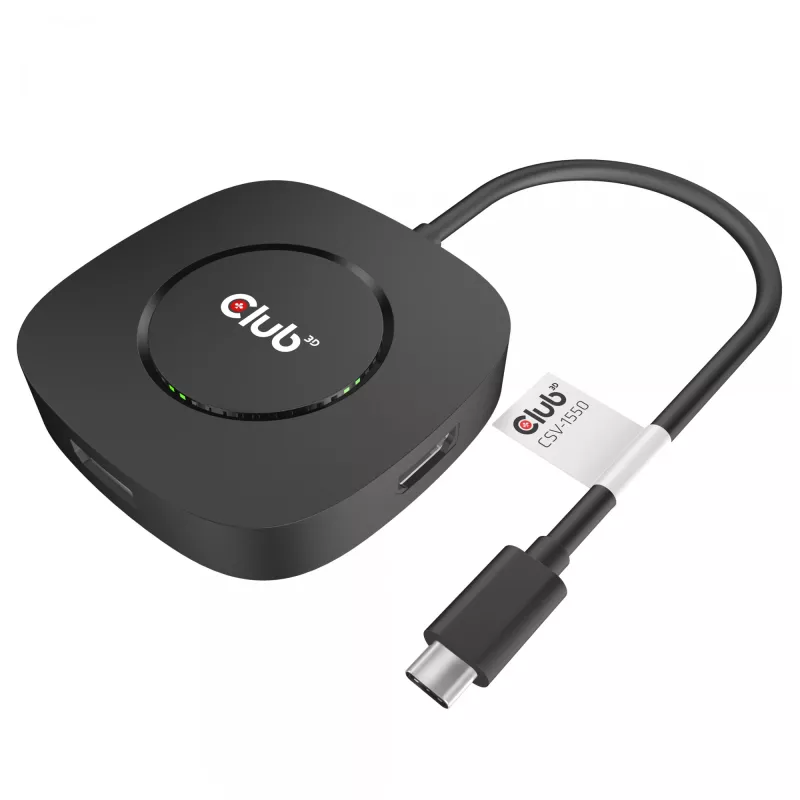

The CLUB3D USB Type C 3.2 Gen 1 MST Hub (CSV-1550) is a compact multi-stream transport hub that lets a compatible host with DP Alt Mode output drive up to three external monitors via DisplayPort 1.4. It supports extending or mirroring the desktop across three displays, providing a wide workspace for multitasking. The hub is bus-powered through the USB Type-C 3.2 Gen 1 connection and comes in a compact black enclosure with a short integrated cable.

Advantages

This MST hub supports DisplayPort 1.4 with DSC 1.2 to enable triple-monitor setups at high resolutions and refresh rates where supported by the host GPU and connected displays. It provides a portable and simpler alternative to a full docking station, requires no external power, and is compatible with systems that output DP1.2/1.4 over USB-C. The device’s small size and black finish make it easy to carry and integrate into different work environments.

Suitable for

• Extending a laptop desktop across two or three external monitors
• Multitasking workflows such as document editing, spreadsheets and web research
• Commercial displays and point-of-sale setups that require multiple screens
• Gaming systems or workstations with DP Alt Mode support on the USB-C port

Key specifications

• Model: CLUB3D CSV-1550
• Interface: USB Type-C 3.2 Gen 1 (DP Alt Mode), DisplayPort 1.4 outputs
• MST (Multi-Stream Transport) support with DSC 1.2
• Maximum monitors: 3 (triple monitor configuration)

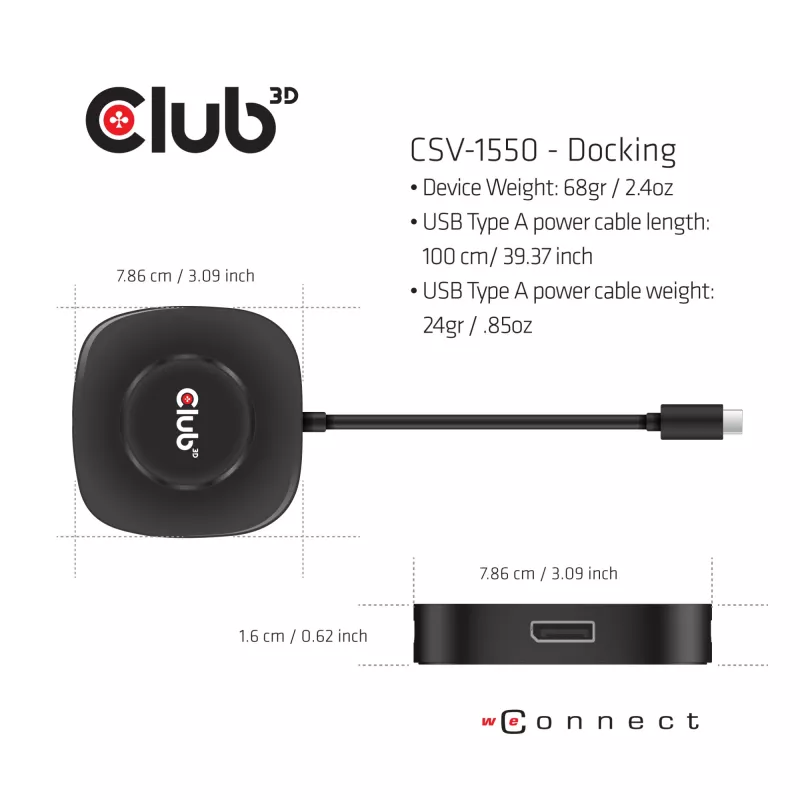

• Cable length: 0.13 m (integrated)
• Color: Black
• Weight: 0.068 kg
• Brand: club 3d
• EAN: 8719214471422

How to use

Connect the hub’s USB-C 3.2 Gen 1 plug to a host device that supports DisplayPort Alt Mode (DP1.2/1.4). Use DisplayPort cables to connect up to three monitors to the hub’s DisplayPort outputs. Configure the displays in the operating system display settings to extend or mirror the desktop as required. Ensure the host GPU and displays support the desired resolutions and refresh rates; DSC 1.2 may be used where available to achieve higher combined bandwidth.

Recommendations

For best results, use with a host device that explicitly supports DP1.4 over USB-C and ensure DisplayPort cables and monitors support the target resolution/refresh rate. If experiencing bandwidth limits, adjust display resolutions or enable DSC where supported. The hub is bus-powered; for stable multi-monitor performance, connect to a host with sufficient USB-C power output and a compatible graphics controller.
