Splitter HDMI CLUB3D 1 para 8 Full 3D e 4K60Hz (600MHz)

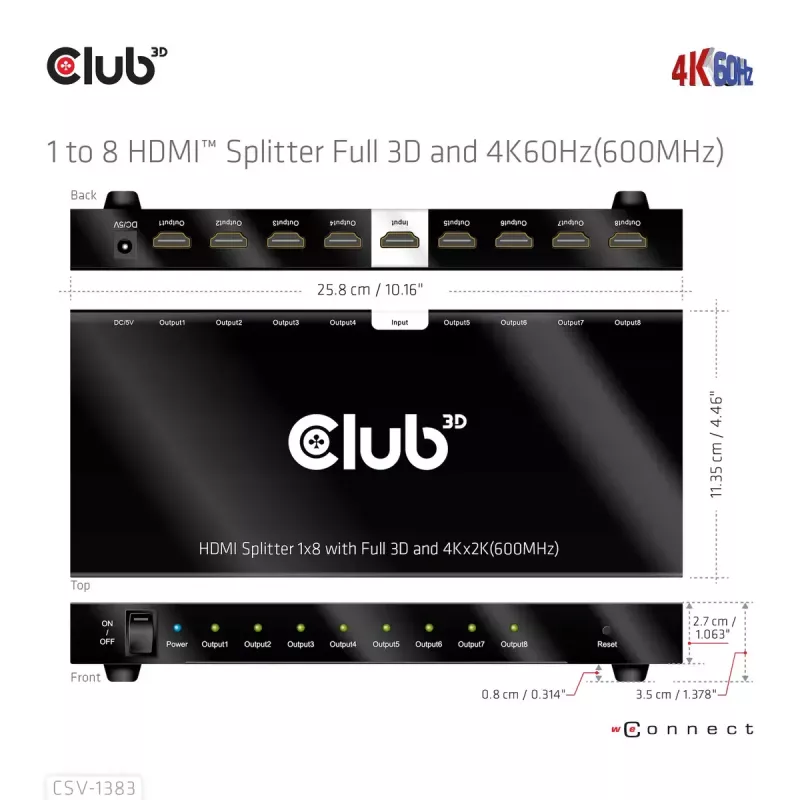

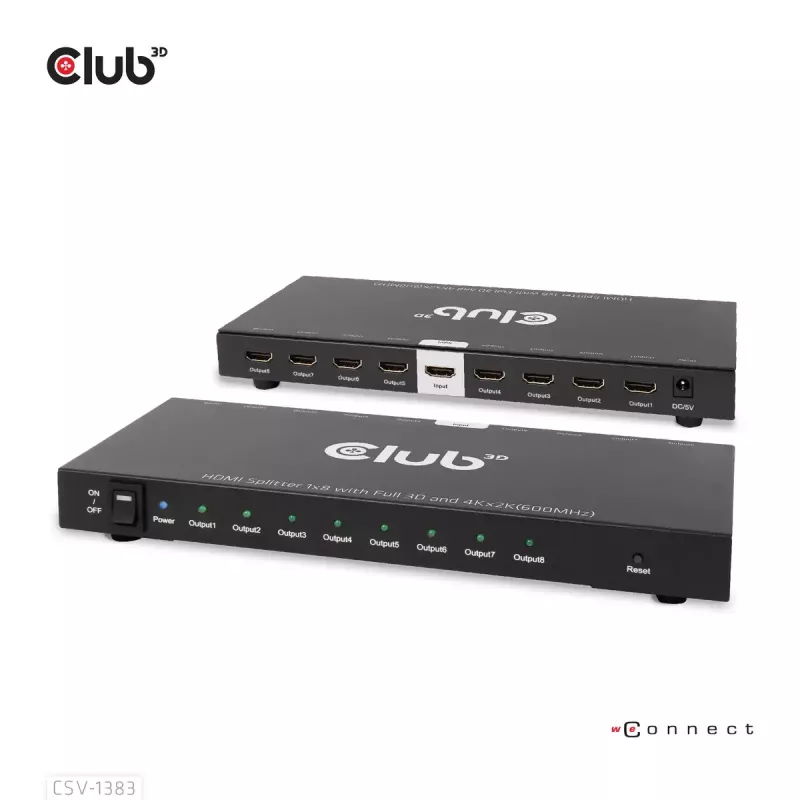

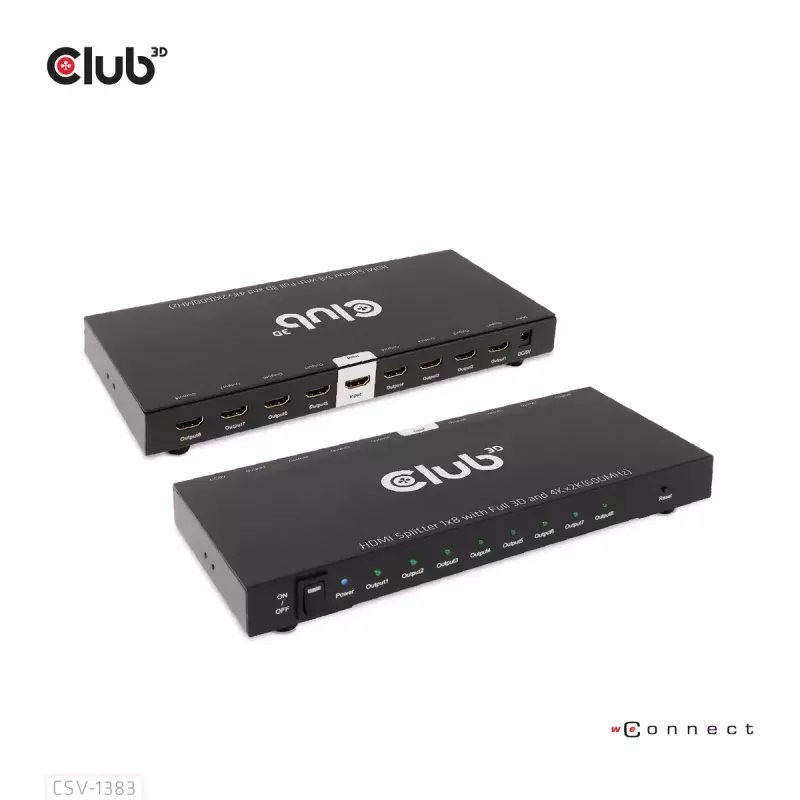

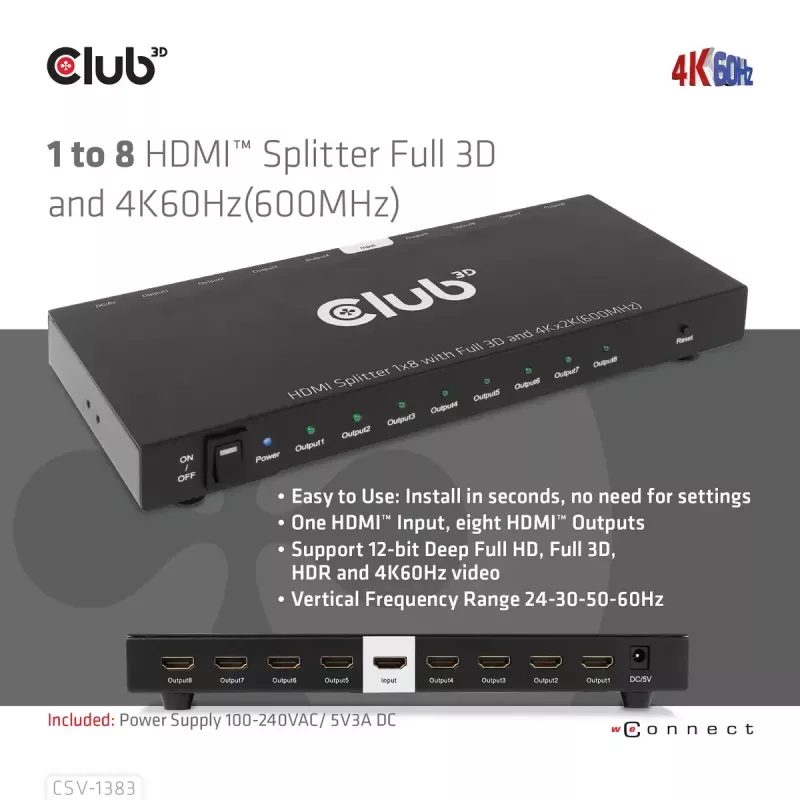

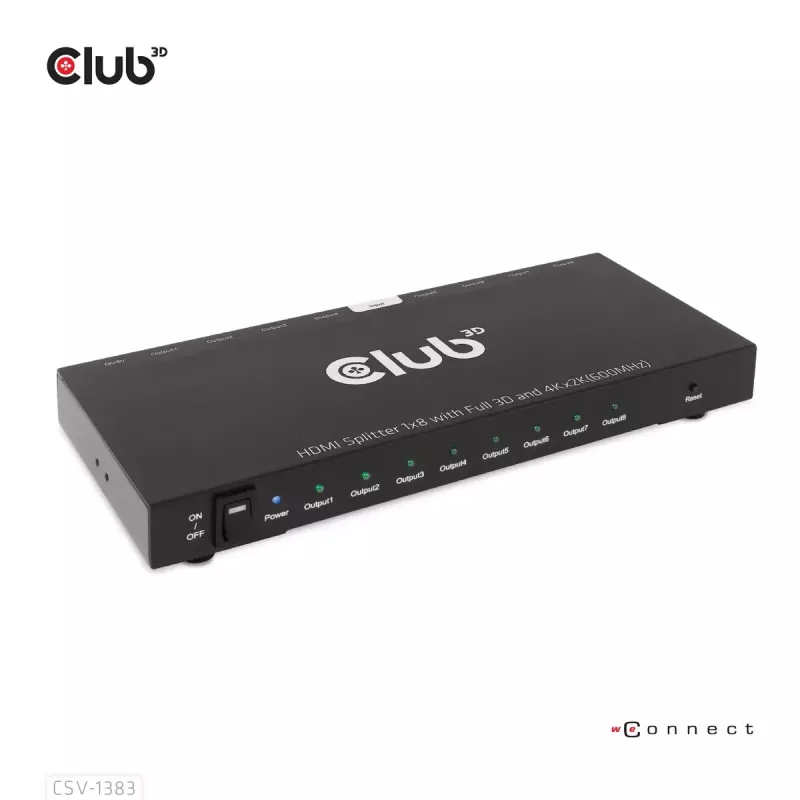

The Club 3D CSV-1383 is a compact, high-performance 1-to-8 HDMI™ Ultra High Definition splitter in a metal housing. It takes a single HDMI™ input and duplicates the signal to eight identical HDMI™ outputs simultaneously, supporting video up to 4K@60Hz and a bandwidth of up to 6Gbps/600MHz. The unit includes an external 100-240VAC to 5V/3A DC power supply and has a maximum power consumption of 11.3 W.

Advantages

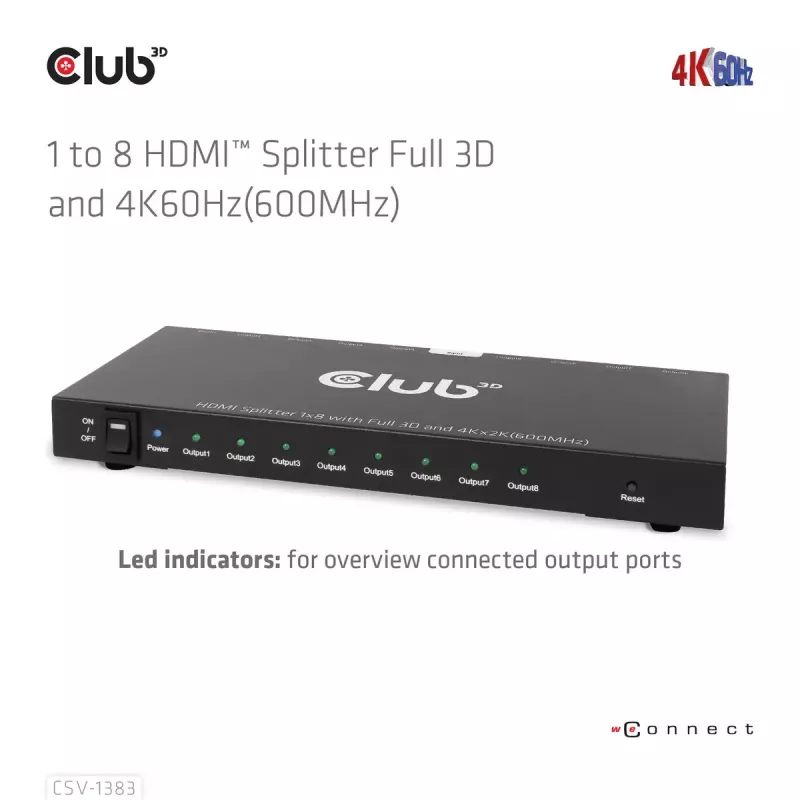

The CSV-1383 provides reliable audio and video distribution with support for 12-bit deep color, Full 3D formats, HDR and HDCP 2.2. Its metal casing and built-in power protection reduce the risk of damage from incorrect voltages, while plug-and-play operation requires no software or configuration. Its compact size and nine HDMI ports (one input, eight outputs) make it suitable for installations where multiple identical displays are needed.

Suitable for

• Home theatre systems with multiple screens
• Retail digital signage and display walls
• Conference rooms and meeting facilities
• Classroom or training setups requiring identical output
• Events and exhibitions with distributed HDMI sources

Key specifications

• Model: Club 3D CSV-1383

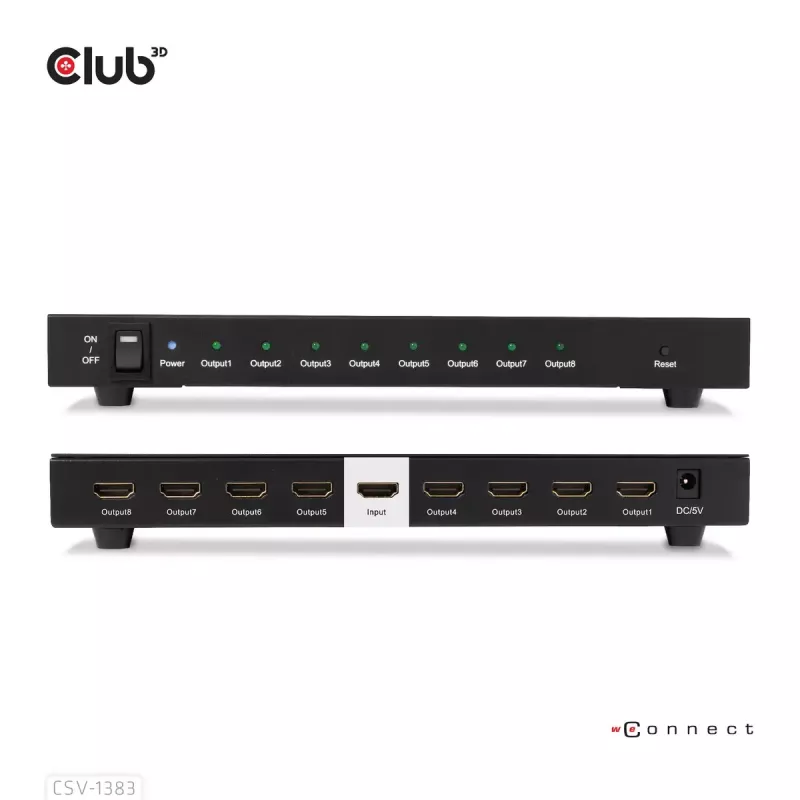

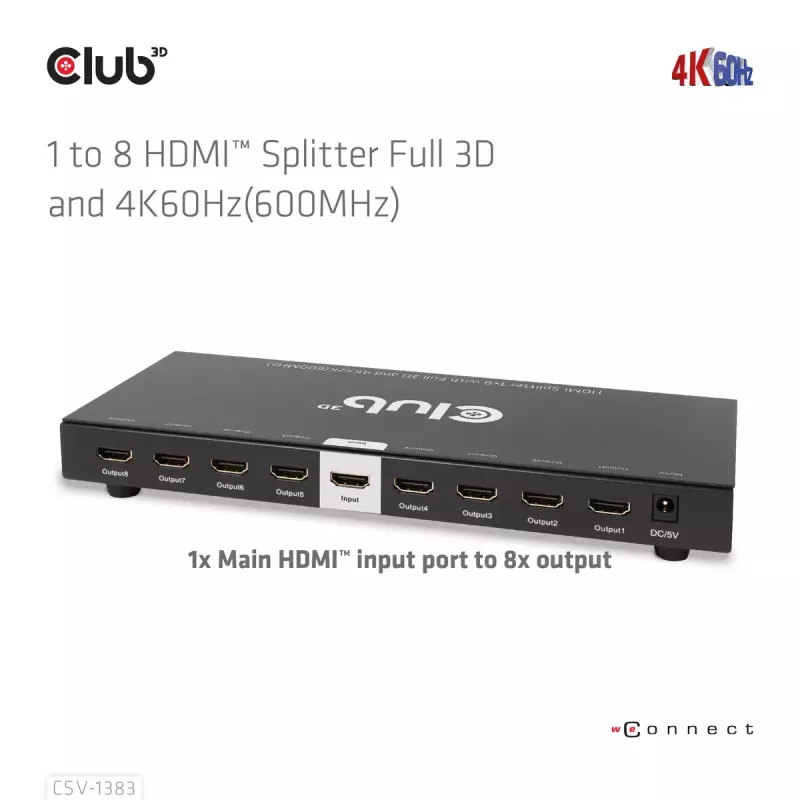

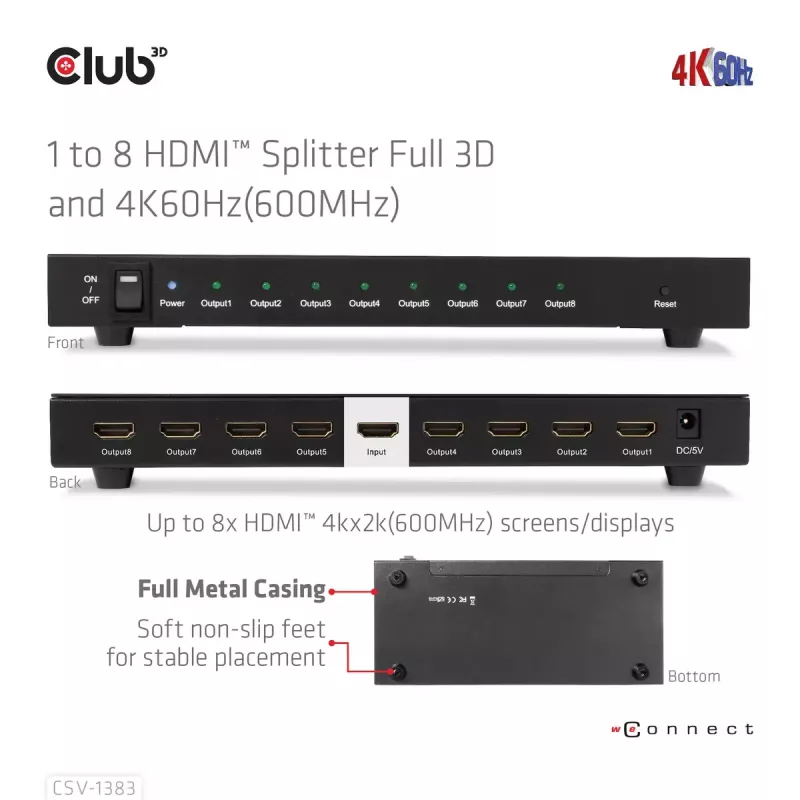

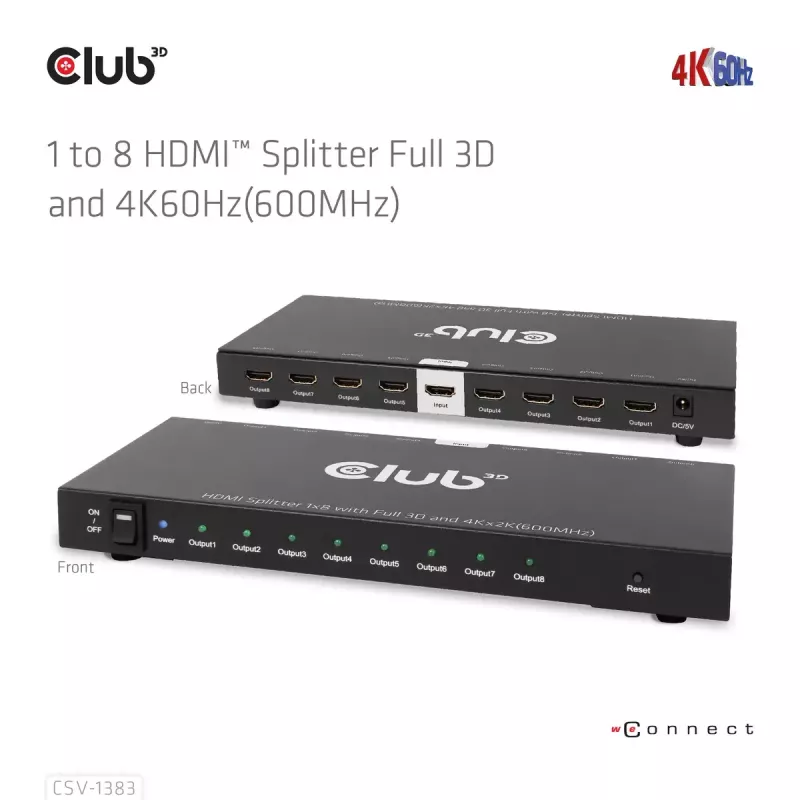

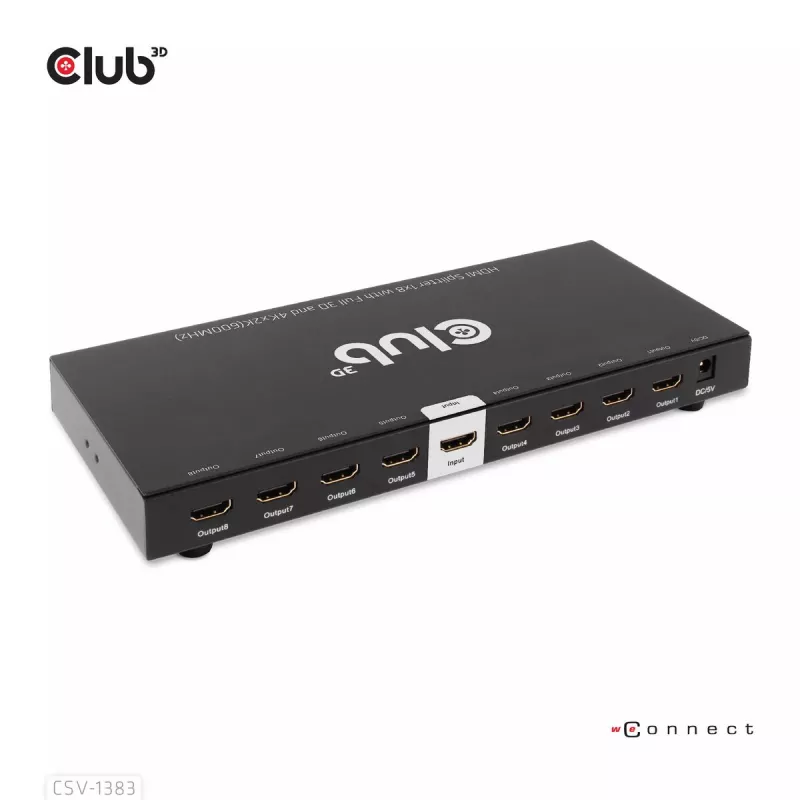

• Input / outputs: 1 HDMI input, 8 HDMI outputs (9 HDMI ports total)
• Maximum resolution: up to 4K@60Hz (3840 x 2160)
• Bandwidth: up to 6Gbps / 600MHz

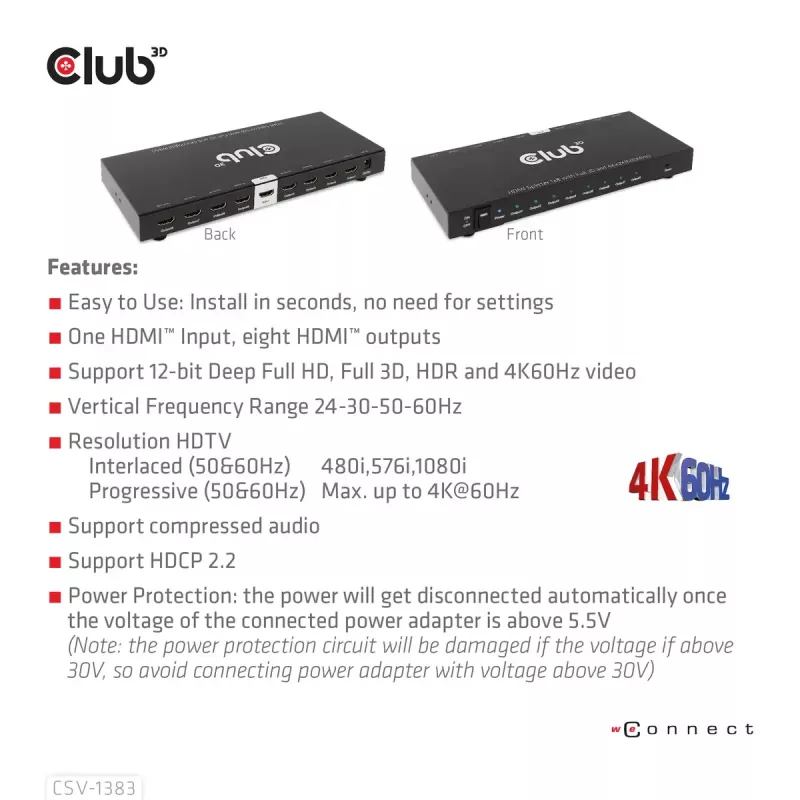

• Supported features: 12-bit deep color, Full 3D, HDR, HDCP 2.2
• Vertical frequency: 24 / 30 / 50 / 60 Hz
• Supported resolutions: interlaced 480i, 576i, 1080i; progressive up to 4K@60Hz
• Power supply: external 100-240VAC → 5V DC / 3A
• Power consumption (max): 11.3 W

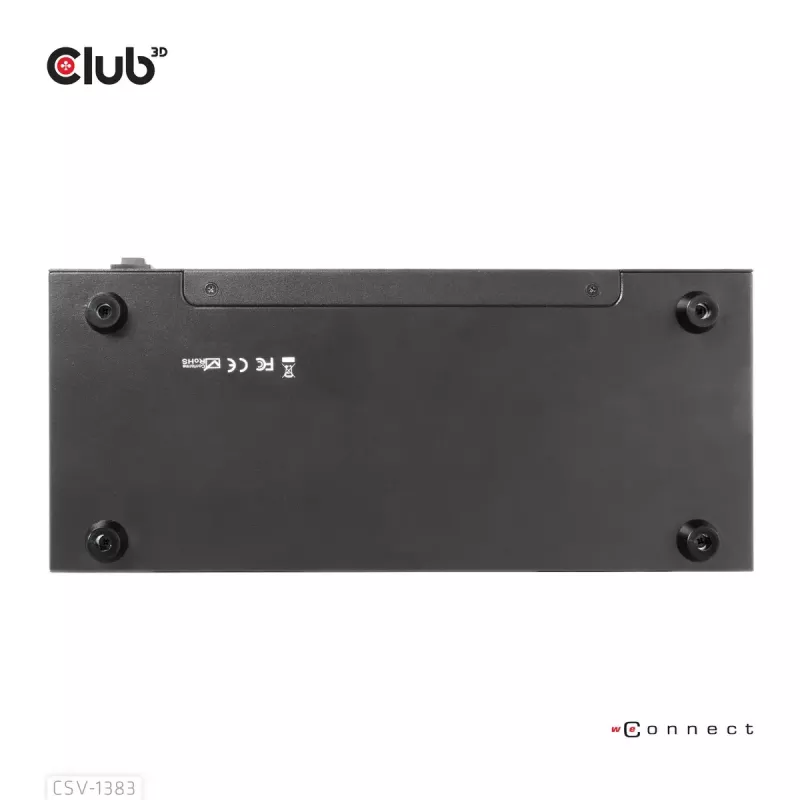

• Housing: metal (iron)
• Colour: black
• Weight: 0.77 kg

How to use

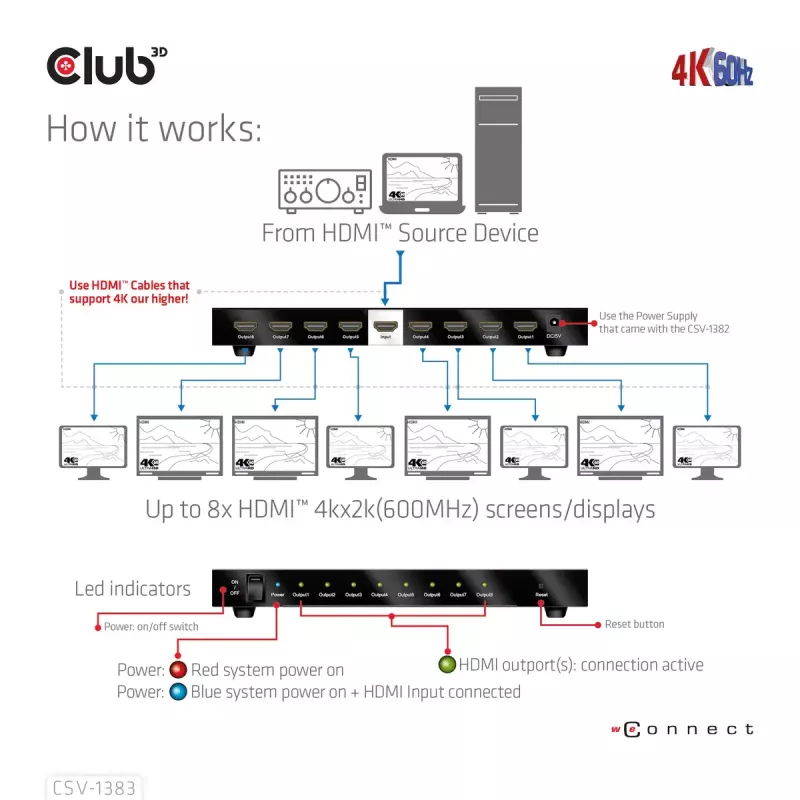

Connect the source device (for example a media player or PC) to the HDMI input of the CSV-1383 using an HDMI cable. Connect up to eight displays to the HDMI outputs using HDMI cables rated for the desired resolution. Plug the external power adapter into a 100–240 VAC mains outlet and attach it to the splitter. The device operates in plug-and-play mode without additional settings; displays should automatically receive the duplicated HDMI signal.

Recommendations

Use HDMI cables rated for 4K@60Hz and ensure the external power adapter provides stable 5V DC. The splitter includes a voltage protection circuit that disconnects power automatically if the adapter voltage exceeds 5.5V; do not connect adapters with voltages above 30V to avoid damaging the protection circuit. For best results with HDR and HDCP 2.2 content, use compatible source devices and displays.
