Comando SBOX KON.RF-M (SBOX) — modelo KON.RF-M, comando sem fios para dispositivos SBOX

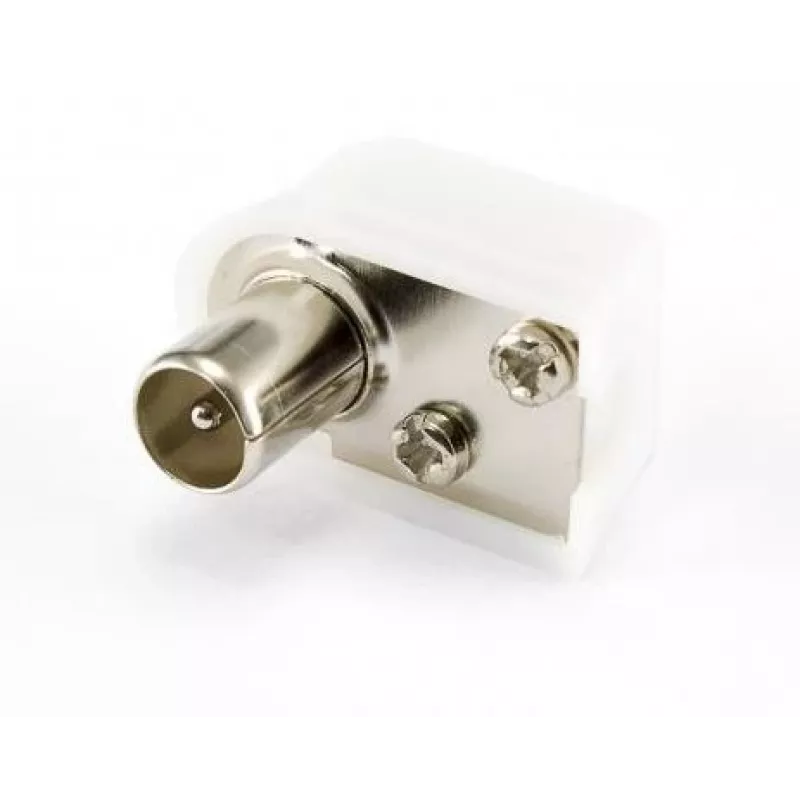

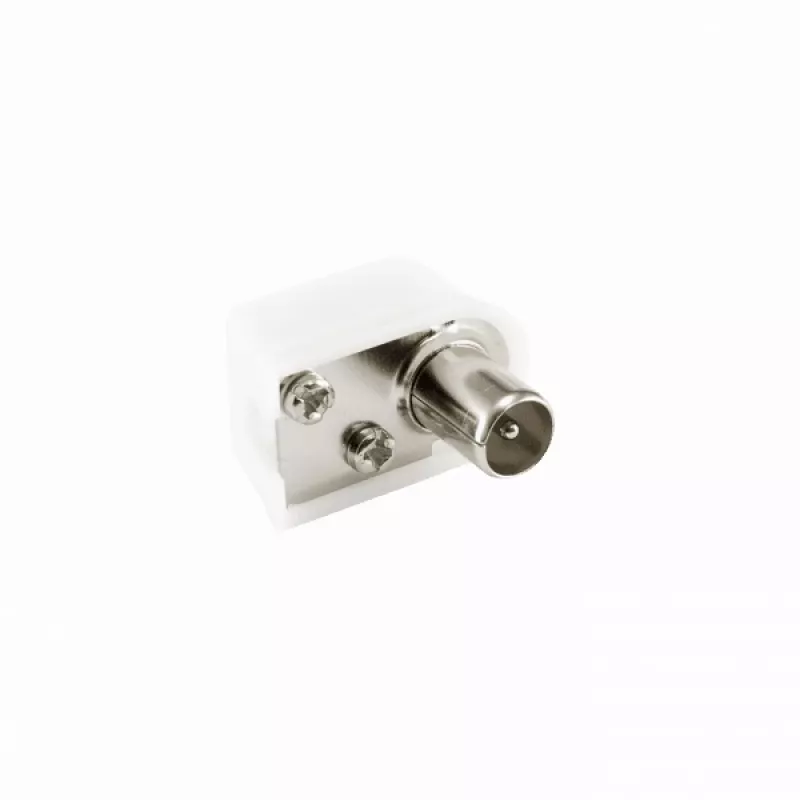

Coaxial connector RF 90° male made of zinc with a 75 Ω impedance and a connector diameter of 9.5 mm. The connector is finished in white and designed for right-angle coaxial cable connections where space constraints require a low-profile male RF termination.

Advantages

The zinc construction provides mechanical durability while maintaining a compact form factor. A 75 ohm impedance matches common coaxial installations for audio/video and signal distribution. The 90° orientation reduces cable strain in tight spaces and the 9.5 mm connector size is compatible with standard coaxial sockets requiring a male right-angle termination.

Suitable for

• Connecting coaxial cables to televisions and set-top boxes in confined locations
• Audio/video signal distribution in home entertainment systems
• Repairing or replacing right-angle male RF terminations on coaxial leads

Key specifications

• Material: Zinc
• Impedance: 75 ohm
• Connector dimensions: 9.5 mm
• Orientation: 90° (right angle)
• Color: White

How to use

Strip the coaxial cable to the required length, insert and solder or crimp the conductor and shielding according to the connector type, then securely fasten the connector body to the cable. Insert the male right-angle RF connector into the device socket until it seats firmly. Ensure the connection is tight and test signal continuity before final installation.

Recommendations

Use this 75 Ω right-angle male RF connector where a compact, durable termination is needed. Avoid overtightening and protect the connector from corrosion and mechanical impact; inspect connections periodically to maintain signal quality.
