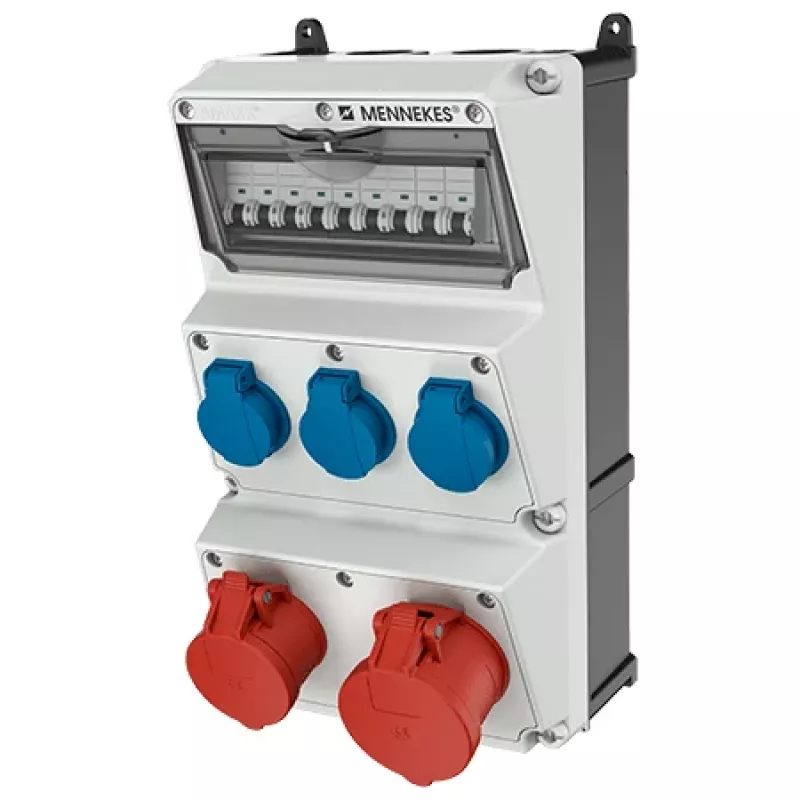

Combinação de tomadas de parede MENNEKES AMAXX 930011, 63 A, IP44, cinzento

Wall-mounted socket combination from the MENNEKES AMAXX series, providing a robust power distribution solution with a total rated current of 63 A. The enclosure is made of polycarbonate in grey (RAL 7035) and offers splash-proof protection (IP44), making it suitable for use in demanding environments.

Advantages

The AMAXX 930011 combines multiple socket types in a single compact unit, reducing installation space and simplifying wiring. It includes a residual current device (RCD) and individual circuit breakers (MCBs) for each socket group, enhancing safety and selective protection.

Suitable for

• Industrial and commercial applications requiring reliable power distribution
• Workshops, garages, and outdoor areas where splash-proof protection is needed
• Installations requiring a combination of CEE and Schuko sockets

Key specifications

• Enclosure type: Wall-mounted socket combination
• Series: AMAXX
• Housing material: Polycarbonate (PC)
• Housing colour: Grey (RAL 7035)
• Protection class: IP44
• Rated current (overall): 63 A
• Rated voltage: 400 V / 230 V
• Input terminal block: Up to 5x 25 mm²
• Cable entry: 1x M32 from top, 1x M32 from bottom (pre-punched)
• CEE socket 32A: 1x CEE socket 32A, 5-pole, 400V, 6h
• CEE socket 16A: 1x CEE socket 16A, 5-pole, 400V, 6h
• Schuko sockets: 2x Schuko sockets 16A, 230V
• Residual current device (RCD): 1x RCD 63A, 4-pole, 30mA, Type A
• Circuit breaker (MCB) CEE 32A: 1x MCB 32A, 3-pole, C-characteristic
• Circuit breaker (MCB) CEE 16A: 1x MCB 16A, 3-pole, C-characteristic
• Circuit breaker (MCB) Schuko: 2x MCB 16A, 1-pole, C-characteristic
• Mounting type: Wall mounting
• Operating temperature range: -25°C to +40°C
• Standards compliance: DIN VDE 0620-1, EN 61439-3, IEC 60309

Recommendations

For professional electricians and facility managers seeking a pre-wired, protected power distribution unit with a mix of CEE and Schuko outlets, the AMAXX 930011 offers a reliable and time-saving solution.
