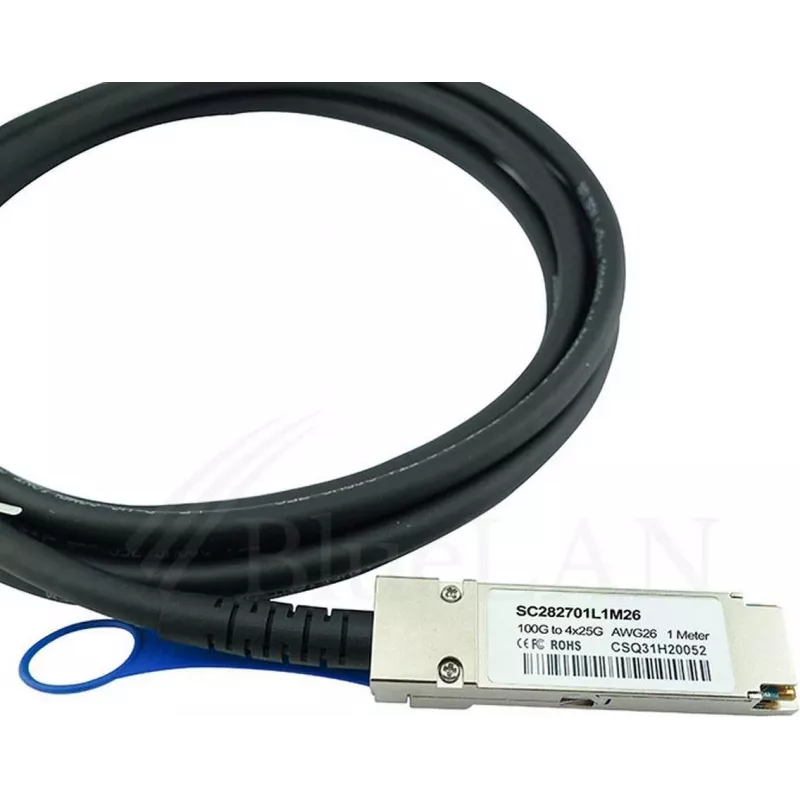

Compatível Extreme Networks 10421 BlueLAN Cabo Breakout Direct Attach Passivo 100GBASE-CR4 QSFP28 para 4x25GBASE-CR SFP28, 1m, AWG26

This high-performance BlueLAN passive Direct Attach Copper (DAC) breakout cable is designed for compatibility with Extreme Networks 10421 series equipment. It provides a cost-effective and reliable solution for high-speed data center interconnects, converting a single 100 Gbps QSFP28 port into four independent 25 Gbps SFP28 links.

Advantages

Ultra-low power consumption (passive design), hot-pluggable, and compliant with SFF-8665 and SFF-8402 standards. The breakout configuration enables efficient utilization of existing 25G infrastructure while upgrading to 100G core connections.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network aggregation and core switching
• Extreme Networks 10421 and compatible QSFP28/SFP28 devices

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Ethernet Standard: 100GBASE-CR4 (A-side), 25GBASE-CR (B-side)
• Length: 1 meter (3.3 feet)
• Wire Gauge: AWG26
• Design: Passive
• Compliance: SFF-8665, SFF-8402
• Hot-Pluggable: Yes
• Material: Copper
• Vendor Compatibility: Extreme Networks

Recommendations

For optimal performance, ensure both ends of the cable are connected to compatible QSFP28 and SFP28 ports. This cable is a third-party compatible alternative to original Extreme Networks 10421 breakout cables.
