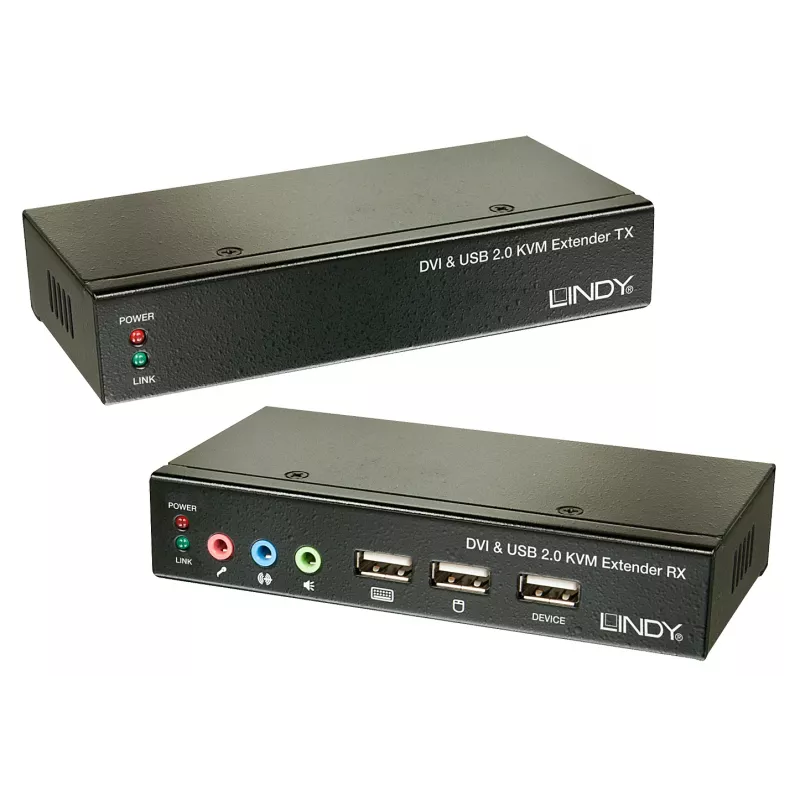

Lindy 39377 Cat.5 KVM Extender Classic, DVI, USB, até 50 m

The Lindy 39377 Cat.5 KVM Extender Classic extends DVI-D, USB and audio signals over two Cat.6 cables up to 50 m. It supports DVI Single Link resolutions up to 1920x1200@60Hz and allows control of a computer from a distance using a USB keyboard and mouse, plus an additional USB 2.0 device.

Key features

• Extends DVI-D, USB and audio signals over two Cat.6 cables up to 50 m
• Supports DVI Single Link resolutions up to 1920x1200
• Supports USB keyboard and mouse plus one additional USB 2.0 device
• Simple, user-friendly installation – no software required
• HDCP support: 1.4
• Audio: 2CH audio, fed in at the transmitter side via USB
• Separate audio ports: 3x 3.5mm (socket)

Specifications

• Brand: Lindy
• MPN: 39377
• Product colour: Black
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: DVI-D
• AV interface: DVI-I
• Console interface: USB
• Interface standard: DVI-D Single Link, USB (HID), USB 2.0
• Supported bandwidth: 165MHz
• Max. range: 50m
• Max. resolution: 1920x1200@60Hz
• Transmission medium: 2x Cat.6

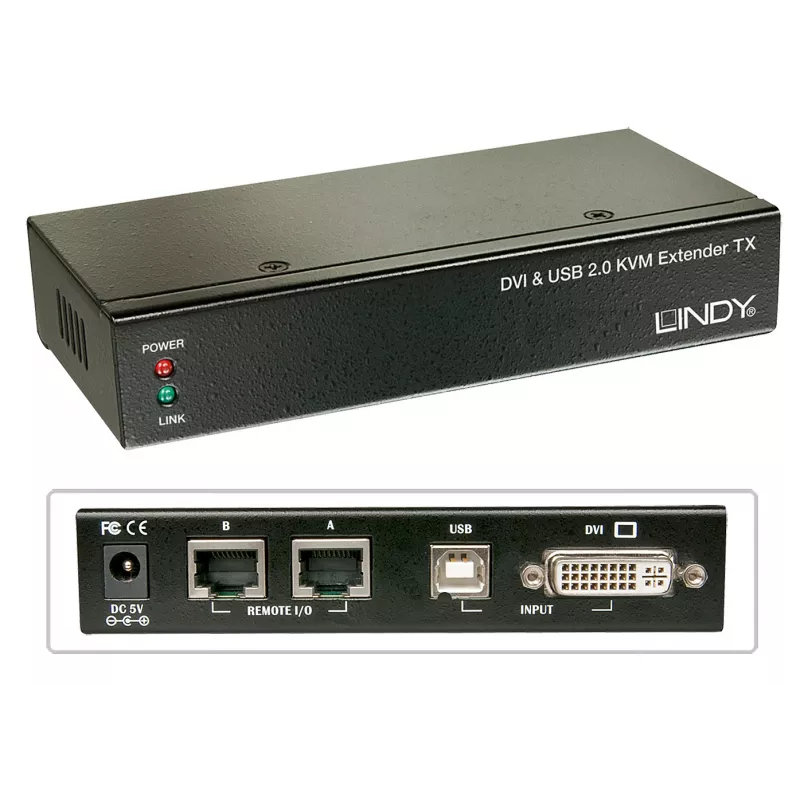

• Transmitter KVM interface: DVI-I (socket), USB Type B (socket)
• Transmitter expansion port: 2x RJ45

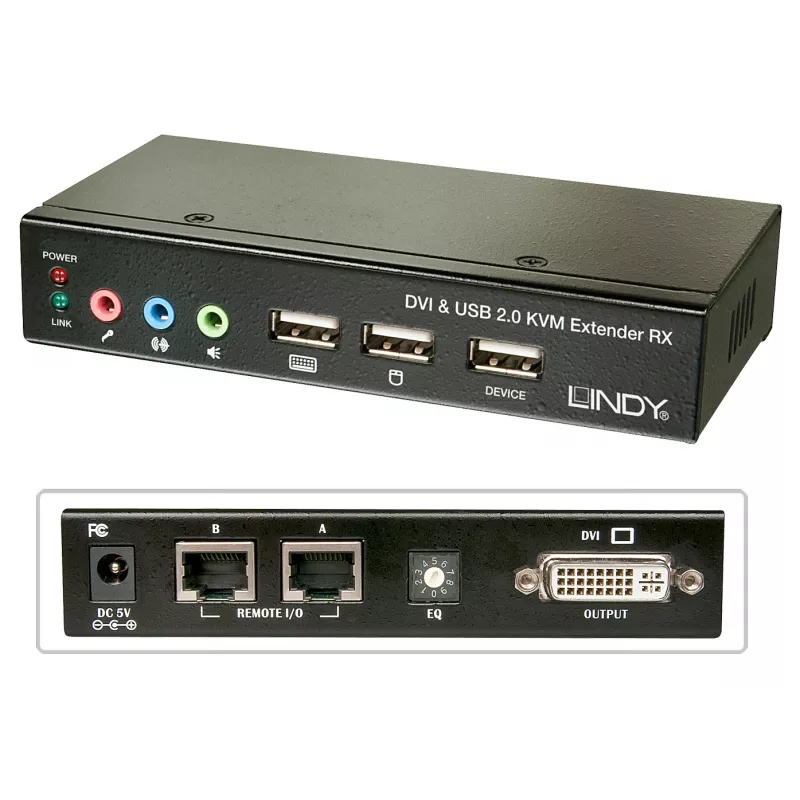

• Receiver console interface: DVI-I (socket), 3x USB Type A (socket), 3x 3.5mm (socket)
• Receiver expansion port: 2x RJ45
• Power supply: DC hollow plug connection, 5.5/2.5mm
• Input voltage: 100-240 V
• Input current: 2 A
• Width: 130 mm
• Depth: 70 mm
• Height: 17 mm
