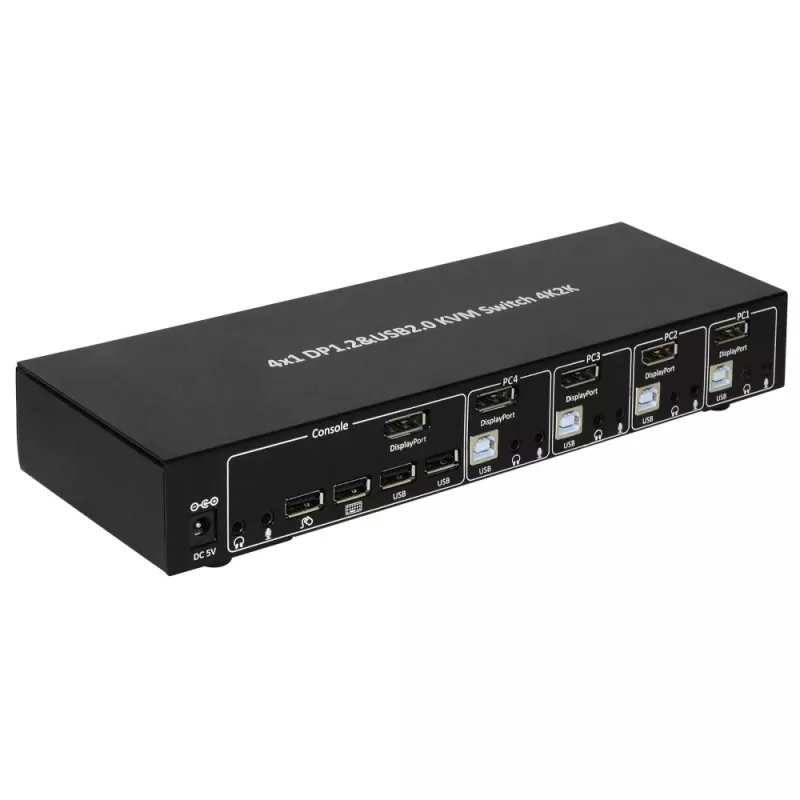

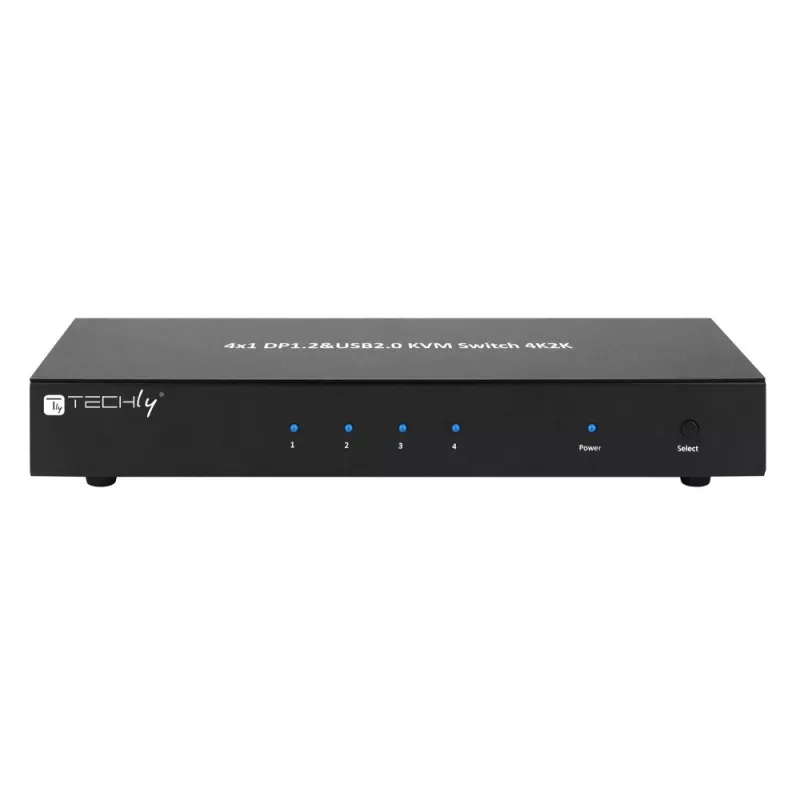

Comutador KVM Techly IDATA DP-KVM4 montagem em rack preto

The Techly IDATA-DP-KVM4 is a 4x1 DisplayPort and USB KVM switch that lets you share a DisplayPort monitor, a USB keyboard and mouse, plus audio and microphone, among four computers. It provides two extra USB 2.0 downstream ports with over-current detection and protection for connecting additional devices. The unit supports resolutions up to 3840 x 2160 at 30 Hz with a video link rate up to 21.6 Gbps and is compatible with Dolby TrueHD and DTS HD Master Audio formats. The metal housing improves RF shielding, and switching between hosts is possible via a front push button or keyboard hotkey. The switch is compatible with a wide range of Windows and macOS systems and is compact and rack-mountable for tidy workspace setups.

Advantages

The Techly IDATA-DP-KVM4 combines DisplayPort video and USB peripheral sharing in a single device, reducing desktop clutter and simplifying multi-computer control. Extra USB 2.0 ports with over-current protection allow safe connection of peripherals. Metal construction enhances electromagnetic shielding and durability. Support for high-resolution 4K video (3840 x 2160 @ 30 Hz) and popular high-definition audio formats ensures broad media compatibility. Multiple switching methods—front push button and hotkey—offer flexible operation.

Suitable for

• Offices requiring control of up to four desktop or workstation computers from one console
• Environments that need shared USB peripherals and audio between multiple systems
• Meeting rooms or control stations where compact, rack-mountable KVM solutions are preferred
• Users working with 4K content at 30 Hz and needing Dolby TrueHD or DTS HD Master Audio passthrough

Key specifications

• Model: TECHLY IDATA-DP-KVM4 (MPN: IDATA-DP-KVM4, EAN: 8051128101935)
• Connections: 4x DisplayPort inputs, USB keyboard/mouse support, audio and microphone sharing
• Additional ports: 2x USB 2.0 downstream ports with over-current detection/protection
• Maximum resolution: 3840 x 2160 @ 30 Hz; video link rate up to 21.6 Gbps
• Audio: Dolby TrueHD and DTS HD Master Audio compatible
• Power: AC input 100–240 V
• Weight: 1.02 kg
• Colour: Black; metal housing for RF shielding

How to use

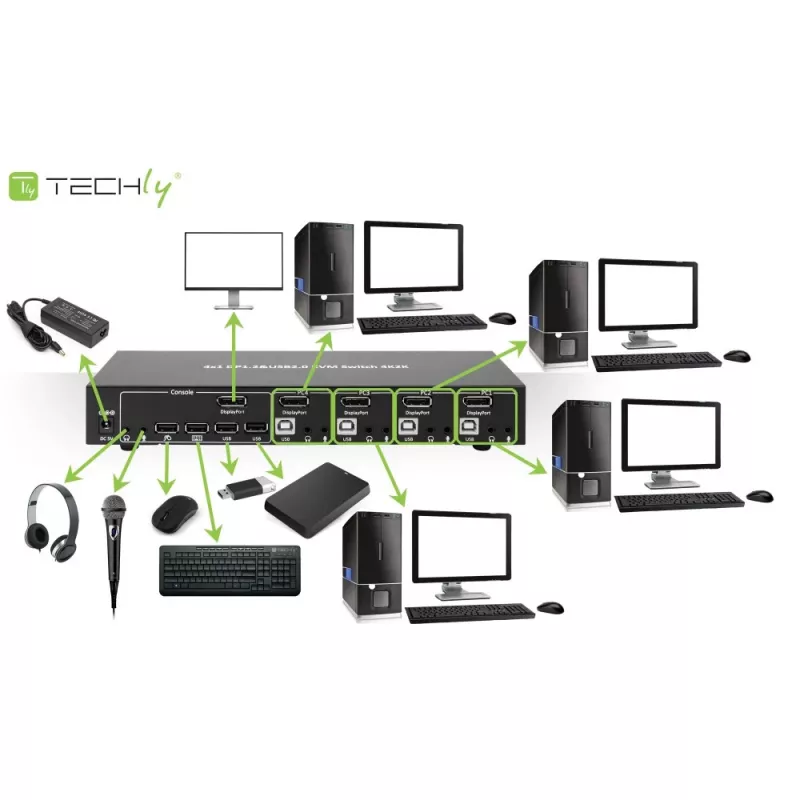

Install the KVM switch in a suitable location or rack mount it, then connect each computer to the DisplayPort and USB console connectors. Attach your keyboard, mouse, monitor, speakers and microphone to the switch’s console ports. Power the unit from the AC source. Switch between connected computers using the front panel push button or the keyboard hotkey sequence as described in the user manual. The extra USB 2.0 ports can be used to connect additional peripherals; the switch will manage over-current situations automatically.

Recommendations

Use high-quality DisplayPort cables rated for 21.6 Gbps to maintain reliable 4K@30Hz video. Ensure connected systems support DisplayPort and the specified audio formats. For stable operation, mount the device in a grounded rack and avoid placing strong RF sources nearby.
