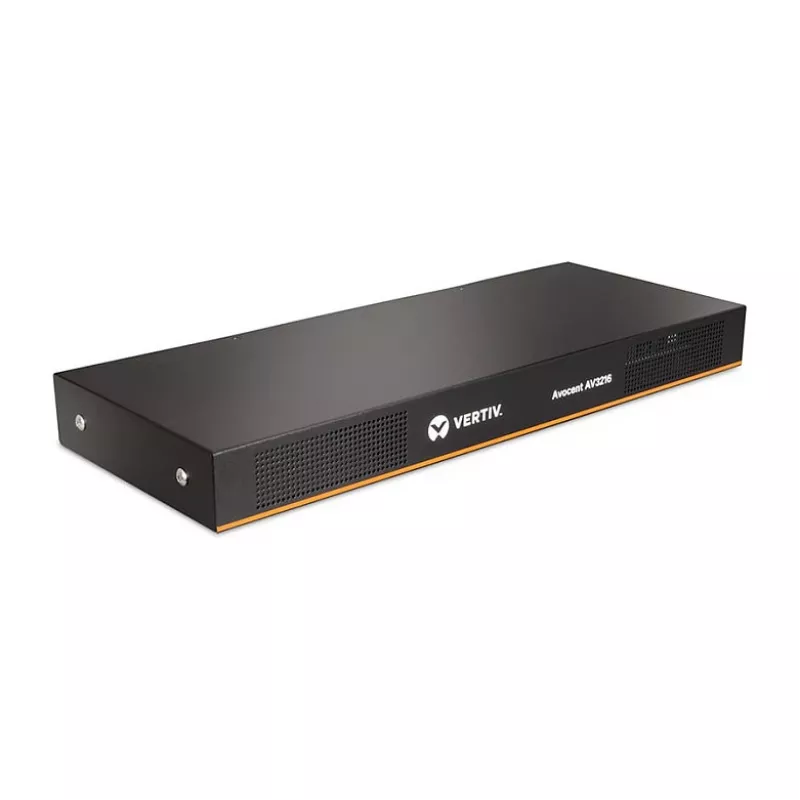

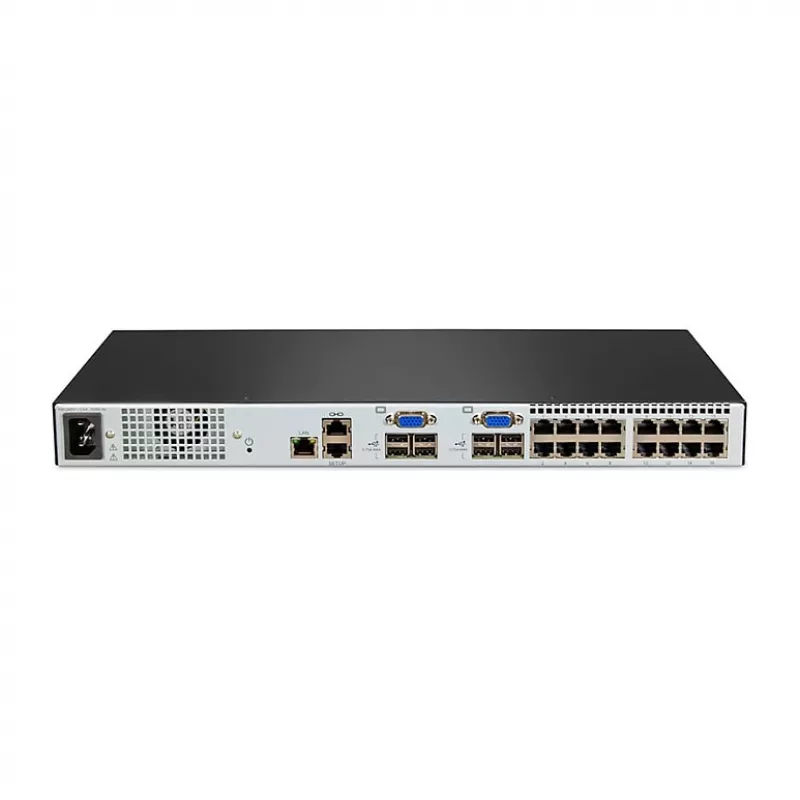

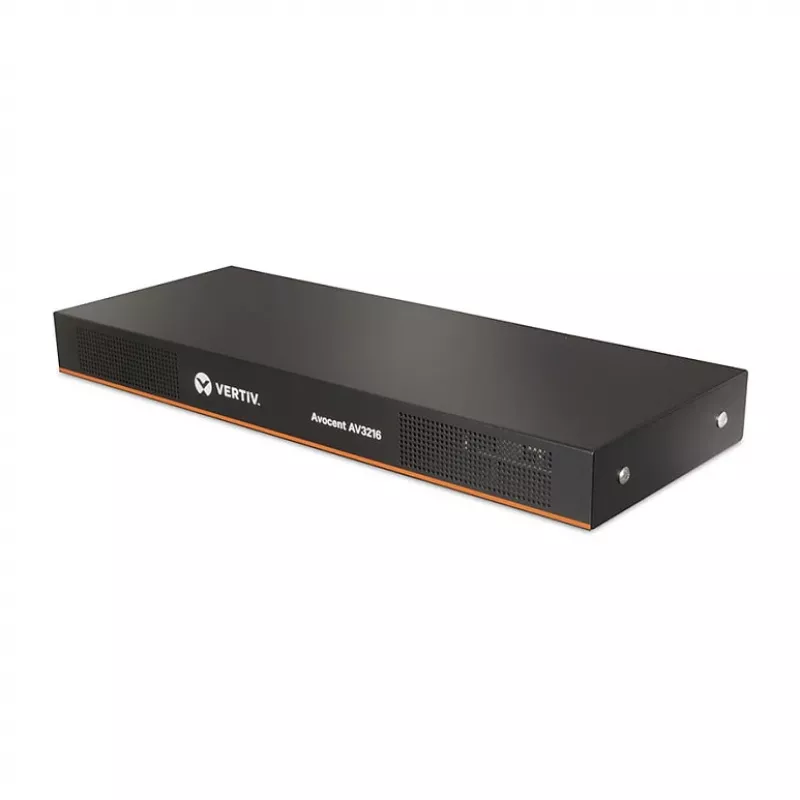

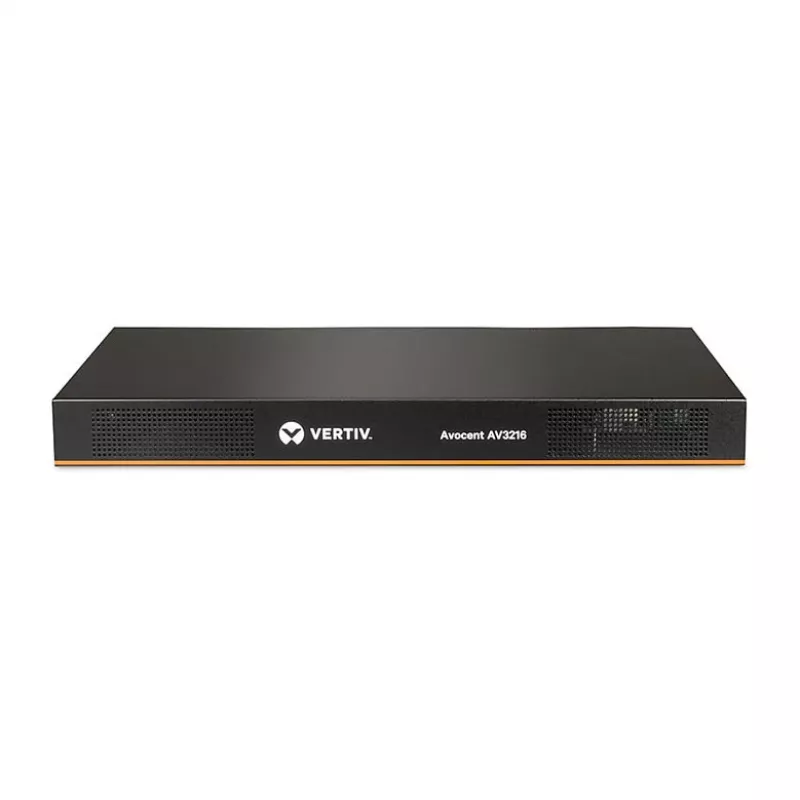

Vertiv Avocent AutoView AV3216 Comutador KVM de 16 portas, 2 utilizadores locais, 1 utilizador IP

The Vertiv Avocent AutoView AV3216 is a 16-port KVM switch with support for two local users and one IP user. It features USB keyboard and mouse ports, an RJ-45 console connection, and 10/100Base-T(X) network technology. The switch supports firmware upgrades and is designed for rack mounting with a 1U rack capacity.

Key features

• 16 KVM ports
• 2 local users, 1 IP user
• USB keyboard and mouse ports
• RJ-45 console connection
• 10/100Base-T(X) network technology
• Upgradable firmware
• Rack-mountable (1U)

Specifications

• Brand: Vertiv
• MPN: AV3216-001
• Number of computers: 16
• Keyboard port type: USB
• Mouse port type: USB
• Console connection: RJ-45
• Ethernet LAN (RJ-45) ports: 1
• Supported security algorithms: 3DES, AES, 128-bit SSL, DES
• Maximum resolution: 1680 x 1050 pixels
• Product colour: Black
• Rack capacity: 1U
• Certification: UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI
• Power source: AC
• Input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 5 A
• Power consumption (typical): 18 W
• Operating temperature: 0 - 50 °C
• Storage temperature range: -20 - 70 °C
• Width: 432 mm
• Depth: 165 mm
• Height: 43.7 mm
• Weight: 2 kg
• Included cables: AC
• Quick installation guide included
• Rack mounting kit included
