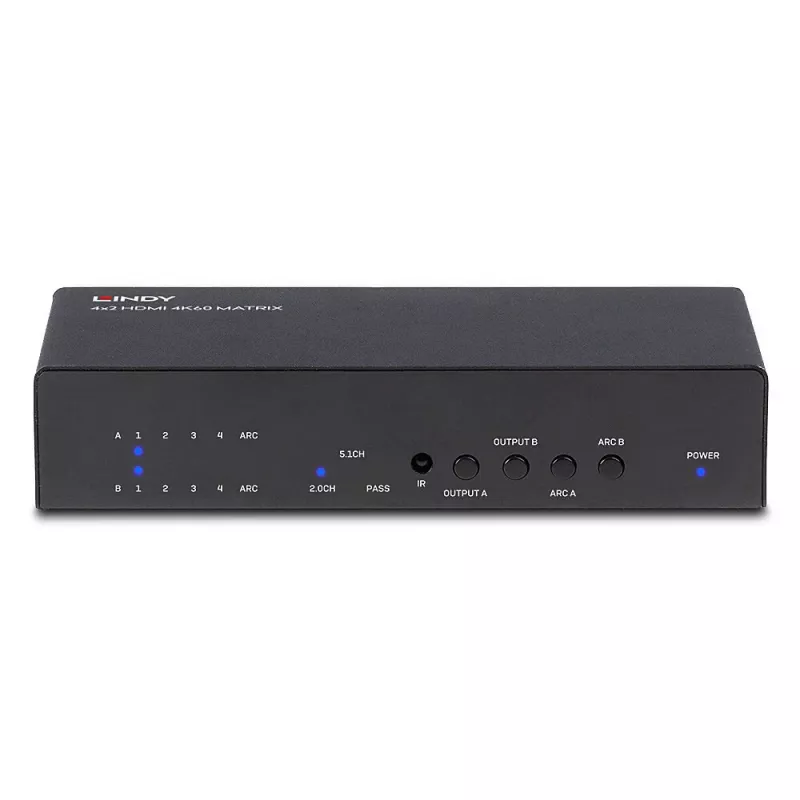

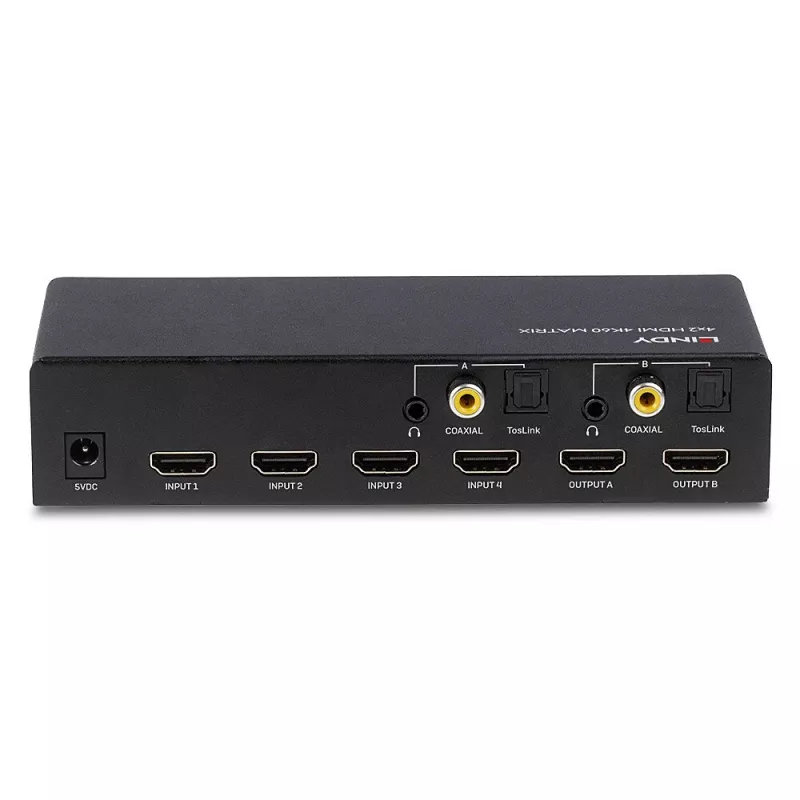

Comutador matriz AV Lindy 4x2 HDMI 4K60 Matrix

The Lindy 4x2 HDMI 4K60 Matrix Switch routes video and audio from up to four HDMI source devices to two HDMI displays simultaneously. It supports HDMI 2.0 18G bandwidth for 4K at 60Hz and adds HDR compatibility. The unit offers audio extraction to Toslink (optical) and 3.5mm analogue output, supports ARC and includes a downscaler function via HDMI Out B. Two connector variants of this model exist; consult the manual to identify your version. The product includes a 2 year warranty.

Advantages

The matrix delivers simultaneous routing to two displays while maintaining 4K60 HDR video quality and HDCP 2.2 compatibility, ensuring reliable playback from modern 4K sources. Integrated optical and 3.5mm audio outputs allow separate connection of soundbars, amplifiers or analogue speakers. Local front-panel buttons and the supplied remote control provide flexible operation for presentations, retail signage or educational setups.

Key specifications

• Inputs: 4 × HDMI
• Outputs: 2 × HDMI (HDMI Out A / HDMI Out B)
• Supported resolution: up to 4K @ 60Hz
• HDR support: yes
• HDMI version / bandwidth: HDMI 2.0 / 18 Gbps
• HDCP: HDCP 2.2 support
• Audio extraction: Toslink (optical) and 3.5 mm analogue
• ARC support: yes
• Downscaler: available via HDMI Out B

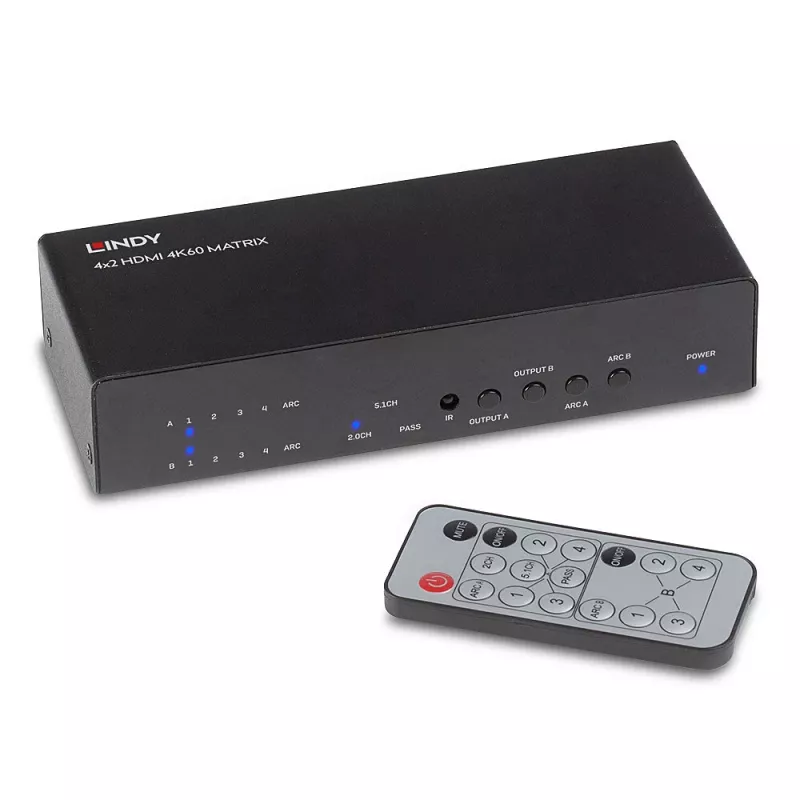

• Control: front-panel buttons and IR remote
• Warranty: 2 years

How to use

Connect up to four HDMI source devices (set-top boxes, Blu‑Ray players, media players) to the HDMI inputs and connect two displays to the HDMI outputs. Use the front-panel buttons or the included remote control to assign sources to each display. If required, enable ARC on the respective HDMI output and connect an audio device to the Toslink or 3.5 mm port to extract audio. Refer to the manual to determine which connector variant your unit has and for detailed setup instructions.

Recommendations

For reliable 4K60 HDR performance use high-quality HDMI 2.0 cables and confirm source and display compatibility with HDCP 2.2. Consult the user manual to identify your connector variant before installation.
