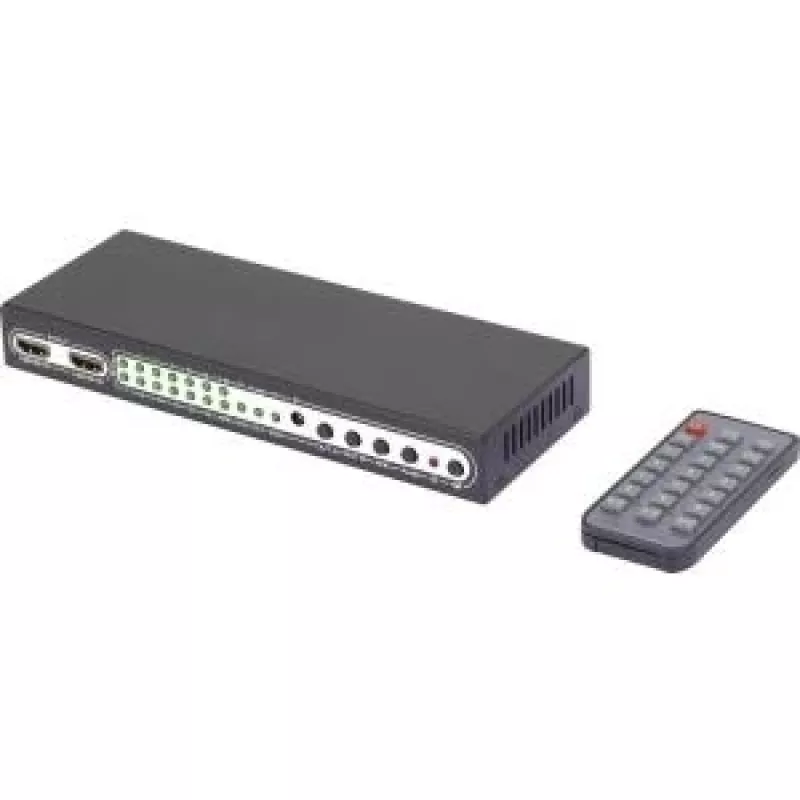

Comutador matriz HDMI SpeaKa Professional 1433365, 6 entradas×6 saídas, função imagem em imagem

SpeaKa Professional HDMI matrix switch 1433365 offers flexible routing of up to six HDMI sources to six HDMI displays with an integrated Picture-in-Picture function. The device is intended for environments where multiple video sources must be managed and displayed selectively or simultaneously. It supports switching between connected devices and can display a secondary input as an inset window while the main output shows a primary source, allowing simultaneous monitoring or comparison of two signals on a single screen.

Advantages

The HDMI matrix provides independent routing of six inputs to six outputs, enabling simultaneous distribution of different sources to different screens. The Picture-in-Picture capability allows one display to show a secondary input overlaid on the main image, improving content monitoring and presentation flexibility. Centralized switching reduces cable changes at displays and simplifies control in meeting rooms, classrooms, showrooms and AV installations. The unit is compatible with standard HDMI video resolutions and preserves audio/video synchronization when switching.

Suitable for

• Conference and meeting rooms where multiple laptops or media players must be routed to several displays.
• Classrooms and lecture halls requiring selection and simultaneous view of instructor and presentation sources.
• Digital signage installations with the need to deliver different content to different screens.
• Control rooms and monitoring stations needing Picture-in-Picture for live comparison of feeds.

Key specifications

• Number of HDMI inputs: 6
• Number of HDMI outputs: 6
• Picture-in-Picture: integrated function for inset secondary display
• Supported video formats: standard HDMI resolutions up to common HDTV and computer resolutions (progressive and interlaced where applicable)
• Audio handling: embedded HDMI audio pass-through
• Control options: front-panel controls and likely remote/IR or RS232 support for integration (refer to official manual for available control interfaces)
• Form factor: rack-friendly tabletop unit suitable for AV cabinets

How to use

Connect each HDMI source device to one of the six HDMI input ports and connect target displays to the six HDMI output ports. Use the front-panel controls or the supported control interface to select which source is routed to which output. To enable the Picture-in-Picture function, choose a primary source for the main screen and assign a secondary source to appear as the inset window; adjust the inset position and size if those controls are available. Ensure all connected devices share compatible resolution and HDMI version settings to avoid handshake or display issues.

Recommendations

For stable operation, use high-quality HDMI cables of appropriate length, verify EDID settings when using different display types, and consult the product manual for detailed information on control protocols and resolution handling. Place the unit in a ventilated area and follow standard AV installation practices for cable management and grounding.
