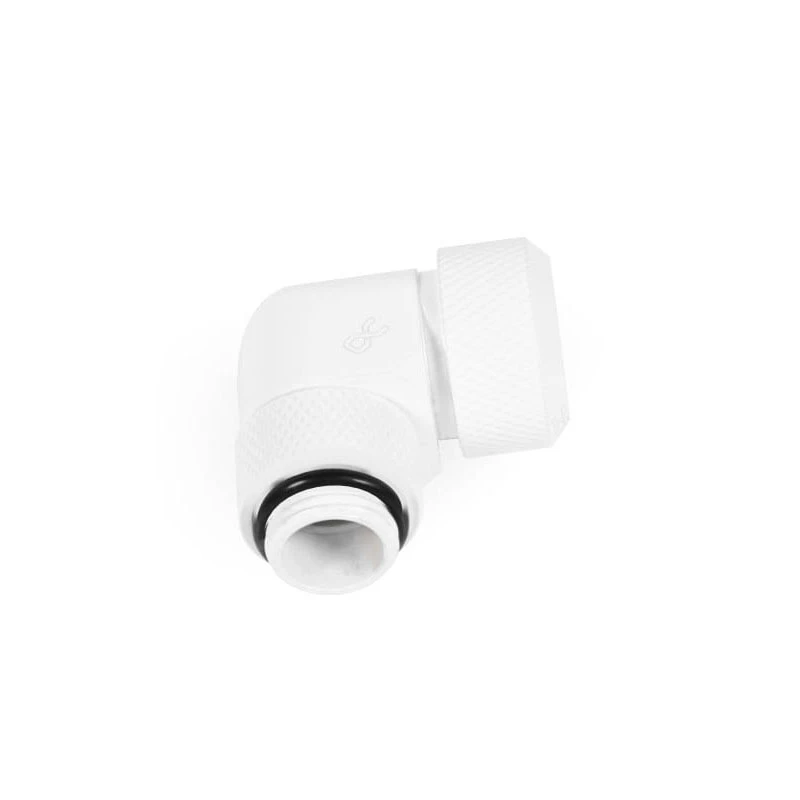

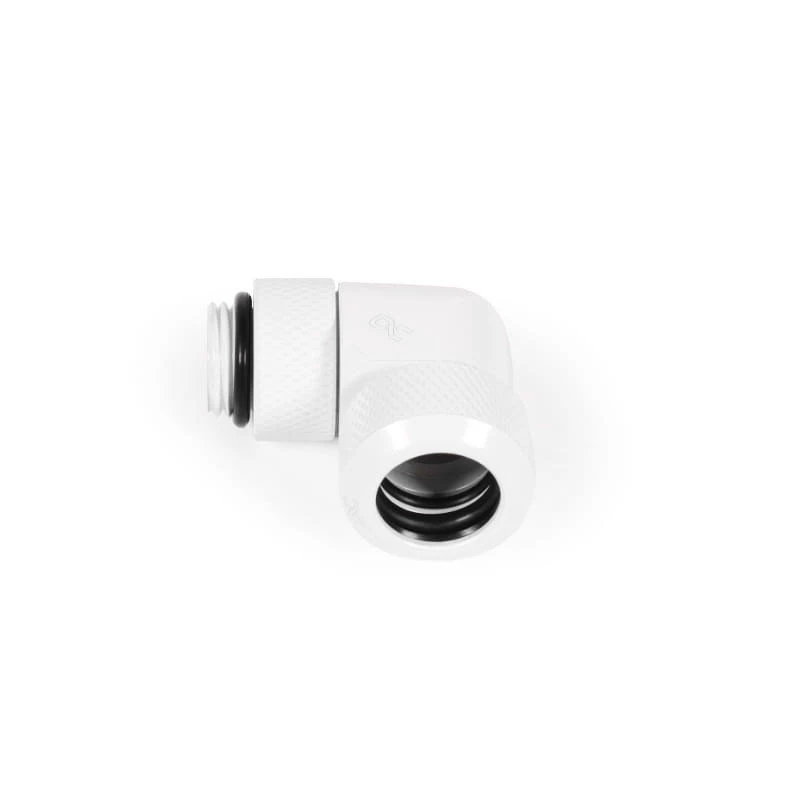

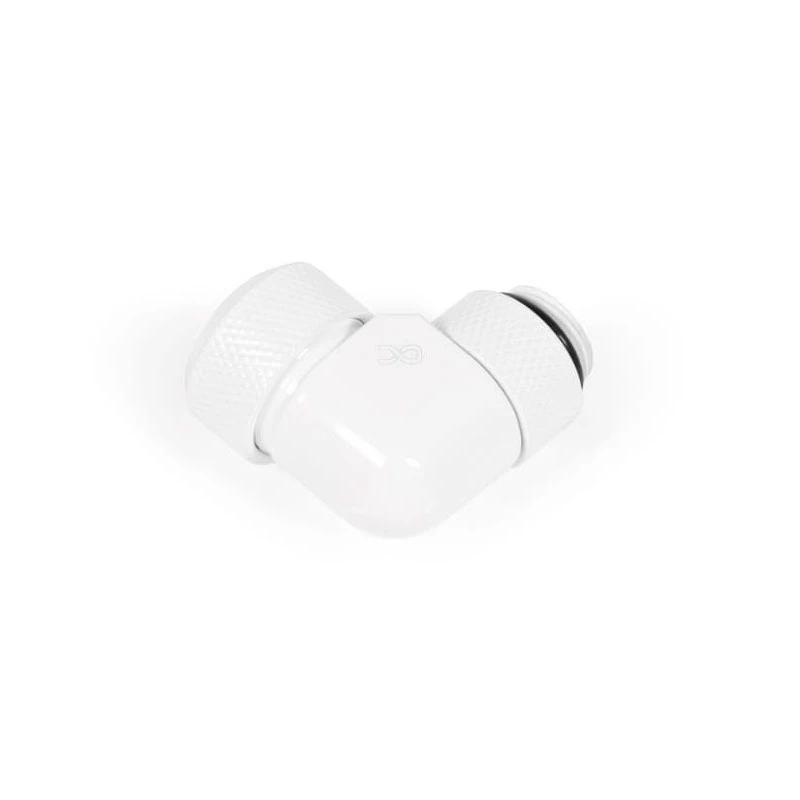

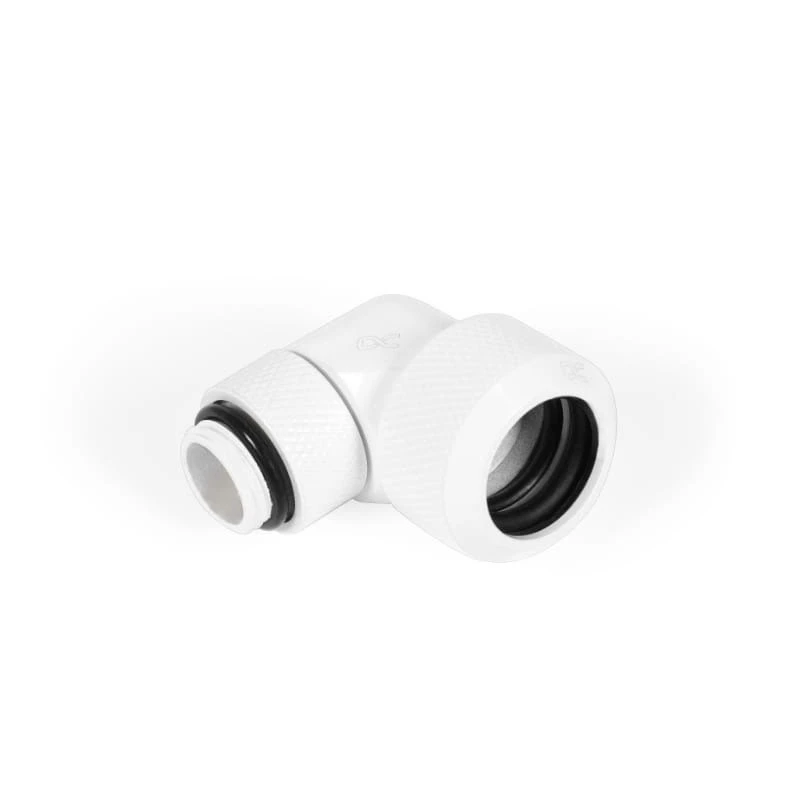

Conector Alphacool G1/4 macho rotativo a 90° para tubo rígido com 16mm DE (modelo 17621)

Alphacool 90° Rotatable G1/4 Male to 16mm OD Hardtube Fitting is an angled hardtube connector designed for custom PC liquid-cooling loops. The fitting provides a 90-degree bend point while allowing rotational adjustment at the joint, enabling precise alignment of 16 mm outside-diameter rigid tubing. It is intended to create compact turns and reduce mechanical stress on tubing runs and thread connections in desktop water-cooling systems.

Advantages

The rotatable joint permits fine-tuning of tube orientation after the fitting is threaded into a component, which simplifies installation in confined spaces. The 90° angle offers a compact routing solution for hard tubing layouts and helps maintain consistent flow direction. Manufactured for compatibility with standard G1/4 threads and 16 mm OD rigid tubes, the fitting contributes to leak-resistant joins when installed with appropriate seals and properly seated tubes.

Suitable for

• Custom PC water-cooling loops using 16 mm OD hard tubing
• Tight or compact case layouts where space for tubing bends is limited
• Radiator, pump, water block, or reservoir connections requiring a 90° turn
• Builds that benefit from post-installation orientation adjustment

Key specifications

• Thread type: male G1/4 compatible
• Tube compatibility: rigid tubing with 16 mm outside diameter
• Angle: 90° bend with rotatable joint
• Connection style: hardtube compression-style interface for secure seating
• Application: internal PC liquid-cooling systems

How to use

Install the fitting by threading the male G1/4 portion into the component port until hand-tight, then use appropriate tools to secure to the manufacturer's recommended torque while avoiding over-tightening. Insert the 16 mm OD hard tube into the compression interface and ensure the tube is fully seated; if required, cut the tube squarely and deburr the edge before insertion. Rotate the fitting at the joint to achieve the desired tube orientation, then verify all connections and perform a pressure or leak test according to standard liquid-cooling procedures.

Recommendations

Use compatible seals or O-rings as specified by system components and verify tube dimensions before assembly. Avoid excessive force when tightening to prevent damage to threads or fittings. Perform an extended leak test before powering the system to ensure reliable operation.
