Conector coaxial DeLOCK 90115 Mini FAKRA Z 50 Ω

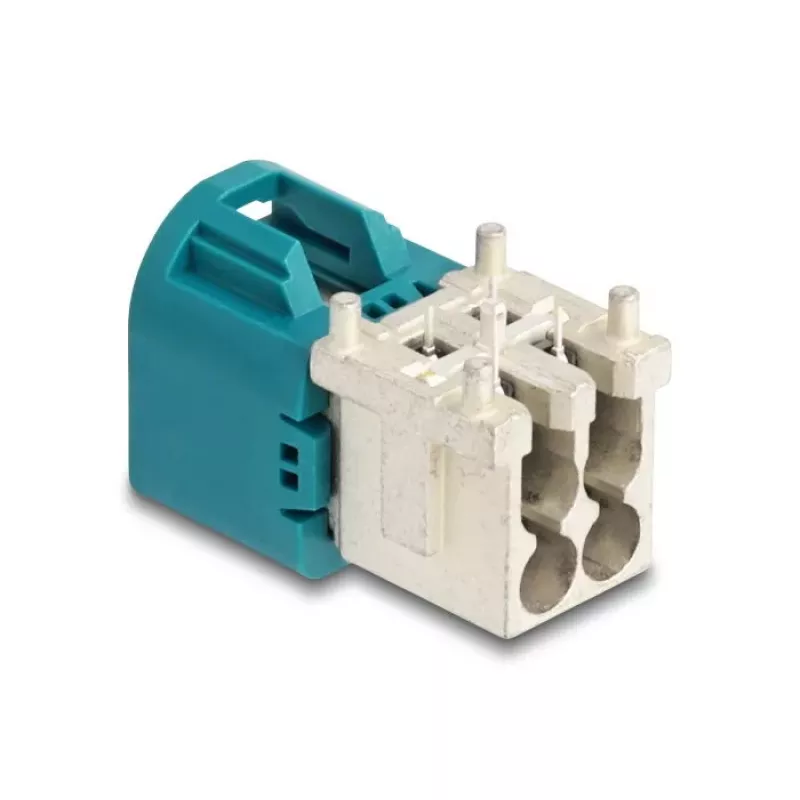

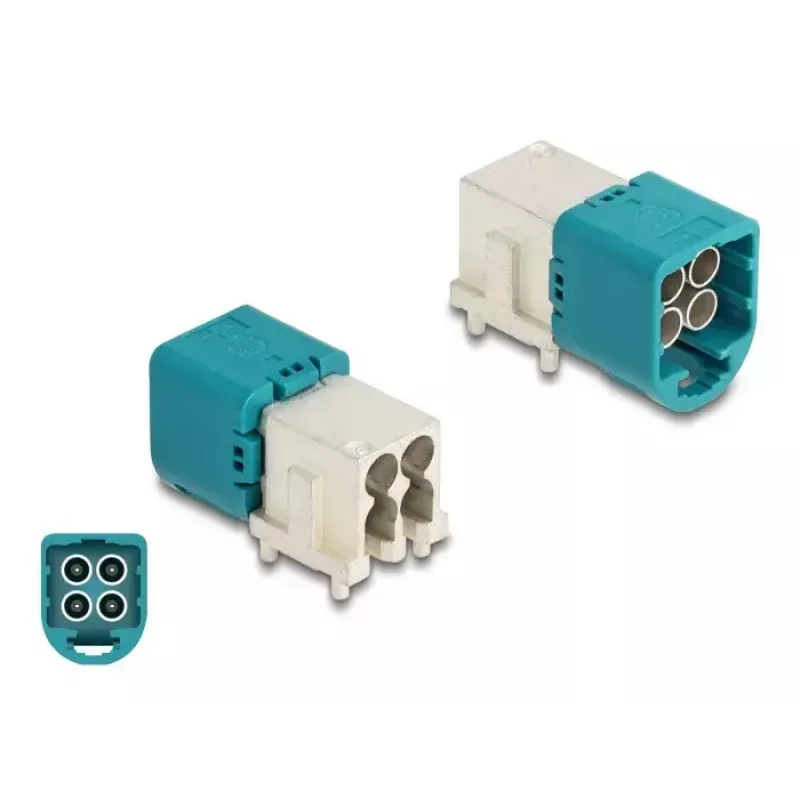

The DeLOCK 90115 Mini FAKRA Z Coaxial Connector 50 Ω is an adapter designed for 50 ohm coaxial connections in automotive and communication systems. It provides two Mini FAKRA Z connectors in a compact housing with dimensions of 8 mm width, 21 mm depth and 10 mm height, allowing reliable signal transmission where space is limited.

Advantages

Due to the reduced housing size compared to standard FAKRA connectors, the Mini FAKRA Z design can achieve up to 80% space savings while maintaining the required data rates and a 50 Ω impedance. The compact form factor enables installation of multiple modules in confined spaces and supports typical automotive mounting and cabling environments.

Suitable for

Key specifications

How to use

Mount the adapter in the intended housing or on the device panel and connect coaxial cables with matching Mini FAKRA Z plugs. Ensure correct mating of connectors and maintain proper cable routing to avoid excessive bending. Verify continuity and impedance match within the system after installation.

Recommendations

Use this Mini FAKRA Z connector where standard FAKRA space is limited; follow automotive cabling best practices and manufacturer guidelines for torque and connector mating to ensure signal integrity and mechanical reliability.
