Conector coaxial tipo F e+p F 0

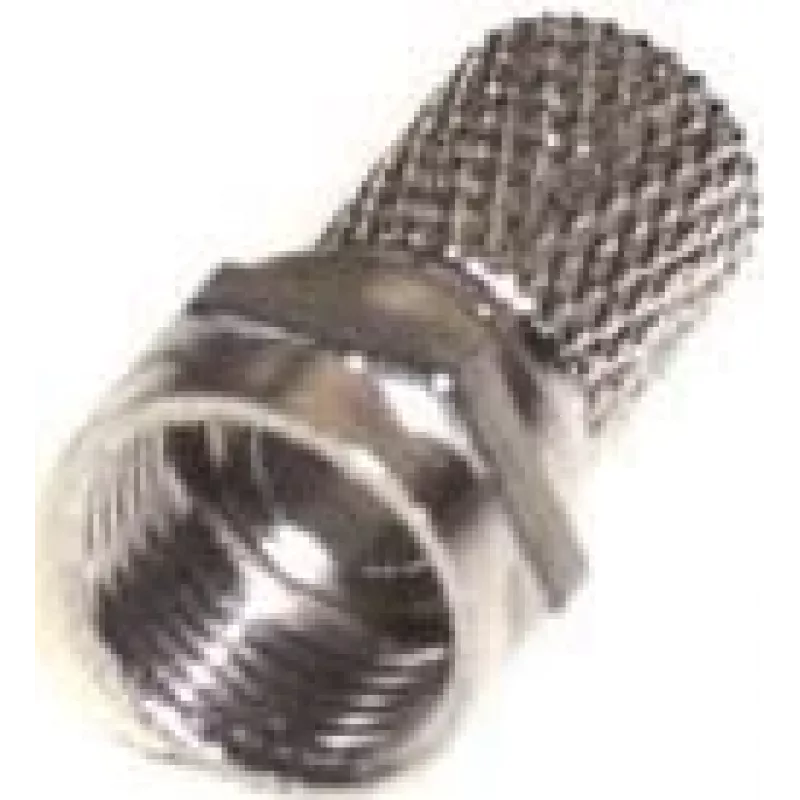

The e+p F 0 coaxial connector is an F-type male connector supplied in a blister pack containing 2 pieces. It is designed for use with coaxial cables in home entertainment systems, satellite installations and other RF connection applications. Cable isolation measures approximately 4.8 mm and the outer jacket approximately 7.0 mm, allowing compatibility with commonly used coaxial cable dimensions.

Advantages

This connector offers a standard F-type male interface for straightforward attachment to compatible female sockets. The pack of two provides spare or paired connections for signal routing, and the durable construction supports reliable RF performance for typical consumer and installation use.

Suitable for

• Home TV and set-top box connections
• Satellite and antenna installations
• Connecting tuners, receivers and modulators

Key specifications

• Type: F-type male coaxial connector
• Pack contents: 2 pieces (blister packing)
• Cable isolation (approx.): 4.8 mm
• Outer jacket diameter (approx.): 7.0 mm
• Brand: e p
• MPN: 0001770000
• EAN: 4005298026042

How to use

Prepare the coaxial cable by stripping the outer jacket and isolation to match the indicated dimensions (isolation approx. 4.8 mm, outer jacket approx. 7.0 mm). Slide the connector onto the prepared cable so that the central conductor engages the male pin and the outer conductor makes contact with the connector body. Secure the connector according to the connector type (push-on or screw) and verify a firm mechanical and electrical connection before use.

Recommendations

Use the connector with cables that match the specified dimensions for reliable contact. Avoid excessive bending near the connection point and check connections for good mechanical fit to maintain signal quality.
