Conector de 8 pinos ShiverPeaks 14-05013 para áudio/multimédia, 3,5 mm

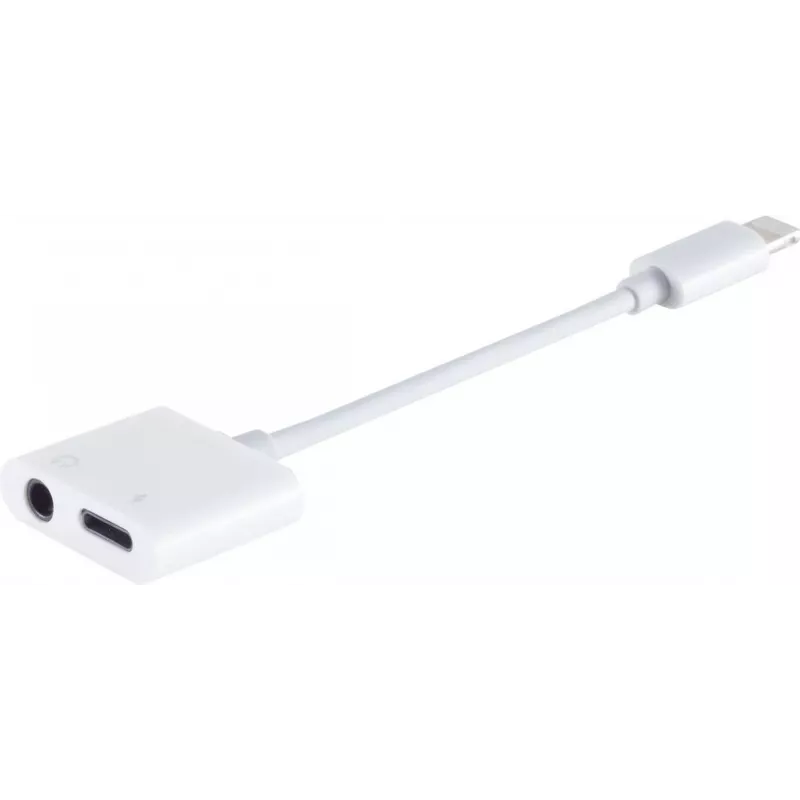

The ShiverPeaks 8-Pin Connector 14-05013 for Audio/Multimedia with a 3.5 mm interface is a compact multi-contact plug intended for transmitting audio signals and supporting multimedia devices that require an 8-pin connection. Designed for installations, device repairs and replacements in audio equipment and multimedia systems, the connector combines an 8-contact plug with a 3.5 mm mating interface to provide space-efficient connectivity in white housing.

Advantages

This 8-pin connector offers a compact form factor that saves space in audio and multimedia assemblies while maintaining multiple contact points for stereo and auxiliary signal routing. Its defined contact arrangement simplifies replacement and repair work and helps ensure consistent electrical contact. The white housing provides a neutral appearance for integration into various devices and interior installations. The connector is suitable for applications where a combination of multi-pin connectivity and a 3.5 mm audio interface is required.

Suitable for

• Repair or replacement of audio equipment and multimedia devices that use an 8-pin connection
• Installations in car audio systems, home entertainment units and professional AV racks where a compact multi-contact connector is needed
• Prototyping and custom cable assemblies that combine 8-pin connectivity with a 3.5 mm audio interface

Key specifications

• Contact count: 8 contacts for multi-channel signal routing
• Interface: mating compatibility with 3.5 mm audio plug/socket for analog audio signals
• Housing color: white for neutral device integration
• Application area: audio and multimedia signal transmission
• Form factor: compact multi-pin connector suitable for constrained installation spaces

How to use

Prepare the cable assembly and verify wire assignments before installation. Align the connector contacts with the mating receptacle and insert evenly until a secure mechanical and electrical connection is achieved. For repairs, remove the defective plug or socket according to device disassembly instructions, replace with the ShiverPeaks 8-pin connector and restore the device housing. Ensure that signal wiring corresponds to the device’s pinout to avoid incorrect channel routing or short circuits.

Recommendations

Verify compatibility with the target device’s pinout and test audio channels after installation. Avoid excessive bending or mechanical strain on the connector and cable; secure the cable to prevent movement that could loosen contacts. For professional installations, perform continuity checks and verify shielding and grounding where applicable.
