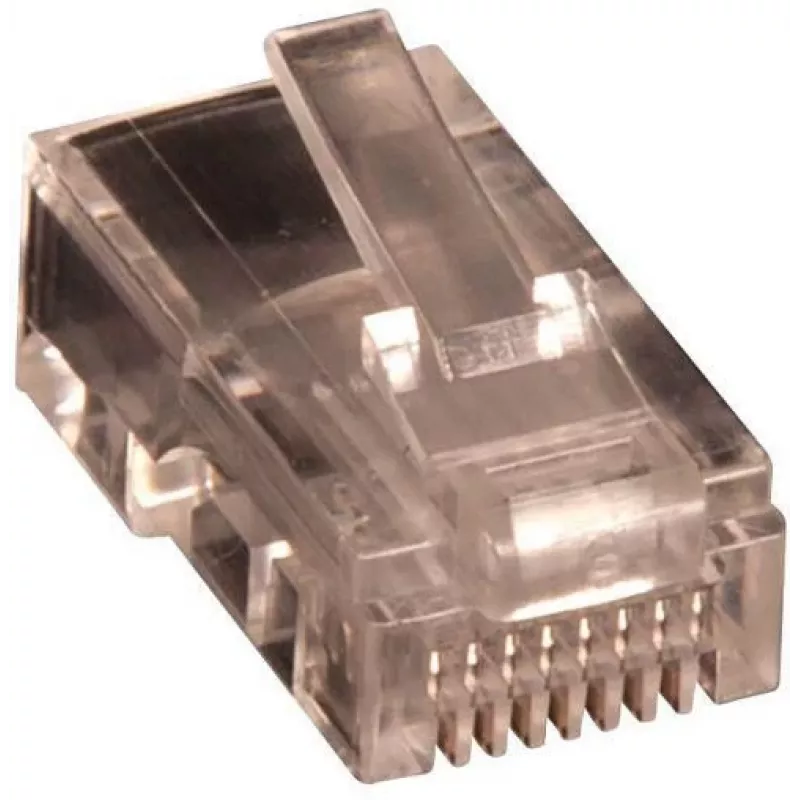

Conector de cabo RJ45 Lanview LVN125432, transparente

The Lanview LVN125432 RJ45 wire connector is a transparent, shielded male connector designed to terminate Cat5e patch cables and maintain cable twist through the connector for improved performance. Supplied in a pack of 10, each connector measures 13 mm in width, 22 mm in depth and weighs 27.3 g, providing a compact solution for reliable network connections.

Advantages

The connector preserves the cable twisting through the contact area to reduce crosstalk and maintain signal integrity. Its transparent housing allows visual inspection of conductor placement, while the shielded design supports use with screened Cat5e cables for better EMI protection. The compact dimensions and lightweight construction simplify installation in tight spaces and standard RJ45 jacks.

Suitable for

• Termination of shielded Cat5e patch cables
• Small office and data closet networking tasks
• Repairs and replacement of damaged RJ45 plugs
• Installations where visual verification of conductor order is required

Key specifications

• Brand: Lanview
• Model / MPN: LVN125432
• EAN: 5704174320593
• Type: RJ45 male wire connector (shielded, transparent)
• Compatible cable: Cat5e (shielded)
• Pack quantity: 10 pcs
• Dimensions (W×D): 13 mm × 22 mm
• Weight (per pack): 27.3 g

How to use

Strip the outer jacket of the shielded Cat5e cable to expose conductors and overall drain/shield according to the cable preparation guidelines. Arrange the individual wires into the required wiring pattern, maintain the twist as close as possible to the connector, and insert the conductors fully into the Lanview LVN125432 until they reach the contacts. Crimp using a compatible RJ45 crimping tool designed for shielded plugs and ensure the shield/drain is properly connected to the plug housing for effective EMI grounding.

Recommendations

For optimal performance, use with shielded Cat5e cables and a compatible crimping tool; verify conductor order visually before crimping and test the terminated cable with a network tester to confirm continuity and correct pairing.
