Conector de cruzamento DeLOCK 60536 metal 1 unid. 52 mm × 20 mm

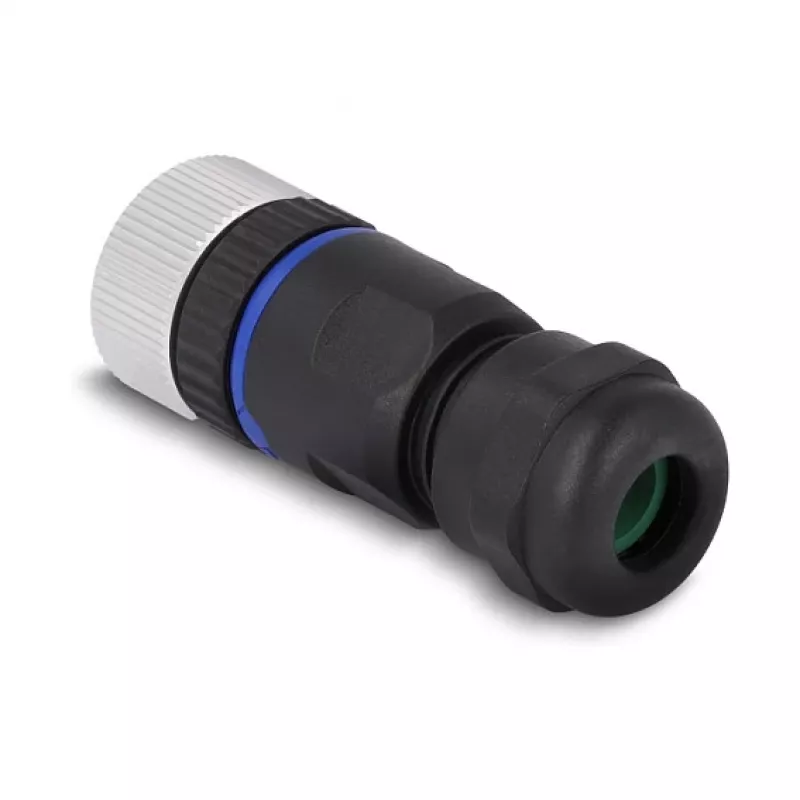

The DeLOCK 60536 is a metal cross-connector with an M12 connector and screw terminal interface, designed to enable a reliable connection between a cable and an M12 port for machine control and automation applications. The compact unit measures 52 mm × 20 mm and is supplied as a single piece. The product colour combines black and silver metal finishes.

Advantages

The metal housing provides mechanical robustness and improved shielding. The screw terminal connection allows secure wiring without specialized crimping tools. Its compact dimensions make it suitable for installations with limited space, and the M12 interface ensures compatibility with standard industrial sensors and actuators.

Suitable for

• Machine control systems
• Industrial automation and sensors
• Field wiring where M12 connections are required
• Maintenance and replacement of existing M12 cable links

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 60536

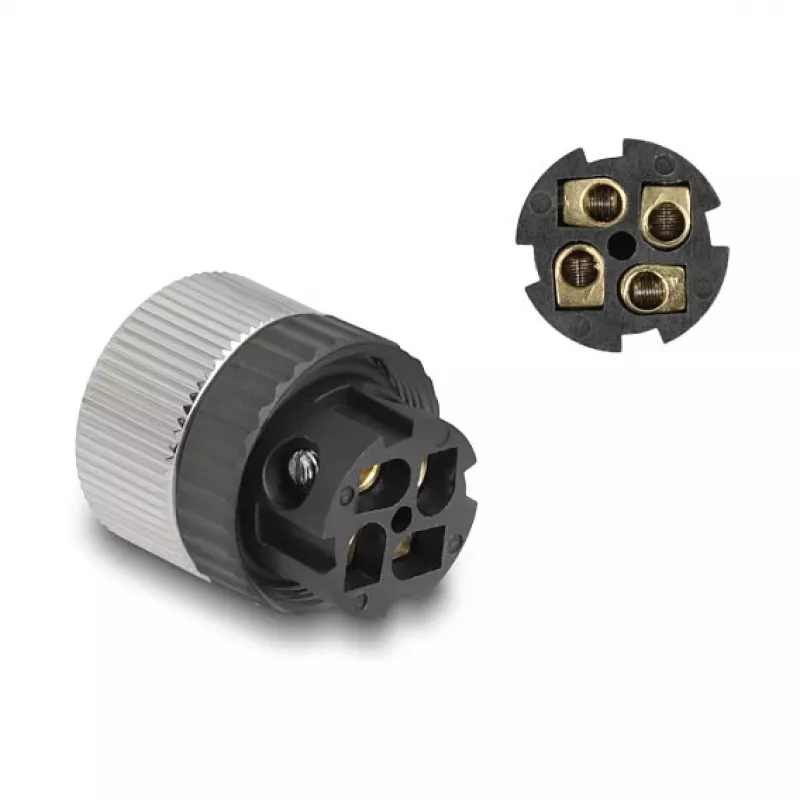

• Type: Metal cross-connector with M12 connector and screw terminal
• Quantity: 1 piece
• Dimensions: 52 mm × 20 mm
• Colour: Black, Silver
• EAN: 4043619605361

How to use

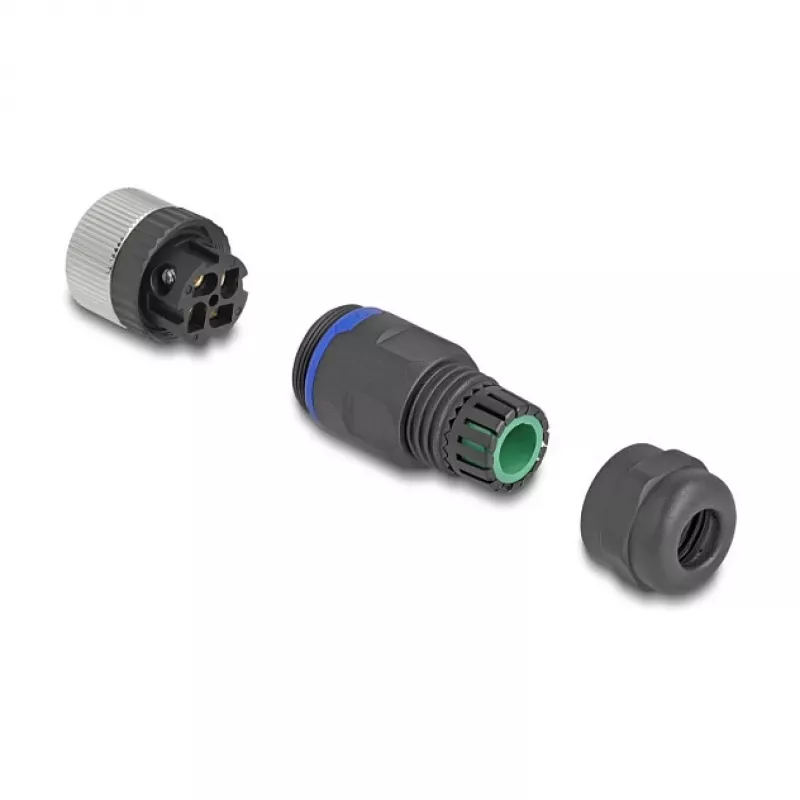

Route the cable conductors into the screw terminal ports, tighten the terminals to secure the conductors, and then connect the M12 plug to the corresponding M12 socket. Ensure correct wiring according to the device pinout and tighten all connections to the manufacturer’s recommended torque values. Use appropriate strain relief and cable routing to avoid mechanical stress on the terminals.

Recommendations

Verify pin assignments and observe industry-standard safety practices when working with powered circuits. Use the connector within its specified mechanical and environmental limits and perform periodic checks of the screw terminals for tightness in vibration-prone installations.
