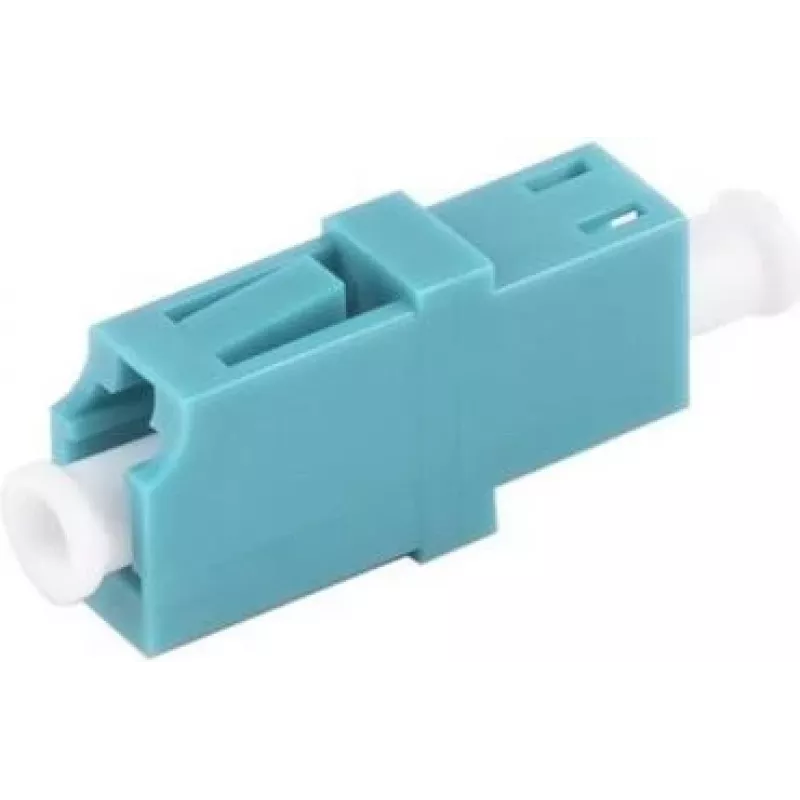

Conector de fibra ótica LC/LC conector fêmea/conector fêmea ShiverPeaks BS07-60002

The ShiverPeaks BS07-60002 is an LC/LC female-to-female fibre optic connector in a bulkhead format designed for panel or enclosure mounting. It provides a compact interface for duplex LC connections and is intended to enable secure, low-loss optical links within networking and telecommunications racks and modules. The connector supports straightforward installation into standard cutouts and aims to maintain signal integrity across short and medium interconnect runs.

Advantages

This LC/LC female-to-female bulkhead connector offers consistent mating alignment and reliable mechanical retention for duplex LC plugs. Its compact duplex form factor helps conserve panel space while preserving optical performance. The bulkhead design facilitates clean and stable feedthrough mounting, reducing stress on fibre cabling and simplifying rack or enclosure wiring. The connector materials and geometry are chosen to minimize insertion loss and back reflection under normal operating conditions.

Suitable for

• Panel-to-panel or module-to-module optical feedthroughs in telecom racks
• Patch panels and distribution frames requiring duplex LC interfaces
• Data centre and networking equipment interconnects
• Optical test setups and laboratory fixtures where LC duplex mating is needed

Key specifications

• Connector type: Duplex LC female to LC female (bulkhead)
• Mounting style: Bulkhead / panel mount
• Polish and ferrule compatibility: Standard LC ferrule geometry
• Typical application: Single-mode and multimode fibre systems (dependent on fibre type used)
• Form factor: Compact duplex LC interface

How to use

Install the bulkhead connector into a compatible panel cutout or enclosure opening and secure it according to the panel’s fastening method. After mounting, insert matching LC duplex plugs from fibre patch cables into each female port until they click to ensure proper mating. Route and strain-relieve the attached cables to prevent movement or bending near the connector face. For maintenance, disconnect fibres by pressing the LC latch and gently withdrawing the plug; avoid twisting or pulling on the cable jacket itself.

Recommendations

Inspect connector endfaces with an appropriate fibre inspection tool before mating and clean with approved fibre cleaning methods if contamination is present. Use compatible LC duplex patch cords and avoid sharp bends; follow standard handling practices for fibre optic components to maintain low insertion loss and reliable connections.
