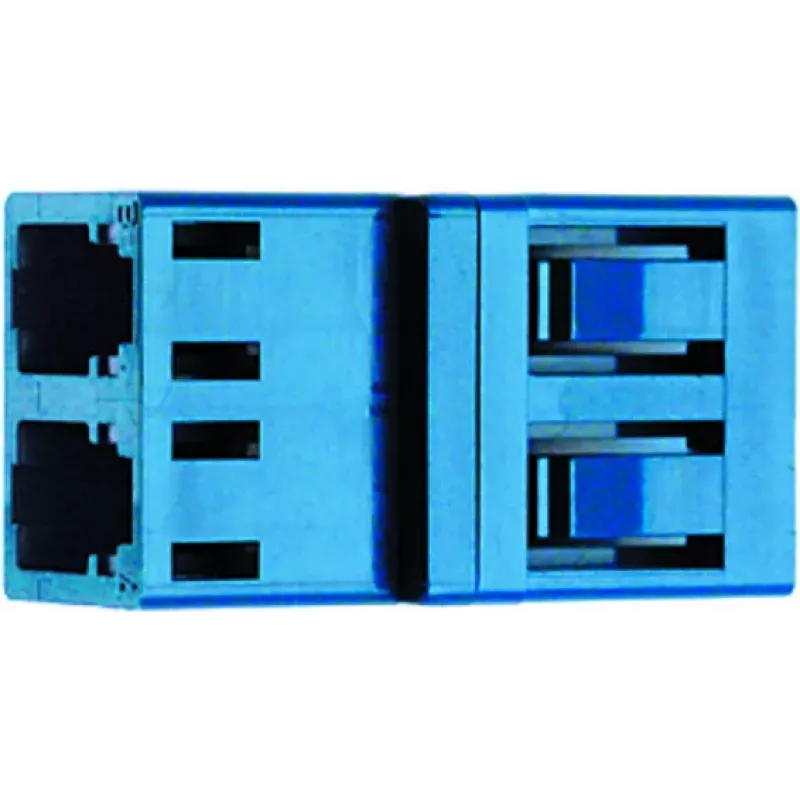

Conector de fibra ótica Telegärtner J08071A0002 LC duplex multimodo, azul, ferrula de cerâmica de zircónio, pack de 1

The Telegärtner J08071A0002 is a high-quality LC duplex multimode fibre optic connector designed for reliable performance in data centres, LAN, SAN, and telecommunications networks. Featuring a blue plastic housing and a precision zirconia ceramic ferrule, this connector ensures low insertion loss and high return loss for efficient signal transmission. Each pack contains one connector with a dust cap for protection.

Advantages

This connector offers typical insertion loss of only 0.1 dB and maximum 0.3 dB, with return loss of at least 20 dB (typical 25 dB). The zirconia ceramic ferrule provides durability and consistent performance over 500 mating cycles. It is compliant with IEC 61754-20 and TIA/EIA-604-10 standards, ensuring compatibility with 50/125 µm and 62.5/125 µm fibres and cable diameters of 2.0 mm and 3.0 mm (simplex).

Suitable for

• Data centre cabling
• Local area networks (LAN)
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Connector type: LC Duplex
• Fibre mode: Multimode
• Colour: Blue
• Ferrule material: Zirconia ceramic
• Housing material: Plastic
• Polishing type: PC/UPC
• Insertion loss (typical): 0.1 dB
• Insertion loss (max): 0.3 dB
• Return loss (min): 20 dB
• Return loss (typical): 25 dB
• Mating cycles: ≥ 500
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Standards: IEC 61754-20, TIA/EIA-604-10
• Compatible fibre: 50/125 µm, 62.5/125 µm
• Compatible cable diameter: 2.0 mm, 3.0 mm (simplex)
• Quantity per pack: 1
• Included accessories: Dust cap

Recommendations

For optimal performance, use with multimode patch cables and ensure proper cleaning of ferrule before mating. Suitable for both field termination and factory pre-terminated assemblies.
