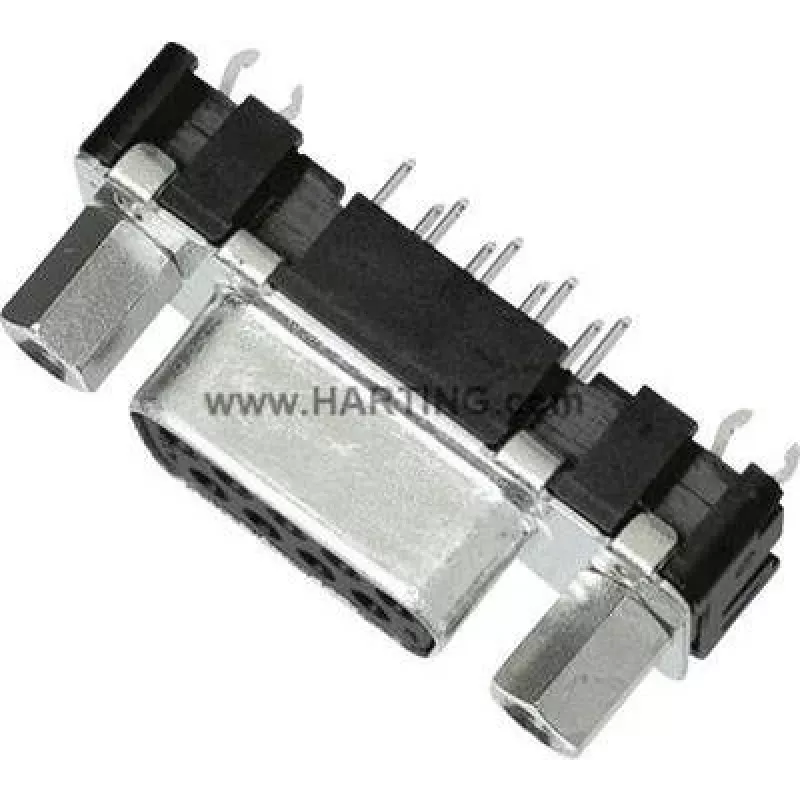

Conector de fios D-Sub 2 Harting 09 66 251 6513

Wire Connector D-Sub 2 Harting 09 66 251 6513 is a female D-Sub 2 connector designed for wire termination in electronic assemblies. Constructed from glass-fibre filled polybutylene terephthalate (PBTP) with plated steel components and copper-alloy contacts, it provides a compact, RoHS-compliant solution for signal connections with a rated current of 6.5 A and 15 contacts. The connector is finished in black and metallic tones and has a lightweight construction of approximately 11 g.

Advantages

The Harting 09 66 251 6513 combines a robust thermoplastic housing with plated steel hardware for mechanical strength and copper-alloy contacts for reliable electrical conductivity. Its compact D-Sub 2 footprint and 15-contact configuration suit space-constrained applications while maintaining a 6.5 A rated current. The product is RoHS compliant and lightweight, simplifying handling and installation.

Suitable for

• Wire terminations in control panels and instrumentation
• Signal connections in industrial and communication equipment
• Replacement or repair of D-Sub 2 female connector interfaces

Key specifications

• Manufacturer: Harting
• Manufacturer part number (MPN): 09 66 251 6513
• EAN: 2050000253331
• Connector type: D-Sub 2, female
• Number of contacts: 15
• Rated current: 6.5 A
• Housing material: Glass-fibre filled PBTP (thermoplastic resin)
• Contact material: Copper alloy
• Other materials: Plated steel components
• Compliance: RoHS
• Weight: ~11 g

How to use

Prepare and strip wires according to the required conductor length and termination method for the D-Sub 2 connector. Insert wires into the designated contact positions and secure them following the manufacturer's recommended crimping or soldering procedure for the specific connector variant. Mount the connector in the panel or cable assembly using the plated steel fixings to ensure mechanical stability and proper mating with the corresponding plug.

Recommendations

Ensure wire sizes and insulation types are compatible with the connector's contact specifications and the 6.5 A rated current. Follow ESD precautions when handling contacts and verify proper mechanical fastening to prevent intermittent connections in vibration-prone environments.
