Conector de fios de crimpagem Harting 09 11 000 6123

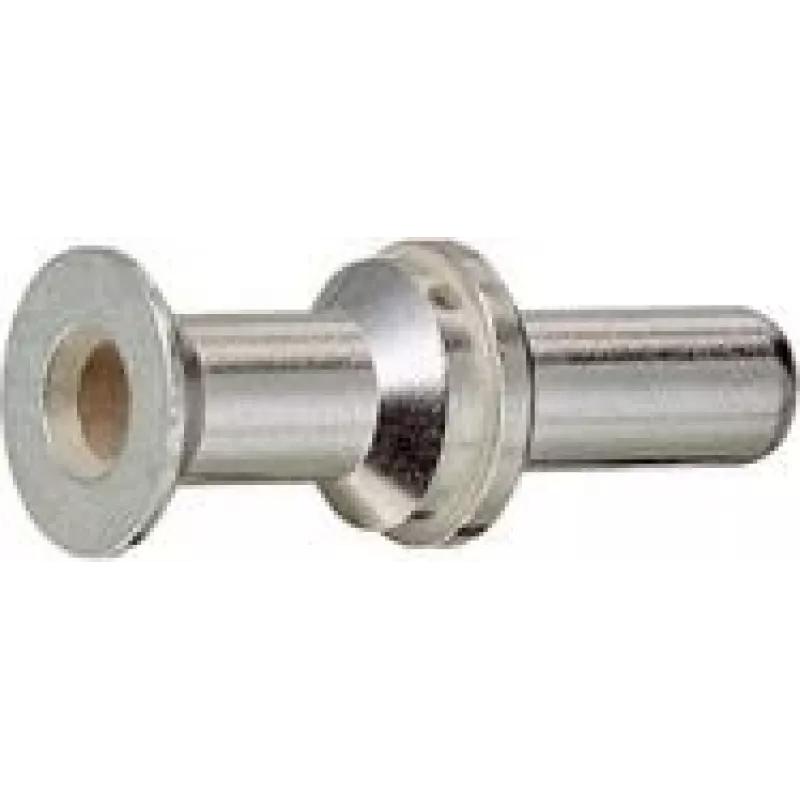

The Harting Wire Connector Crimp 09 11 000 6123 is a compact crimp-style electrical connector with a silver finish designed for reliable conductor termination. Compliant with RoHS, this single-piece connector weighs approximately 42.6 g and has an outer diameter of 1.8 cm and a width of 47.7 mm, making it suitable for confined spaces and straightforward manual handling. The connector is intended for use where a crimped metal contact with stable conductivity and a corrosion-resistant surface is required.

Advantages

The crimp construction provides a secure mechanical and electrical connection while keeping installation time low. The silver finish enhances conductivity and offers corrosion resistance in typical industrial and commercial environments. RoHS compliance ensures the connector meets environmental and material-safety requirements. Its compact dimensions and moderate weight make it easy to position and attach within tight wiring harnesses or control cabinets.

Suitable for

• Electrical wiring harness assembly and field terminations
• Industrial control panels and machine wiring
• Signal and power connections requiring reliable crimp contacts
• Applications where RoHS-compliant components are specified

Key specifications

• Connection type: crimp
• Finish: silver
• Compliance: RoHS
• Weight: approximately 42.6 g
• Outer diameter: 1.8 cm
• Width: 47.7 mm
• Quantity per pack: 1 piece

How to use

Prepare the conductor by stripping the insulation to the recommended length for the specific crimp barrel. Insert the stripped conductor into the crimp barrel until it seats fully, then use an appropriate crimping tool sized for the connector to form a secure mechanical joint. Inspect the crimp for proper compression and ensure the silver finish area provides continuous contact with the mating part. After crimping, confirm electrical continuity and, if necessary, apply any specified insulation or strain relief.

Recommendations

Use a calibrated crimping tool matched to the connector size and conductor cross-section to achieve consistent electrical and mechanical performance. Avoid using damaged or corroded mating components; store connectors in a dry environment to preserve the silver finish and RoHS-compliant materials.
