Conector de ligação DC DeLOCK 5,5 x 2,5 mm fêmea tomada de encastrar versão para soldar 20 V 15 A

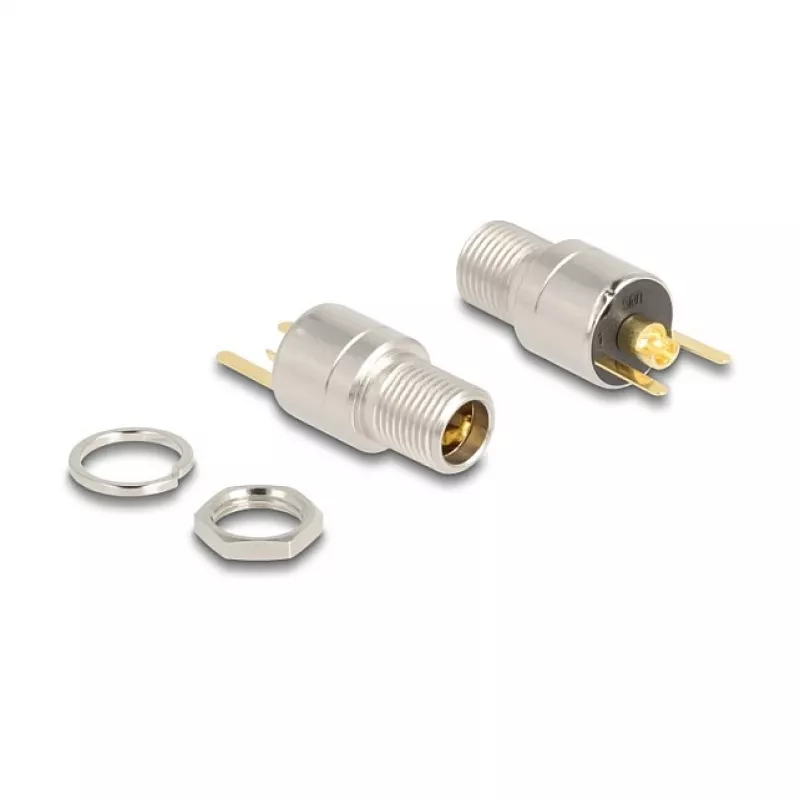

The DeLOCK Connector DC 5.5 x 2.5 mm female bulkhead soldering version is a panel-mount DC power inlet designed to be installed in a housing or device to provide a removable power connection. It is suitable for power supply applications and rated for up to 20 V and 15 A. The connector has an outer diameter of 5.5 mm, an inner diameter of 2.5 mm and a length of 12 mm, and comes in a silver finish.

Advantages

This bulkhead DC connector offers a standard 5.5 x 2.5 mm size for compatibility with common DC plugs, a soldering version for secure internal wiring, and a compact 12 mm length for installation in enclosures. The 20 V / 15 A rating supports higher current power delivery compared to lower-rated DC jacks, and the silver colour provides a neutral appearance for many device housings.

Suitable for

Key specifications

How to use

Drill or prepare a panel cutout sized for the 5.5 mm outer diameter and secure the bulkhead connector in the housing according to the device design. Solder the internal supply wires to the connector's solder terminals following correct polarity. After soldering and insulating connections, assemble the housing and test the connector with the appropriate DC plug and a compatible power source rated within 20 V and 15 A.

Recommendations

Use compatible 5.5 x 2.5 mm DC plugs and ensure power source voltage and current do not exceed the 20 V / 15 A rating. Observe correct polarity when soldering and insulate solder joints to prevent short circuits. For high-current applications, verify that connected wiring and terminals are rated accordingly to maintain safe operation.
