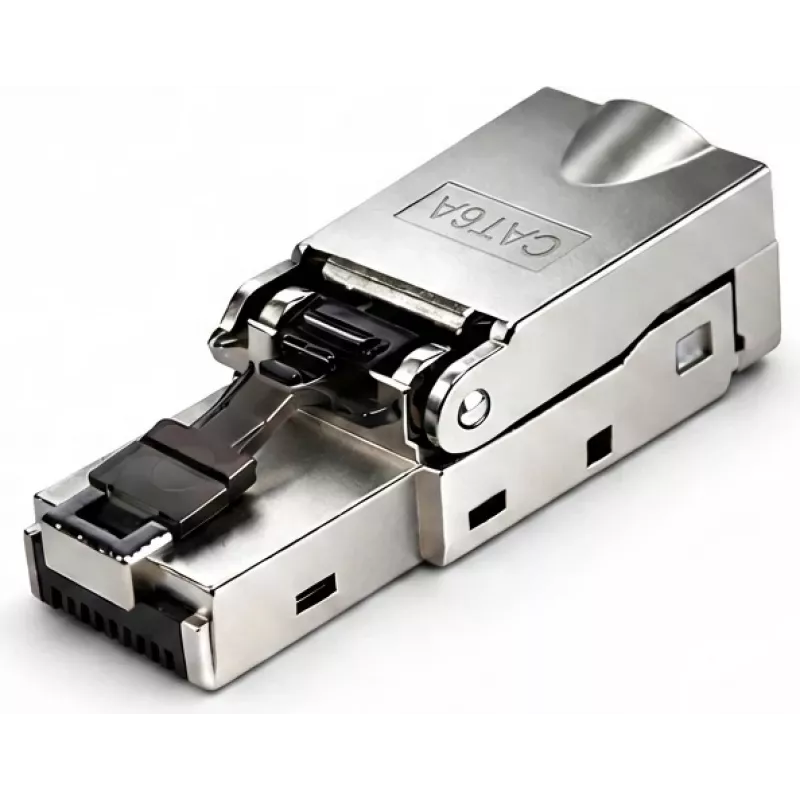

Conector de rede DSIT S/FTP CAT6a RJ45 sem ferramentas para cabo flexível

Terminate solid core network cables in seconds with this toolless RJ45 plug, engineered for 10 Gigabit Ethernet and S/FTP shielding. The zinc die-cast housing and gold-plated contacts deliver reliable, high-speed connections in demanding environments.

Advantages

Tool-free installation saves time and reduces errors—simply insert the conductors and close the housing. Gold-plated contacts (50µm) ensure low contact resistance and long-term reliability, while the robust metal shell provides excellent EMI protection. Supports Power over Ethernet up to 4PPoE (IEEE 802.3bt), making it ideal for powering devices like IP cameras and wireless access points.

Suitable for

• Data centers and server rooms requiring CAT6a performance
• Industrial Ethernet applications with high vibration or interference
• Field terminations where crimp tools are unavailable
• Solid core cables with outer diameters from 6.0 to 9.0 mm and conductors AWG 22–24

Key specifications

• Connector type: RJ45 plug, 8P8C
• Category: CAT6a (500 MHz bandwidth)
• Shielding: S/FTP (screened foiled twisted pair)
• Installation: Toolless, field terminable
• Conductor compatibility: Solid core, AWG 22–24
• Transmission speed: Up to 10GBASE-T
• Contact plating: Gold, 50µm
• Housing material: Zinc die-cast
• Wiring scheme: T568A / T568B (color-coded)
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Durability: >750 mating cycles
• Operating temperature: -10°C to +60°C
• Standards: ISO/IEC 11801, TIA/EIA-568-C.2, RoHS, REACH

Recommendations

For best results, use with solid core cables and ensure proper conductor seating before closing the housing. Ideal for high-speed data networks, data centers, and industrial Ethernet installations.
