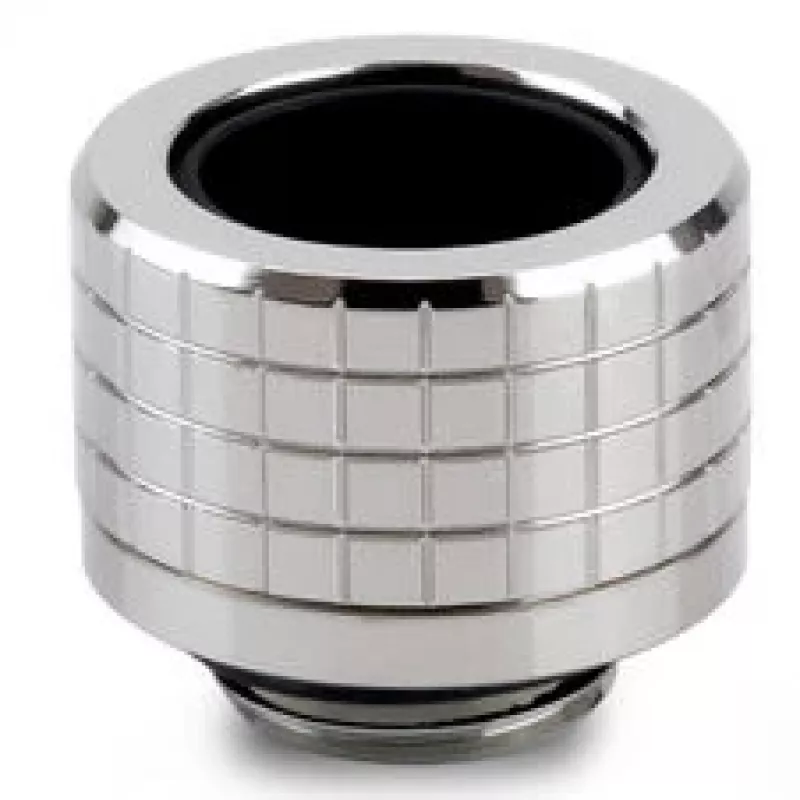

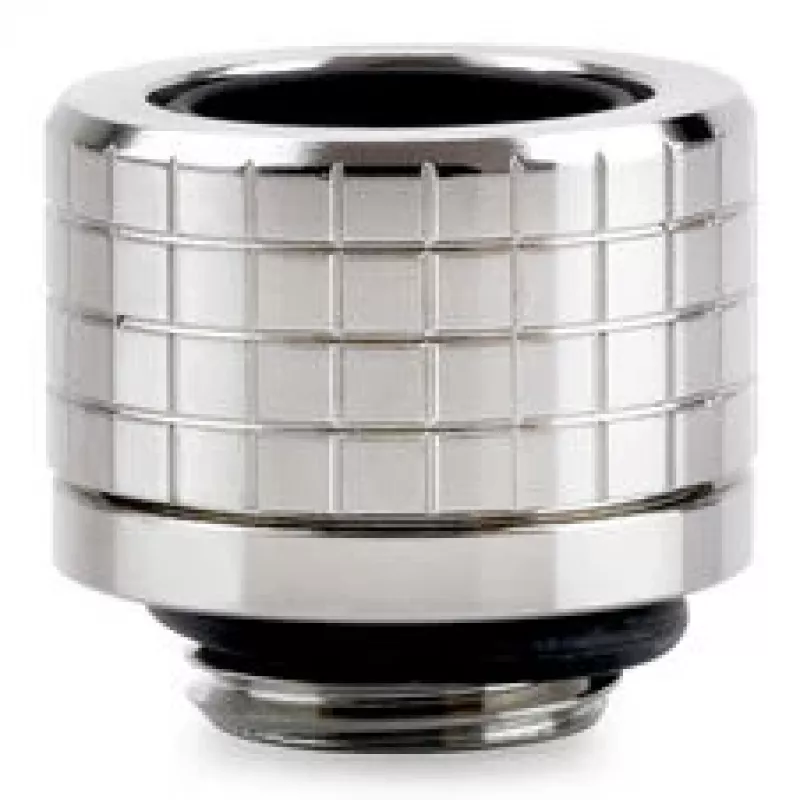

Conector de tubo Thermal Grizzly DeltaMate, latão - níquel brilhante, para tubos rígidos de 14 mm, rosca G1/4 polegadas

The Thermal Grizzly DeltaMate compression fitting stands apart from generic fittings by combining a robust brass core with a mirror-like gloss nickel finish, engineered specifically for 14 mm hard tubing in custom liquid cooling loops. Its knurled grip and multi-O-ring seal deliver a secure, tool-free installation that resists leaks even under pressure, making it a reliable choice for both first-time builders and experienced enthusiasts.

Highlights

• Precision-machined brass body with gloss nickel plating for corrosion resistance and a premium silver look.
• Optimized for 14 mm outer diameter hard tubes (PETG or acrylic) with a universal G1/4" thread.
• Multi-O-ring sealing system (EPDM) ensures a tight, leak-free connection without overtightening.
• Knurled grip allows easy hand-tightening, even in tight spaces.
• Reusable and durable, rated for typical PC cooling temperatures up to 60°C.

In daily use

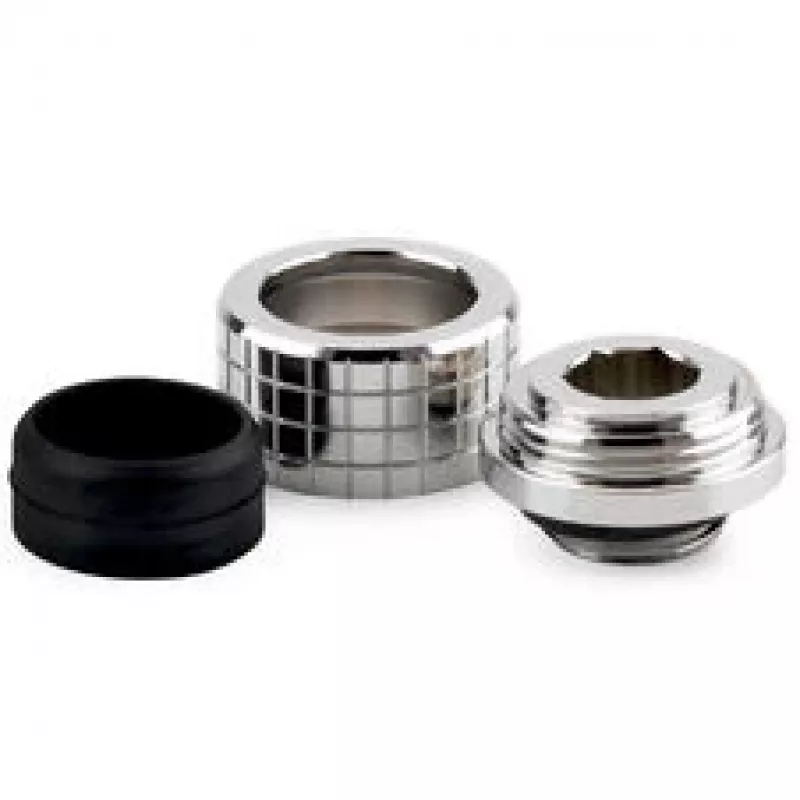

Installing the DeltaMate is straightforward: slide the compression ring over your 14 mm tube, insert the tube into the fitting, and tighten the knurled collar by hand. The EPDM O-rings compress evenly around the tube, creating a secure seal that holds up to the vibrations and thermal cycling of a running system. The gloss nickel surface not only looks sleek but also wipes clean easily and resists tarnishing, keeping your loop looking sharp for years.

Full specifications

• Fitting type: Compression fitting for hard tubes
• Compatible tube outer diameter: 14 mm
• Thread size: G1/4" (universal for PC water cooling components)
• Material: Brass body, EPDM O-rings
• Surface finish: Gloss nickel plated
• Colour: Silver
• Seal material: EPDM (multi-O-ring design)
• Installation method: Hand-tightened with knurled grip
• Corrosion resistance: Yes
• Leak protection: Multi-O-ring secure seal
• Product series: DeltaMate
• Compatibility: Universal G1/4" ports
• Reusability: Yes
• Recommended tube material: PETG, Acrylic
• Operating temperature range: Up to 60°C (typical for PC cooling)

Final note

For a clean, professional loop with 14 mm hard tubing, the DeltaMate fitting offers the perfect blend of performance, durability, and aesthetics. Its gloss nickel finish matches a wide range of builds, and the reliable sealing design gives you peace of mind from first fill to long-term operation.
