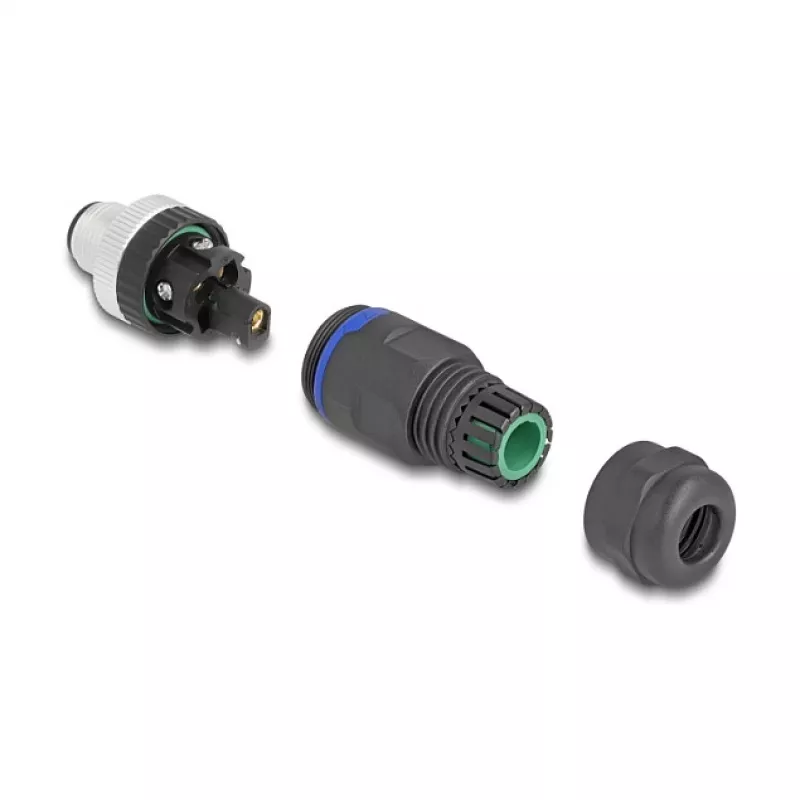

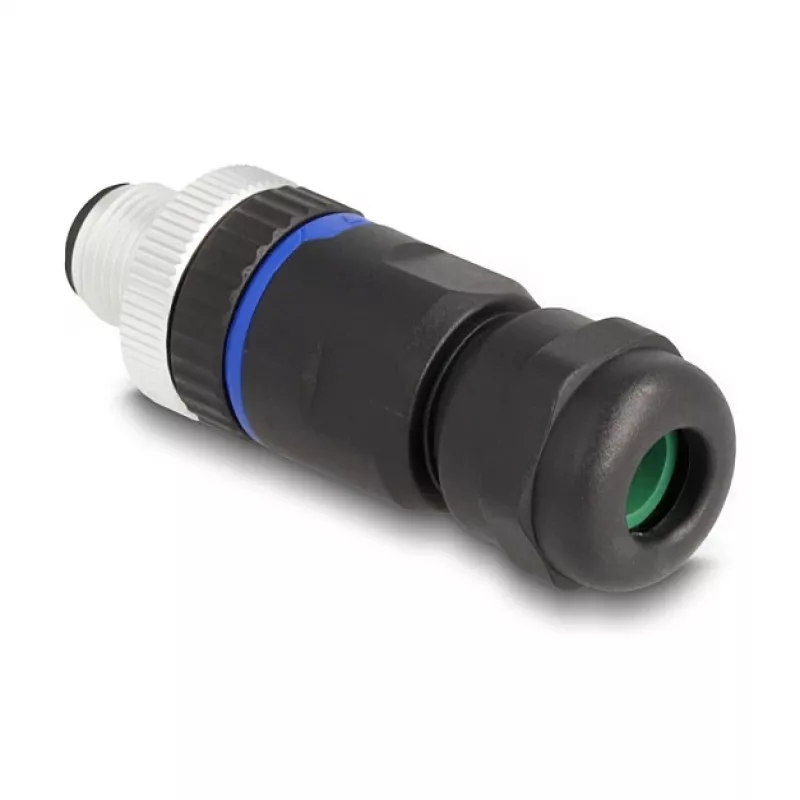

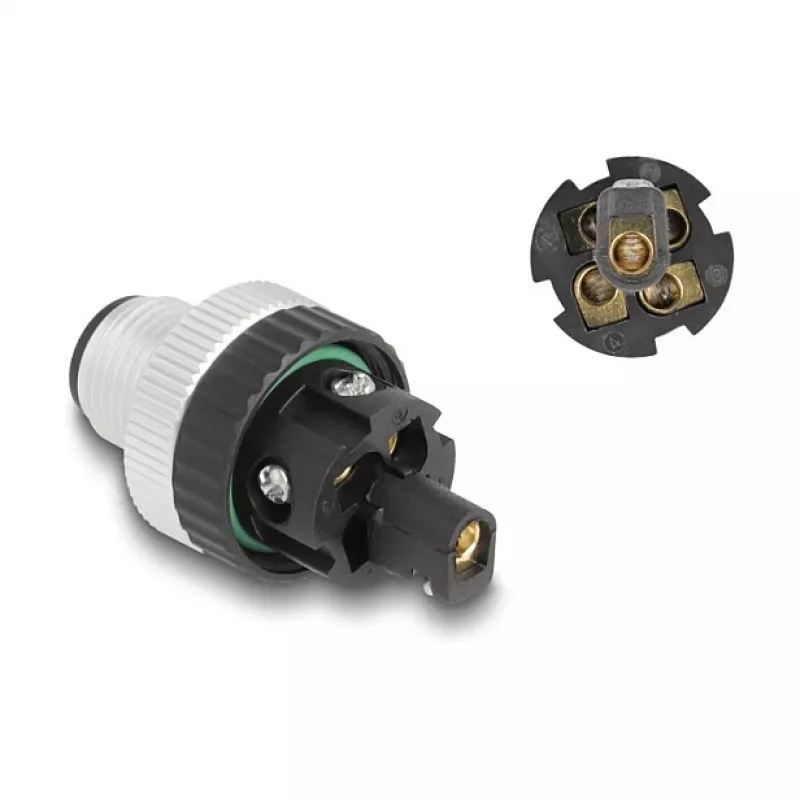

Conector DeLOCK M12 codificação A 5 pinos macho ligação por parafuso

The DeLOCK M12 Connector A-coded 5 pin male screw connection is designed to link a cable via a screw terminal to an M12 A-coded connector, suitable for machine control and automation applications. Constructed with a metal housing and finished in black and silver, the connector measures 56 mm in width and 20 mm in depth and provides a reliable, compact interface for signal transmission.

Advantages

The metal housing ensures mechanical durability and shielding; the screw terminal connection offers a secure and serviceable conductor attachment without the need for crimped contacts. The A-coded 5-pin male format is compatible with standard M12 A-coded ports used in industrial control and automation. Compact dimensions (56 mm × 20 mm) make it suitable for space-constrained installations.

Suitable for

• Machine control interfaces
• Factory automation signal connections
• Sensors and actuators with M12 A-coded female ports
• Industrial cabling requiring screw terminal termination

Key specifications

• Type: M12 A-coded connector, 5 pin, male
• Termination: Screw terminal connection
• Housing material: Metal
• Dimensions: Width 56 mm, Depth 20 mm
• Colour: Black, Silver
• Brand: DELOCK, MPN: 60534, EAN: 4043619605347

How to use

Strip the cable conductors to the appropriate length for the screw terminals. Insert each conductor into the corresponding screw terminal and tighten the screws to secure the connection. Align and tighten the M12 male connector into the mating A-coded female port until fully seated. Verify correct pin assignment and mechanical fastening before powering the system.

Recommendations

Use appropriate wire ferrules or ensure solid/stranded conductors are prepared according to industrial wiring standards; avoid over-tightening the screw terminals. Confirm compatibility with the mating M12 A-coded female connector and follow device grounding and shielding practices where required.
