Conector DeLOCK M8 codificação A 4 pinos conector fêmea ligação por parafuso 60532

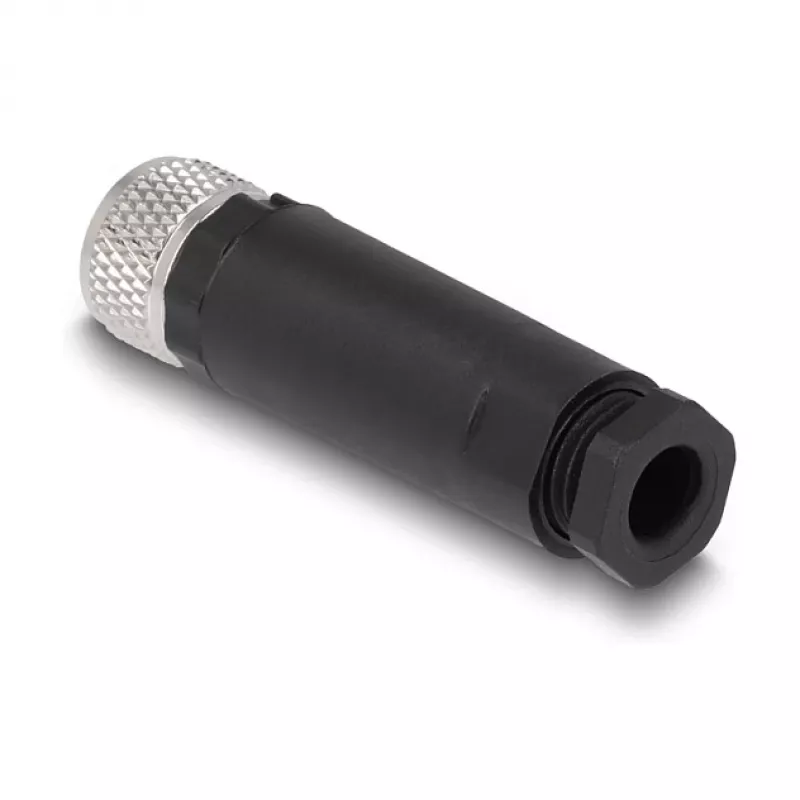

The DeLOCK M8 Connector A-coded 4 pin female screw connection (model 60532) is a compact metal connector designed to join a cable to an M8 A-coded socket using screw terminals. Its robust metal housing and compact dimensions (42 mm width, 12.1 mm depth) provide a durable interface for industrial and automation wiring where a secure, screw-clamped cable connection is required.

Advantages

The metal construction offers improved durability and mechanical protection compared with plastic housings. The screw terminal connection enables a reliable clamped cable contact without the need for crimped ferrules, and the A-coded 4-pin M8 format conforms to common industrial connection standards. The connector’s compact size and standard pin assignment simplify installation in confined control panels and machines.

Suitable for

• Machine control and industrial automation wiring
• Sensors and actuators using M8 A-coded interfaces
• Panel and field connections requiring screw-terminal cable attachment

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 60532
• EAN: 4043619605323
• Connector type: M8 A-coded, 4-pin, female
• Termination: Screw terminal
• Housing: Metal
• Dimensions: 42 mm (width) × 12.1 mm (depth)
• Colour: Black, Silver

How to use

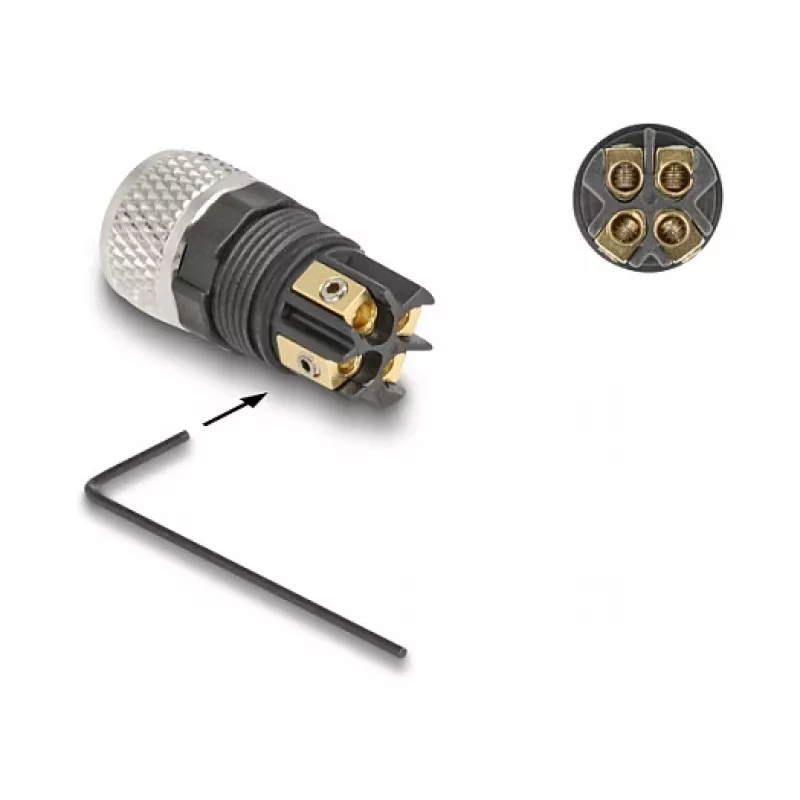

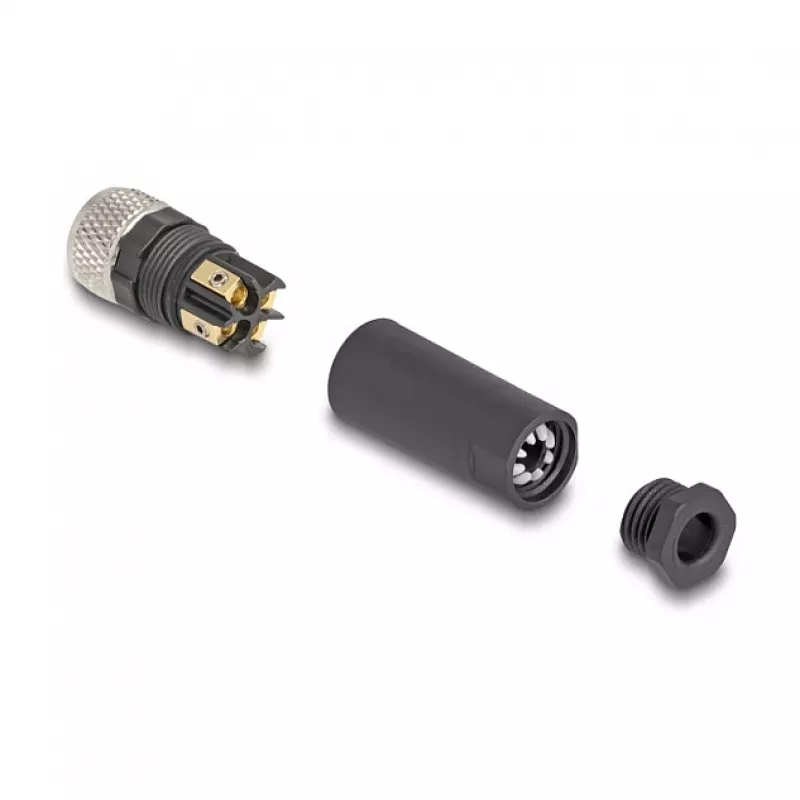

Strip the cable conductors to the appropriate length for the screw terminals, insert each conductor into the corresponding terminal and tighten the screws to secure the connection. Align the connector with the mating M8 A-coded plug and engage until it seats fully. Ensure correct pin assignment and tighten all screws to the manufacturer’s recommended torque for reliable electrical contact.

Recommendations

Use appropriate wire cross-section and, where applicable, ferrules recommended for screw terminals to ensure long-term contact reliability. Inspect and retighten terminal screws after initial operation and follow standard safety and wiring practices for industrial environments.
