Conector EK Water Blocks latão niquelado

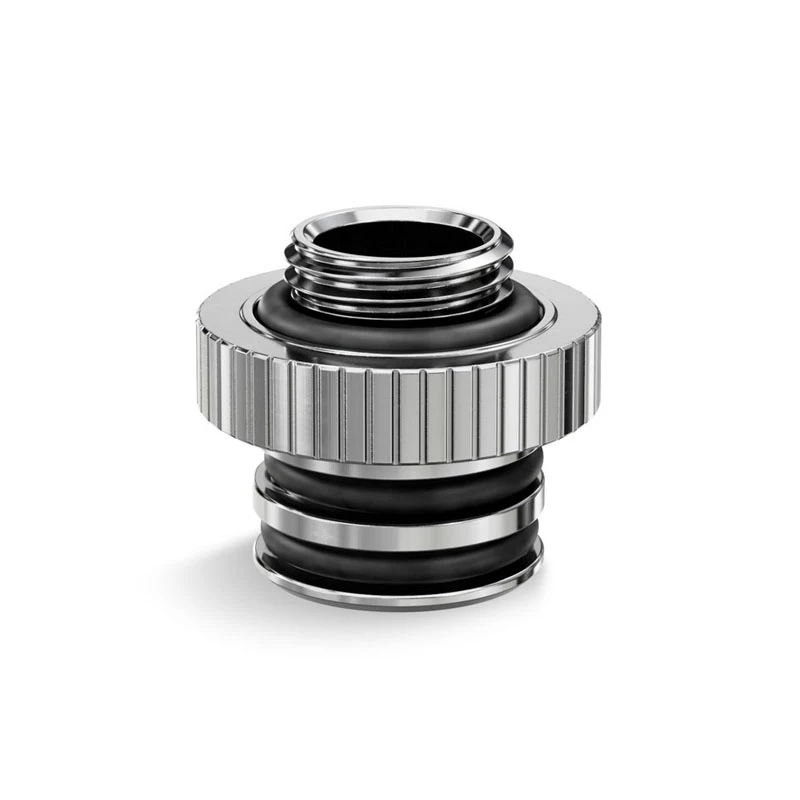

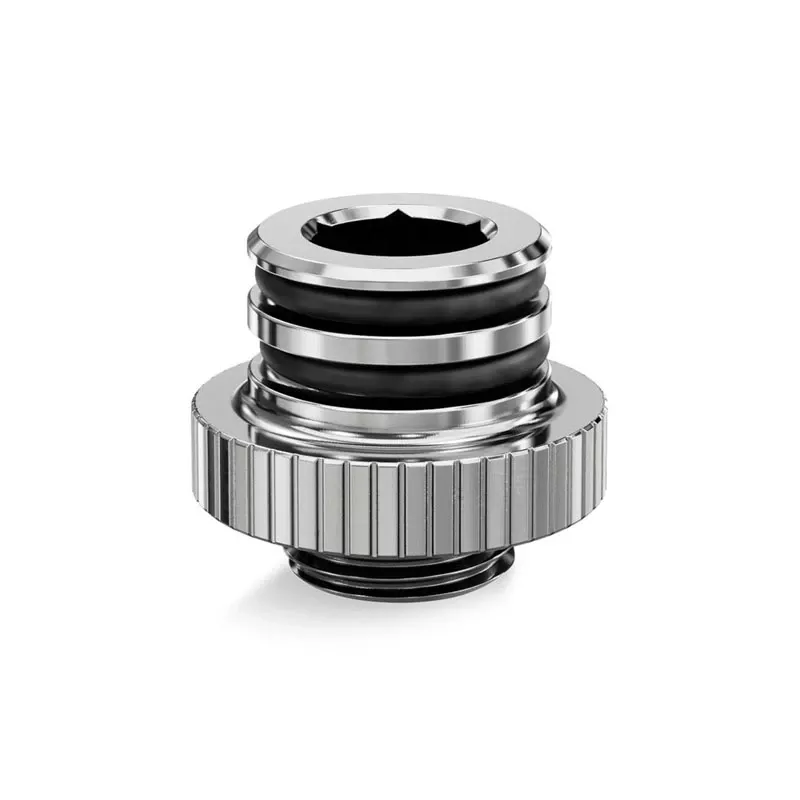

The EK-Quantum Torque Push-In adapter M 7 - Nickel is a nickel-plated brass push-in fitting specifically developed for use with EK-Quantum Reflection² distribution plates. It features a G1/4" male thread with an O-ring on one end and a knurled midsection for grip. The opposite end has a male push-in section with two O-rings that inserts directly into the distro plate without the need to screw it in. The adapter is intended to simplify connections between radiators and Reflection² distribution plates, particularly for attaching 420 mm radiators to the EK-Quantum Reflection² O11D EVO XL distro-plate.

Advantages

The nickel-plated CNC-machined brass construction provides durability and corrosion resistance while maintaining a precise fit. The push-in male end with dual O-rings allows quick, secure insertion into compatible Reflection² distro plates, reducing the mechanical strain and effort required when connecting fittings. The knurled midsection improves handling during installation.

Suitable for

• Connections between 420 mm radiators and EK-Quantum Reflection² O11D EVO XL distro-plate
• Use with EK-Quantum Reflection² distribution plates
• Custom liquid cooling loops requiring G1/4" threaded fittings with push-in connection

Key specifications

• Material: CNC-machined brass, nickel-plated
• Thread type: G1/4" male with O-ring
• Connection type: Male push-in with two O-rings for distro plate
• Compatibility: EK-Quantum Reflection² distribution plates (designed for O11D EVO XL 420 mm radiator attachment)
• Manufacturer part number (MPN) / EAN: 3831109908983

How to use

Ensure the EK-Quantum Reflection² distro plate and the adapter are clean and free of debris. Screw the G1/4" threaded end into the radiator or component until the O-ring seats and creates a seal. Push the male push-in end straight into the matching port on the Reflection² distro plate until it clicks or seats securely. Do not overtighten the threaded end; the push-in end is designed to provide a sealed connection with the distro plate.

Recommendations

Confirm compatibility with your specific Reflection² distro plate model before installation. Inspect O-rings for damage and replace if necessary. Use appropriate thread sealant or PTFE tape on the G1/4" thread only if the manufacturer recommends it; avoid excessive force during insertion to prevent damage to the distro plate ports.
