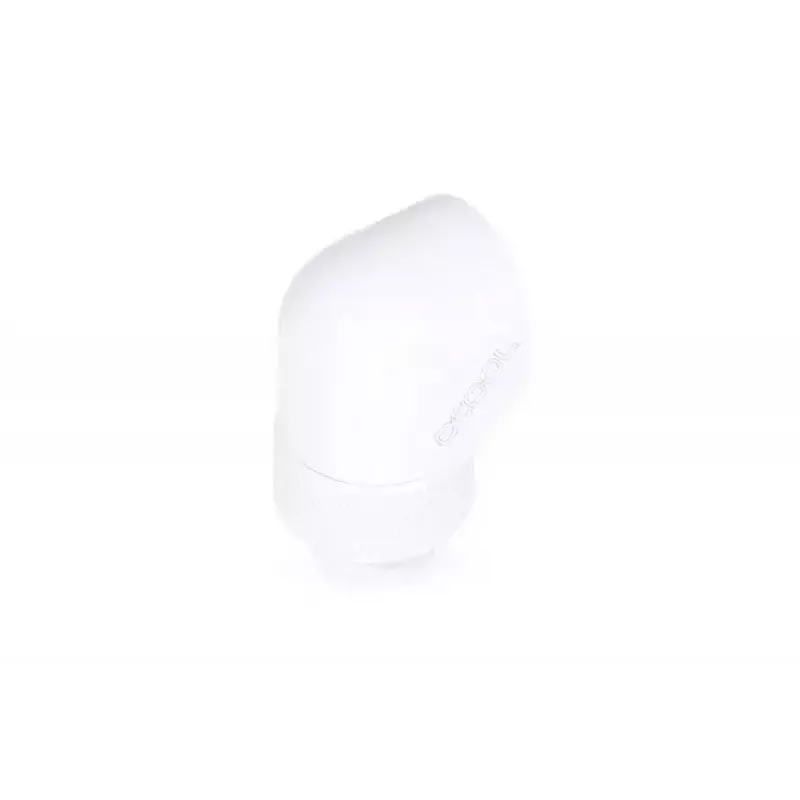

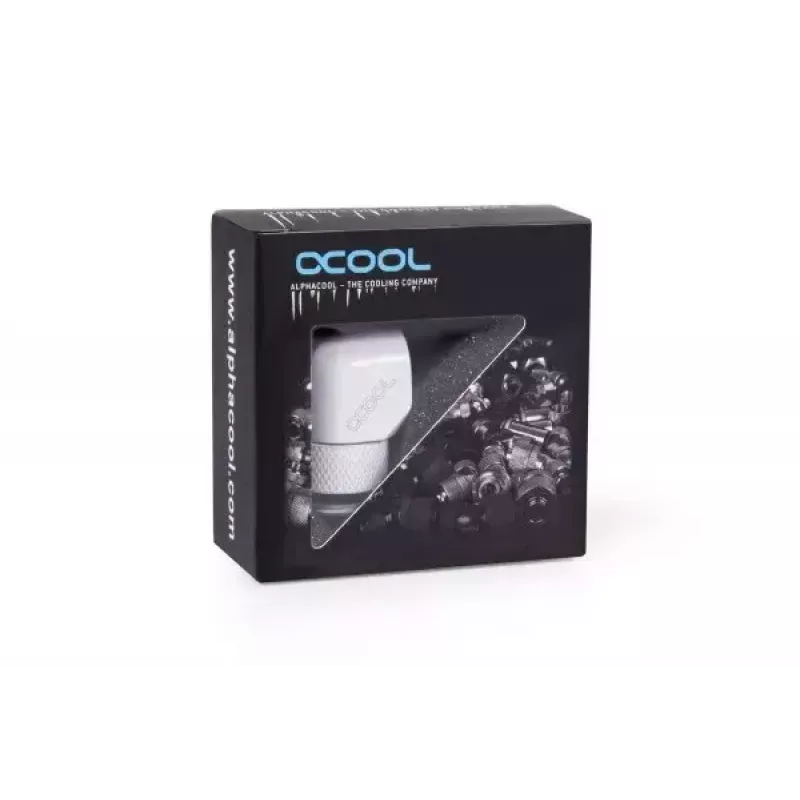

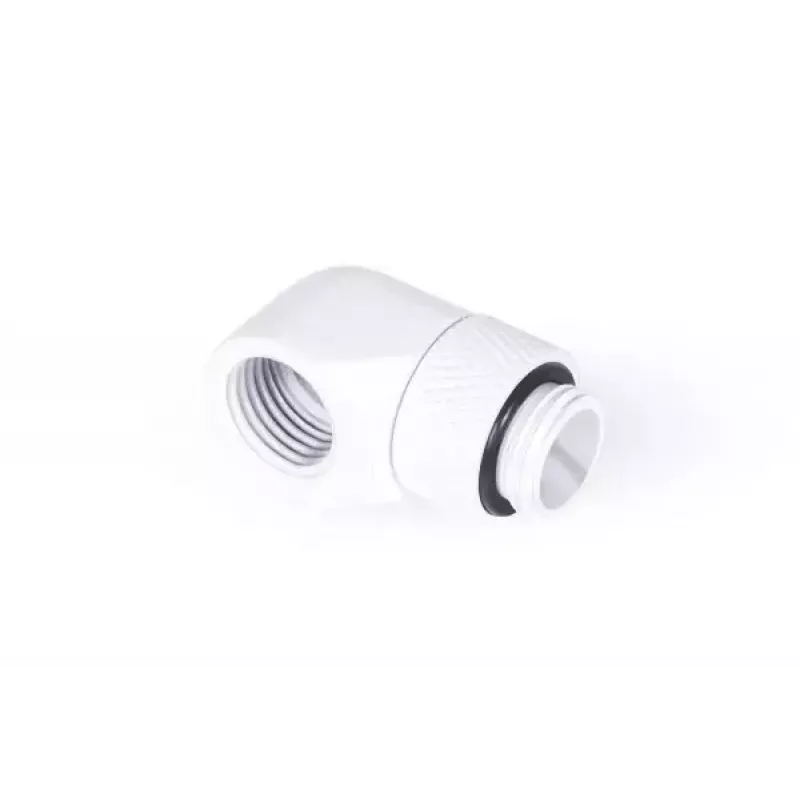

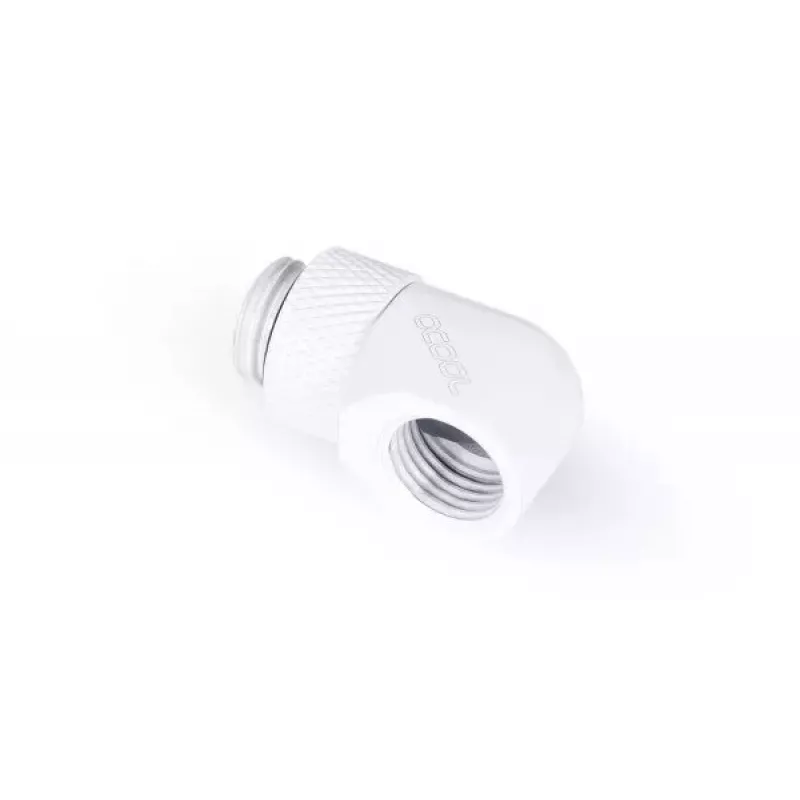

Conjunto de montagem Alphacool Eiszapfen Conector em L rotativo G1/4 rosca macho para G1/4 rosca fêmea branco

The Alphacool Eiszapfen L-connector is a high-end rotatable 90° adapter with G1/4 (1/4") external thread on one side and G1/4 (1/4") internal thread on the other. Manufactured from durable brass and finished in matte white, it is designed for custom water-cooling systems where a compact, reliable angled connection is required. Its small footprint (approximately 18 mm wide × 34 mm deep × 18 mm high) and rotatable outer thread provide flexibility during installation.

Advantages

The connector combines high flow capability with precise machining and a durable coating that is firmly bonded to the substrate to reduce the risk of flaking. The rotatable outer thread allows final orientation after assembly, and the 90° angle helps save space in tight layouts. Available in multiple finishes, the matte white variant offers a discreet appearance while maintaining corrosion resistance typical of brass fittings.

Suitable for

• Custom PC water-cooling loops with limited space
• Connections requiring a 90° change of direction with G1/4 threads
• Installations that benefit from a rotatable external thread for alignment

Key specifications

• Brand: Alphacool
• Model / MPN: 17485
• EAN: 4250197174855
• Type: 90° L-connector, rotatable
• Threads: G1/4 (1/4") external to G1/4 (1/4") internal
• Material: Brass
• Finish: Matte white coating
• Approx. dimensions: 18 mm (W) × 34 mm (D) × 18 mm (H)

How to use

Thread the internal G1/4 side onto the corresponding G1/4 male port until hand-tight, then secure with an appropriate wrench if required, taking care not to overtighten. Attach the mating component to the rotatable G1/4 external thread; orient the connector to the desired position by rotating the outer thread before final tightening. Ensure thread seals or appropriate sealing tape/gaskets are used according to your system requirements to prevent leaks.

Recommendations

Use the Alphacool Eiszapfen L-connector in systems with compatible G1/4 fittings and follow standard water-cooling assembly practices: check for thread compatibility, use correct sealing methods, avoid excessive torque to protect the coating, and perform a pressure/leak test after installation.
