Conector em T / adaptador em T IP68 sem ferramentas Kabelmeister, 3 polos, preto

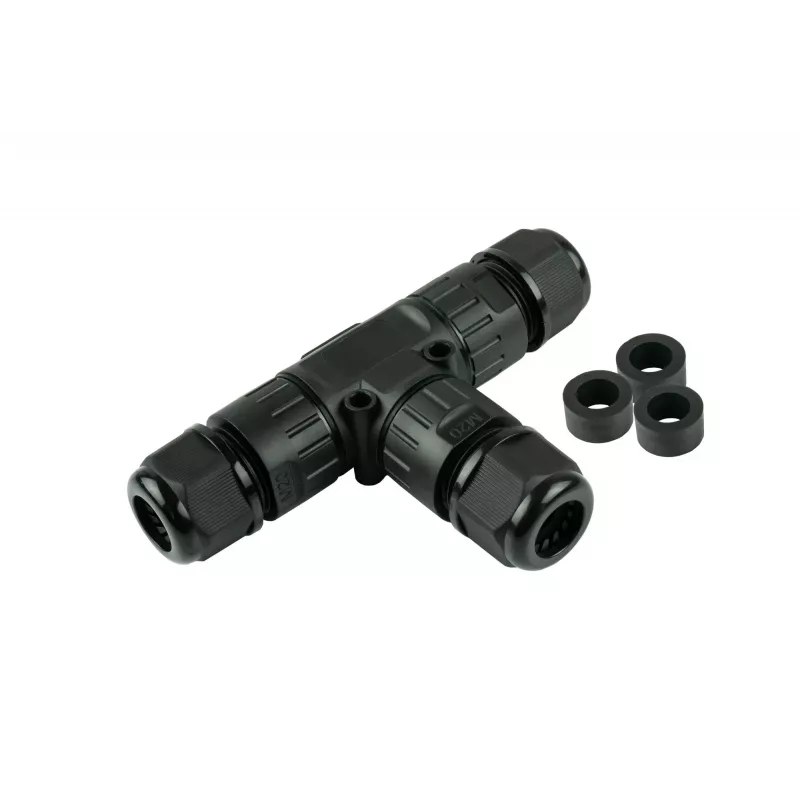

Outdoor electrical connections often fail due to moisture ingress, loose wiring, or the need for specialised tools. The Kabelmeister Tool-less IP68 T-Cable Connector solves this by providing a secure, waterproof, and tool-free branching solution for 3-core cables. Simply insert the stripped wires, tighten the screw terminals, and close the housing – no crimping or soldering required. With an IP68 rating, it withstands dust, heavy rain, and even temporary submersion, making it ideal for garden lighting, irrigation systems, and industrial installations.

Who is it for

This T-connector is perfect for electricians, landscapers, and DIY enthusiasts who need a reliable, maintenance-free junction for outdoor power distribution. It suits applications such as low-voltage garden lighting, pond pumps, underground cable splices, and industrial sensor networks. If you work in harsh environments where water and dust are constant threats, this connector ensures long-term safety and performance.

Main features

• Tool-less wire connection: insert wires and tighten screws – no special tools needed.
• IP68 waterproof and dustproof: fully sealed against moisture, dust, and temporary submersion.
• 3-pole T-branch: splits one input into two outputs for parallel connections.
• Wide cable compatibility: accepts cable diameters from 4 to 12 mm using included silicone seals.
• High electrical rating: 450V AC, 24A – suitable for most outdoor power and lighting circuits.
• Robust materials: PA66 housing, silicone seals, copper contacts.

Specifications

• Connector Type: T-Cable Connector / T-Adapter
• Poles: 3-pole
• Ingress Protection (IP) Rating: IP68
• Connection Method (Internal): Screw Terminal
• Connection Method (External): M20 Cable Gland
• Cable Diameter Compatibility: 4-12 mm (adjustable with included seals)
• Wire Cross-Section Compatibility: 0.5 - 2.5 mm² (AWG 20-14)
• Rated Voltage: 450V AC
• Rated Current: 24A
• Housing Material: PA66 (Polyamide 66)
• Seal Material: Silicone
• Contact Material: Copper
• Operating Temperature: -40°C to +105°C
• Flammability Rating: UL94-V0
• Tool-less Feature: Tool-less Wire Connection
• Certifications: CE, RoHS
• Application: Outdoor, Garden, Industrial, Underground, Lighting
• Number of Cable Entries: 3 (1 input, 2 outputs)

Tips

For best results, ensure wires are stripped to the correct length and fully inserted before tightening the screws. Use the included silicone seals to match your cable diameter and guarantee a watertight fit. Periodically check the housing for damage, especially in high-traffic or extreme environments.
