Conector fêmea angular CEE Brennenstuhl 1080980100 230 V 16 A IP44 campismo caravana exterior

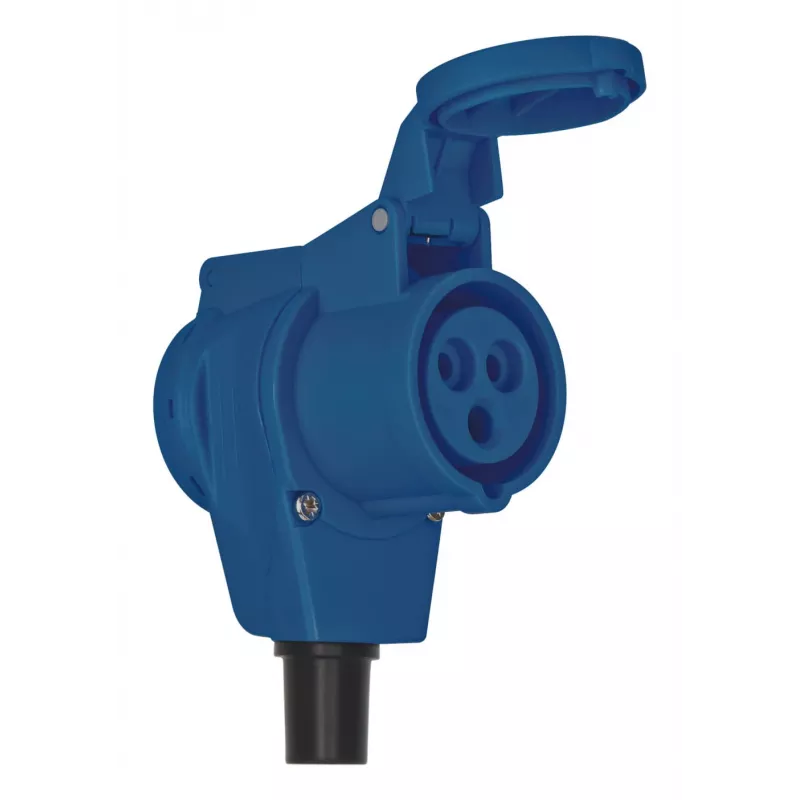

The Brennenstuhl 1080980100 CEE Angle Coupling is a robust and reliable connector designed for camping, caravan, and outdoor applications. It provides a secure 90-degree angled connection for CEE plugs, ensuring flexibility in tight spaces. With a rated voltage of 230 V and current of 16 A, it is suitable for powering various devices and equipment. The IP44 protection rating makes it splash-proof and dust-resistant, ideal for outdoor use.

Advantages

This CEE angle coupling offers a space-saving 90-degree cable entry, reducing strain on the cable and connector. The integrated strain relief and screw terminals ensure a secure and durable connection. Its high-quality plastic housing and nickel-plated brass contacts provide excellent conductivity and long-lasting performance.

Suitable for

• Camping and caravan power connections
• Outdoor events and temporary power setups
• Industrial and construction sites requiring robust connectors

Key specifications

• Rated Voltage: 230 V
• Rated Current: 16 A
• Protection Rating: IP44
• Number of Poles: 3-pole (2P+E)
• Connector Type: CEE Angle Coupling, Female (Socket)
• Cable Entry Angle: 90 degrees
• Max. Cable Cross-Section: 3 x 2.5 mm²
• Housing Material: High-quality plastic
• Color: Blue
• Standard Compliance: IEC 60309
• Operating Temperature: -25°C to +40°C
• Contact Material: Nickel-plated brass
• Connection Method: Screw terminals
• Certifications: CE

Recommendations

For optimal performance, use with compatible CEE plugs and cables. Ensure proper installation by a qualified electrician. This product is not intended for permanent outdoor installation without additional weatherproofing.
