Conector fêmea BNC para cabo Telegärtner Crimp G03 50 Ohm, Crimp/Crimp, A2913, G03 (RG178 B/U) - 1 unid. (J01001B0060)

Engineered for DC to 4 GHz performance, this BNC cable jack delivers reliable 50 Ohm connectivity for RF, data, video, and test & measurement applications.

Overview

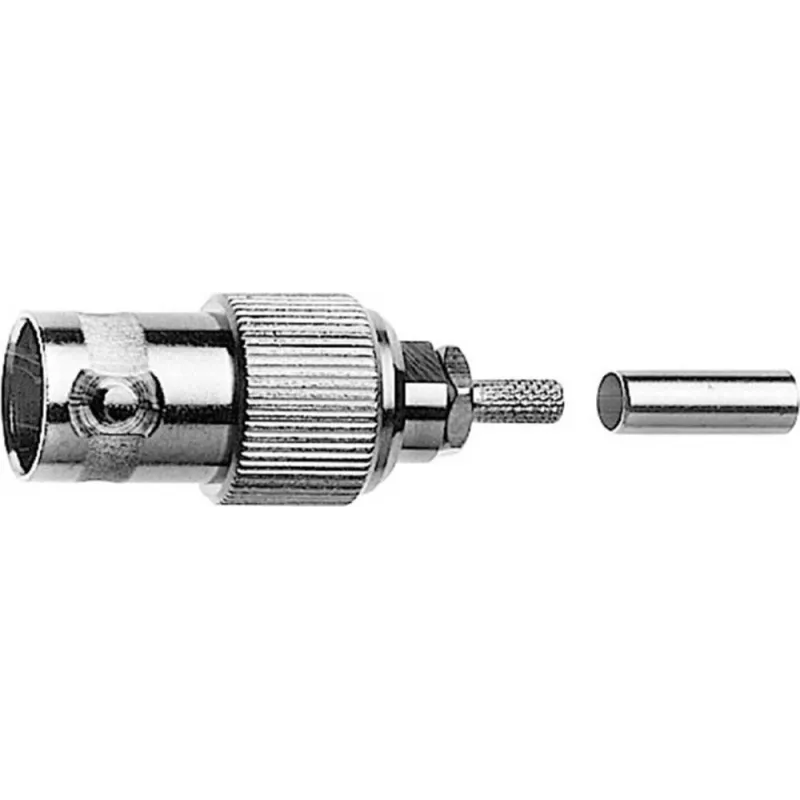

The Telegärtner J01001B0060 is a BNC female cable connector designed for crimp termination on RG178 B/U coaxial cable. Its nickel-plated brass body and gold-plated contacts ensure excellent conductivity and corrosion resistance. The PTFE insulator provides stable electrical characteristics across a wide temperature range from -40°C to +85°C.

What stands out

• Frequency range DC to 4 GHz with VSWR ≤ 1.3 at 3 GHz
• Gold-plated center contact and beryllium copper construction for durability
• Crimp/crimp termination for secure, tool-assisted installation
• 500 V RMS voltage rating and 500 mating cycles

Technical details

• Connector Series: BNC
• Gender: Jack (Female)
• Impedance: 50 Ohm
• Termination Style: Crimp (outer & inner conductor)
• Cable Group: G03 (RG178 B/U)
• Body Material: Brass, nickel plated
• Contact Material: Brass / Beryllium Copper, gold plated
• Insulator: PTFE
• Operating Temperature: -40°C to +85°C

Our verdict

A professional-grade BNC connector for precise RF terminations on RG178 cable, built to deliver consistent performance in demanding environments.
