Conector fêmea BNC para cravar RG-174 RG-316 DeLOCK 90014

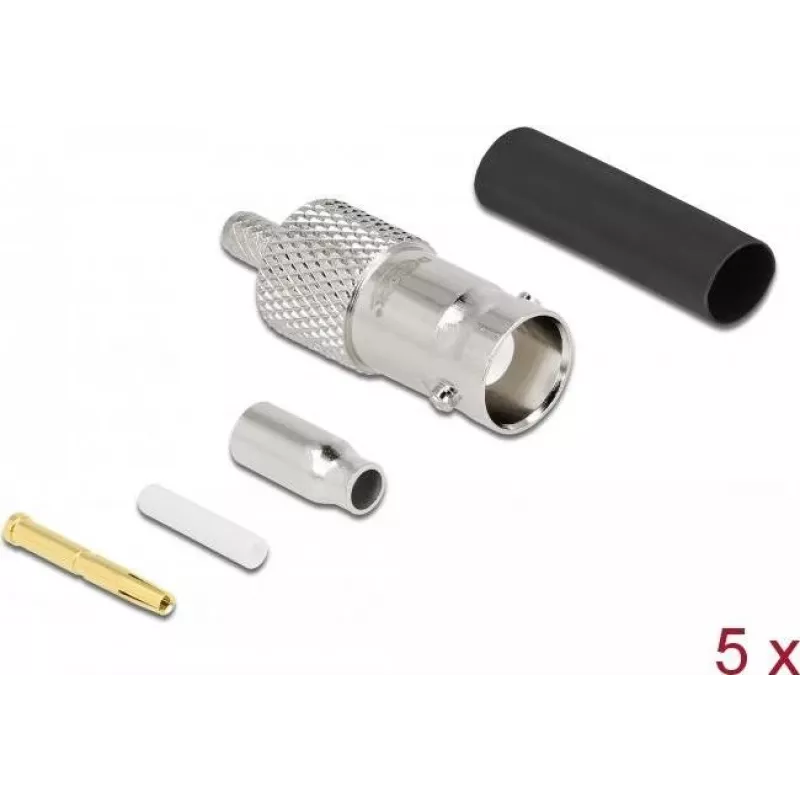

The DeLOCK BNC jack for crimping RG-174 and RG-316 cables is a female RF connector with nickel-plated contacts and a silver finish. It is designed for reliable connections in radio frequency applications and comes in packs of five. The connector dimensions are approximately 11.3 mm (width) × 11.3 mm (height) × 30.3 mm (depth).

Advantages

The jack supports crimp termination for RG-174 and RG-316 cables, features nickel-plated contacts for improved corrosion resistance and conductivity, and is supplied in a multi-pack of five pieces for convenient use across several installations.

Suitable for

Key specifications

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid and dielectric according to the connector manufacturer’s crimping instructions. Insert the conductor and dielectric into the BNC jack so that the center contact and outer sleeve align properly, then crimp the ferrule to secure the connection. Verify mechanical stability and continuity before installation into RF equipment.

Recommendations

For reliable RF performance, use the correct crimping die for RG-174 or RG-316 and ensure clean, oxide-free conductor surfaces. Store unused connectors in a dry environment to prevent corrosion of the nickel-plated contacts.
