Conector fêmea N para cravar LMR 400 DeLOCK 90023

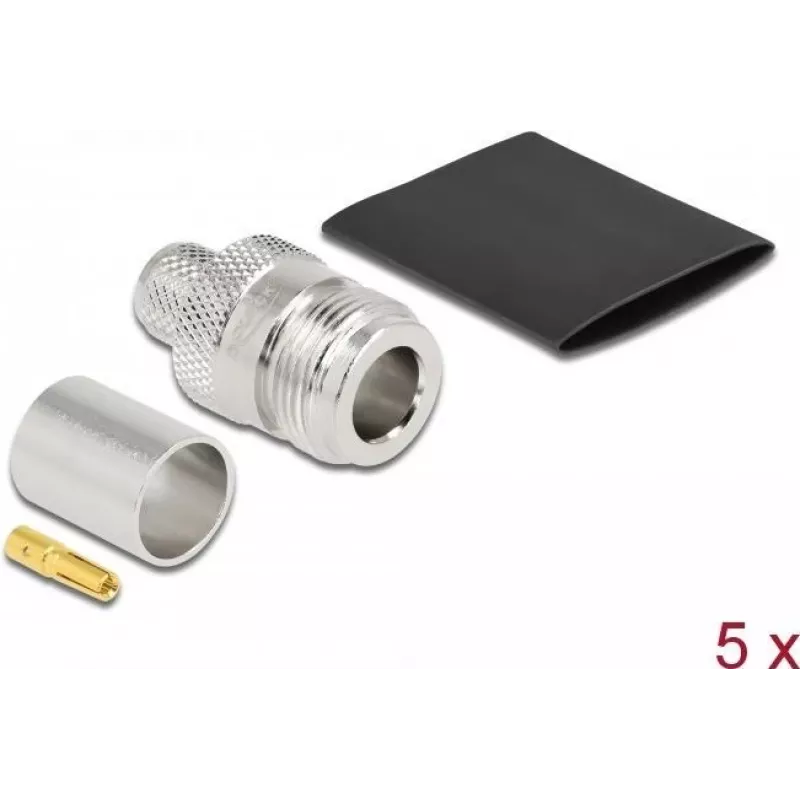

The DeLOCK N jack for crimping LMR 400 is a coaxial connector designed for radio frequency applications up to 6000 MHz. Supplied in a set with matching shrink tubes, this N jack provides nickel-plated contacts and compact dimensions (16.5 mm width, 27.8 mm depth, 16.5 mm height) for reliable, durable connections in professional RF assemblies.

Advantages

The connector supports high-frequency transmission up to 6000 MHz and uses nickel-plated contacts to resist corrosion and ensure consistent electrical performance. The delivery includes shrink tubes for strain relief and environmental protection, and the compact form factor simplifies installation in tight spaces. The set contains five connectors, suitable for multiple installations or replacements.

Suitable for

Key specifications

How to use

Strip the LMR 400 cable according to the connector’s crimping specification, insert the prepared cable into the N jack and crimp the ferrule securely using the appropriate crimping tool. Slide the supplied shrink tube over the joint and apply heat to create strain relief and environmental protection. Verify the mechanical and electrical connection before placing the assembly into service.

Recommendations

Use a matched crimping die for LMR 400 and inspect nickel-plated contacts for cleanliness before assembly. Apply heat evenly to the shrink tube to avoid gaps and ensure long-term stability of the connection.
