Conector fêmea RCA (Cinch) ShiverPeaks 52091-R dourado, ficha vermelha, conector fêmea de áudio individual

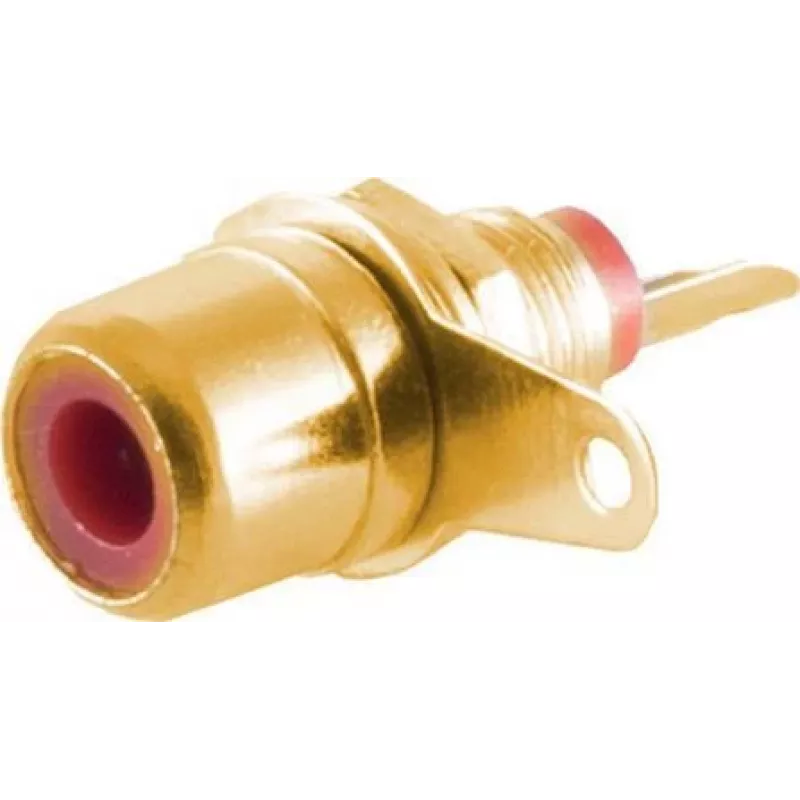

The ShiverPeaks 52091-R is a single female RCA (Cinch) panel socket with gold-plated contacts and a red-colored housing designed for audio and A/V equipment. It accepts standard RCA plugs for line-level signals, phono inputs/outputs, and component connections, making it suitable for replacing or upgrading a single panel-mounted jack on receivers, amplifiers, mixers, or home theater units. The gold plating improves contact reliability and reduces corrosion risk, while the single, clearly colored connector simplifies channel identification during installation.

Advantages

This RCA socket offers corrosion-resistant gold-plated contacts for improved conductivity and long-term signal integrity. The red housing provides clear visual identification for the right channel or designated signal path. Its compact, panel-mount design fits standard cutouts and supports straightforward replacement of worn or damaged jacks without altering external cabling. Constructed for audio use, it maintains stable line-level connections and is compatible with common RCA plug designs.

Suitable for

• Replacing a single panel-mounted RCA jack in amplifiers, receivers, or preamps
• Upgrading phono or line-level inputs and outputs on mixers and audio interfaces
• Home theater and A/V component cabling where a red right-channel connector is required
• DIY audio projects and custom panels requiring a single female RCA socket

Key specifications

• Connector type: female RCA (Cinch) panel socket
• Contact plating: gold-plated contacts for improved conductivity and corrosion resistance
• Housing color: red for channel identification
• Mounting: panel-mounted single jack compatible with standard cutouts
• Signal compatibility: line-level, phono, and component analog audio signals

How to use

Mount the socket into the panel cutout and secure it according to the device’s mounting method. Solder or attach the signal and ground connections to the rear terminals following the equipment wiring scheme, observing polarity and shielding requirements. Once installed, connect standard RCA male plugs to the front-facing socket for reliable line-level or phono signal transfer. Ensure the device is powered off while performing installation to avoid short circuits or equipment damage.

Recommendations

When installing, use proper soldering technique and strain relief for rear cabling to maintain a stable connection. Match the red connector with the corresponding right-channel or designated signal path to avoid channel confusion. For long-term reliability, periodically inspect contacts for oxidation and replace the socket if mechanical wear affects connection quality.
