Conector fêmea Type 2 Akyga AK-SC-E25 1-Phase 32A ficha

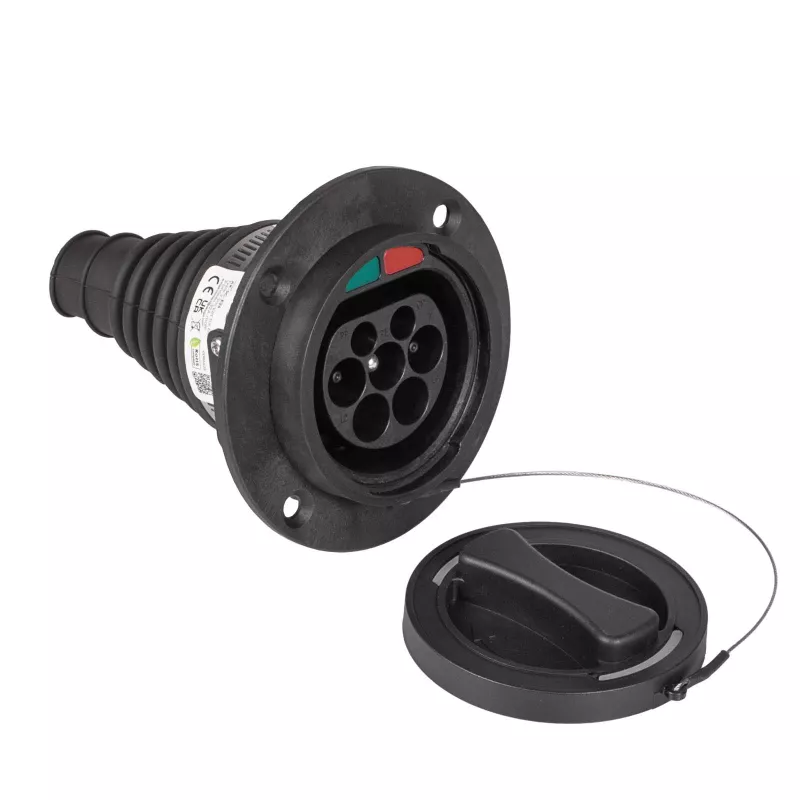

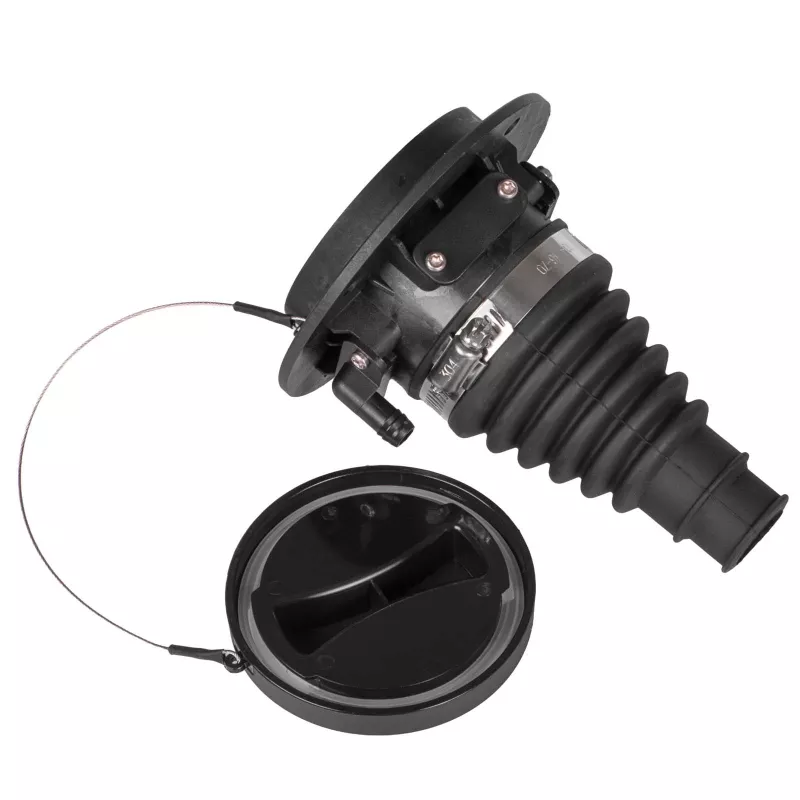

The Akyga AK-SC-E25 Type 2 socket is a male connector designed for electric vehicle (EV) charging systems. It is suitable both for building extension leads and for replacing worn or damaged sockets in existing devices, such as charging stations (EVSE) or wallboxes. The socket operates in single-phase mode with a maximum current of 32 A and has an IP44 protection rating.

Key features

• Type 2 male connector for EV charging systems
• Suitable for building extension leads and replacing worn or damaged sockets in existing devices such as charging stations (EVSE) or wallboxes
• Single-phase operation with maximum current up to 32 A
• IP44 protection rating for resistance to splashes and dust

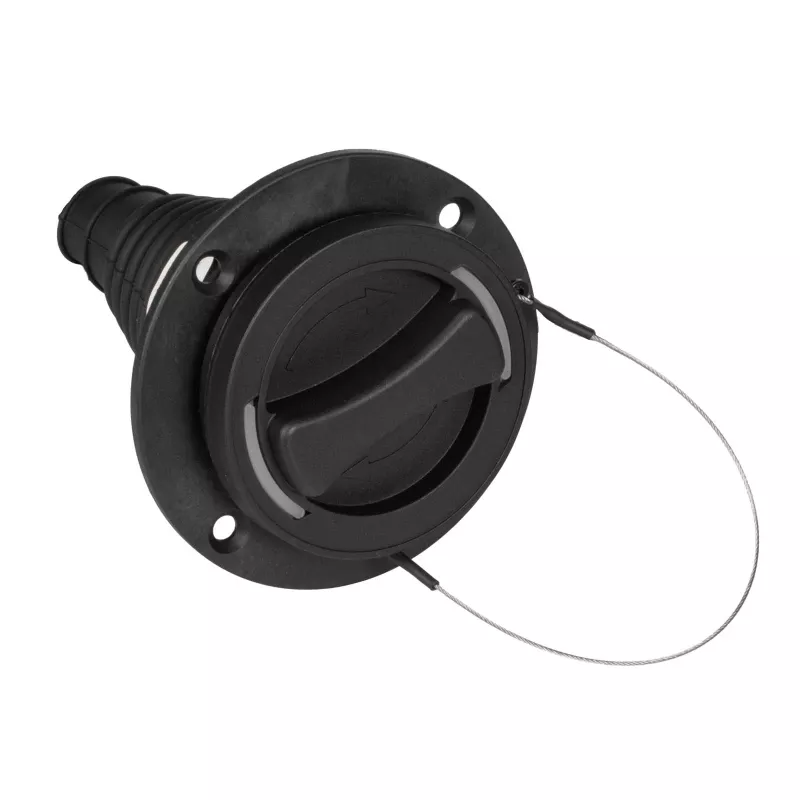

• Screw-on protective cover to protect contacts when not in use
• Silver-plated plugs
• Black colour

Specifications

• Brand: Akyga
• MPN: AK-SC-E25
• Number of phases: 1 phase
• Maximum current: 32 A

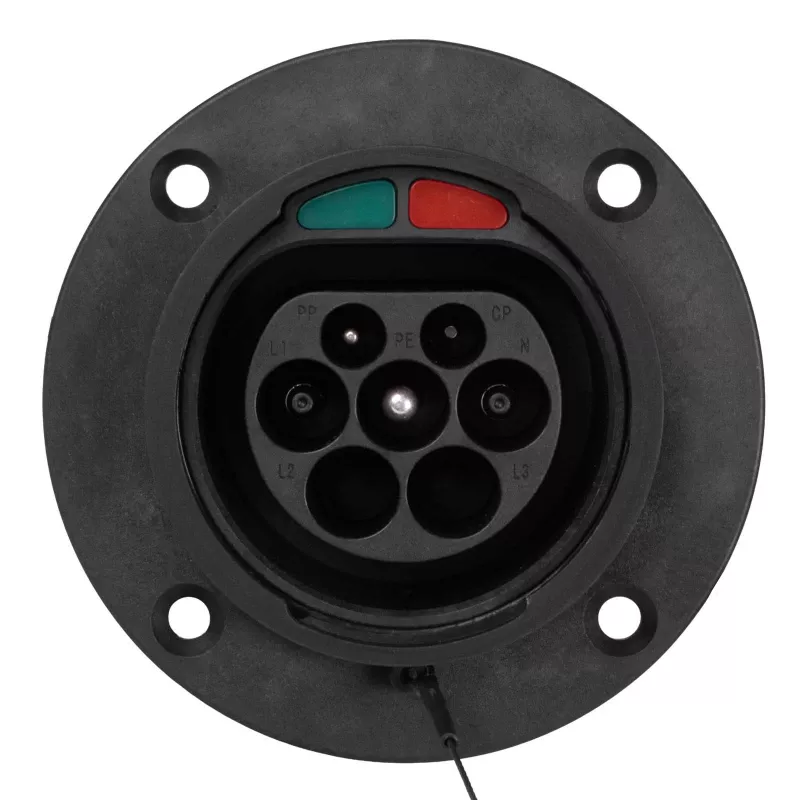

• Output connector: Type 2 (IEC 62196-2) Male Connector
• IP Rating: IP44
• Plated plugs: Silver
• Product colour: Black
• Product size (L x W x H): 160 x 120 x 120 mm
• Net weight: 363 g
