Conector M12 DeLOCK codificação A 4 pinos conector fêmea 90° angular metal

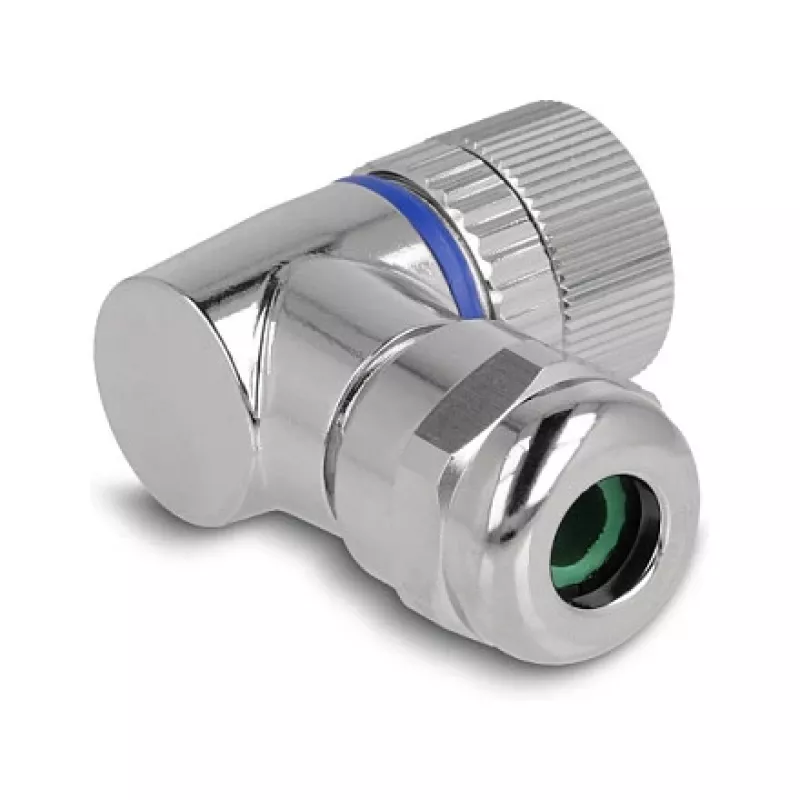

The DeLOCK M12 Connector A-coded 4 pin female 90° angled metal is designed to connect a cable via a screw terminal to an M12 interface, suitable for machine control and automation applications. The compact 90° angled metal housing reduces required installation space while providing a robust connection for industrial environments. Dimensions: 44 mm width, 35 mm depth, 20.2 mm height.

Advantages

The metal construction offers mechanical durability and shielding against electromagnetic interference. A-coded 4-pin M12 interface ensures compatibility with standard sensors and actuators. The screw terminal connection simplifies wiring without the need for specialised crimping tools. The 90° angled design enables space-saving mounting in confined panels or equipment.

Suitable for

• Machine control systems
• Industrial automation devices
• Sensor and actuator connections
• Panel installations with limited depth

Key specifications

• Brand: DELOCK
• Model / MPN: 60565
• EAN: 4043619605651
• Connector type: M12 A-coded, 4 pin, female
• Orientation: 90° angled
• Housing material: metal

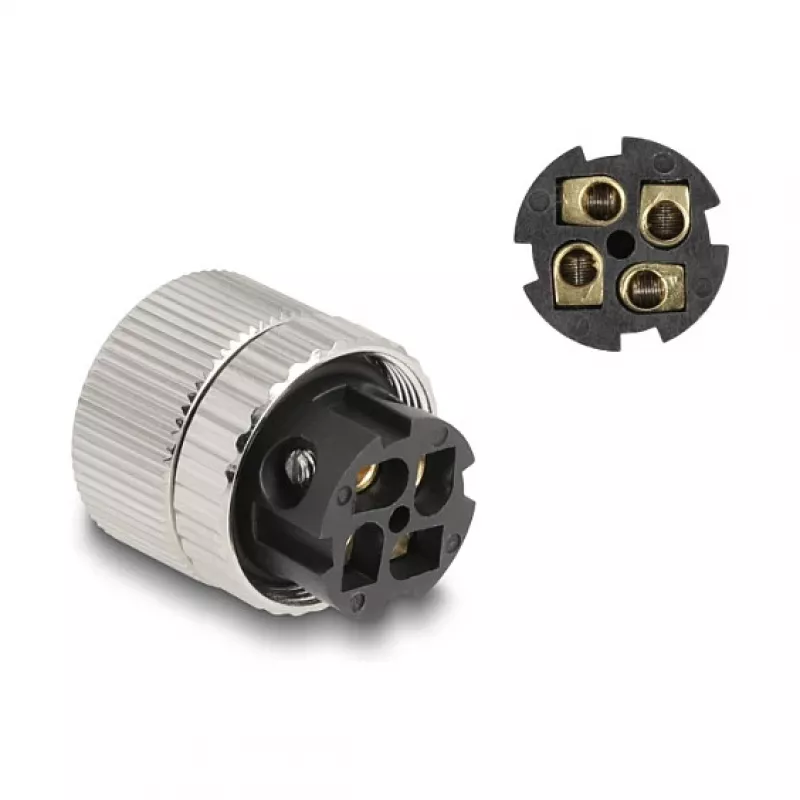

• Connection: screw terminal
• Dimensions: 44 mm (W) x 35 mm (D) x 20.2 mm (H)

How to use

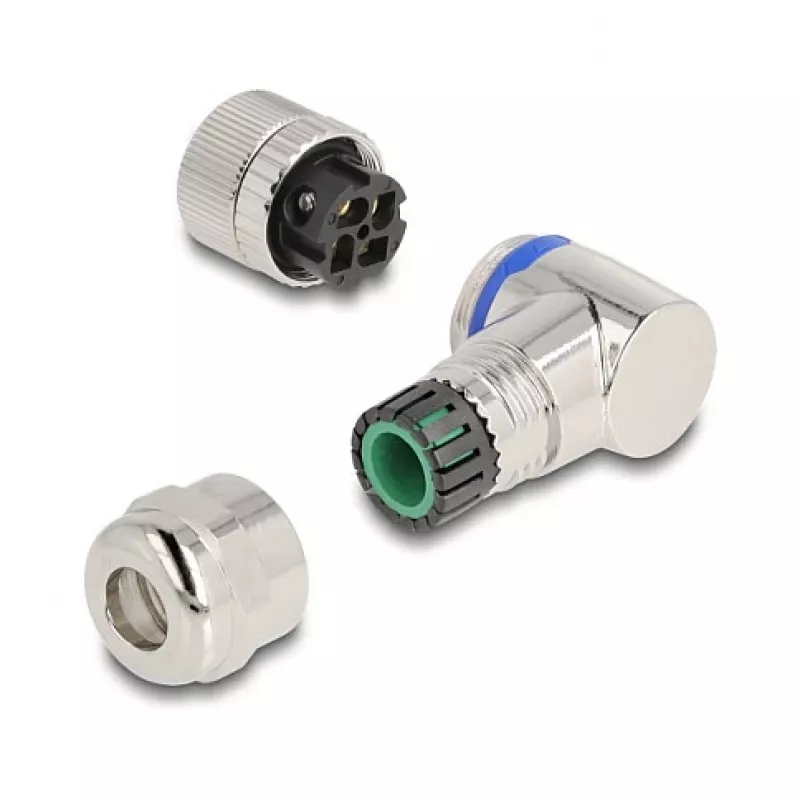

Prepare the cable by stripping the conductor insulation to the length required for the screw terminals. Insert each conductor into the corresponding screw terminal according to the wiring diagram of the connected device and tighten the screws securely. Align the M12 female connector with the mating male connector and engage it until fully seated. For 90° installations, orient the connector so the angled housing fits the available space and verify mechanical clearance before final fastening.

Recommendations

Use appropriate torque values for the screw terminals and tighten the M12 coupling according to manufacturer specifications. Select cables with suitable insulation and conductor size for the application environment. For installations exposed to vibration or moisture, consider additional strain relief and sealing measures.
