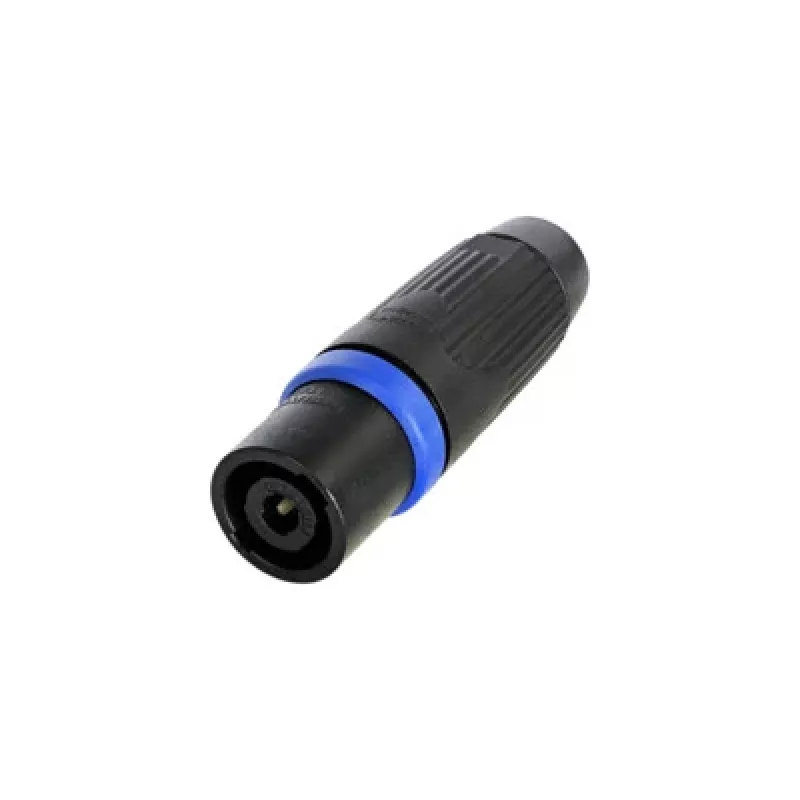

Conector macho de cabo de altifalante speakON Neutrik NLT4MXX-BAG de 4 polos, preto

The Neutrik NLT4MXX-BAG is a 4-pole male speakON speaker cable connector engineered for professional audio applications. Its robust quick-lock system ensures secure, vibration-proof connections, while silver-plated contacts deliver reliable signal integrity for high-power speaker systems.

Advantages

The connector features a durable polyamide housing with a latch lock mechanism that prevents accidental disconnection. Screw-type terminals accept wires from 1.5 to 4 mm² (16–12 AWG), and solder termination supports up to 6 mm² (10 AWG), offering flexibility for various cable assemblies. With a current rating of 30 A per contact and a voltage rating of 250 V AC, it handles demanding audio power requirements. The design supports over 5000 mating cycles and operates across a temperature range of -30 °C to +80 °C.

Suitable for

• Professional PA and concert sound systems
• Studio monitor connections
• High-power amplifier-to-speaker cabling
• Portable audio rigs requiring rugged connectors

Key specifications

• Connector type: speakON speaker cable connector
• Gender: male
• Number of poles: 4
• Termination: screw terminals (1.5–4 mm²) or solder (up to 6 mm²)
• Rated current: 30 A per contact
• Rated voltage: 250 V AC
• Cable outer diameter: 6–15 mm
• Contact plating: silver
• Housing material: polyamide (PA 6.6)
• Locking mechanism: quick lock (latch lock)
• Mating cycles: >5000
• Temperature range: -30 °C to +80 °C
• Dielectric strength: 4 kVdc
• Insulation resistance: >1 GΩ
• Flammability rating: UL94 V-0
• Packaging: bag

Recommendations

Pair with Neutrik NL4FX or compatible 4-pole female chassis connectors for a complete, reliable speaker connection system.
