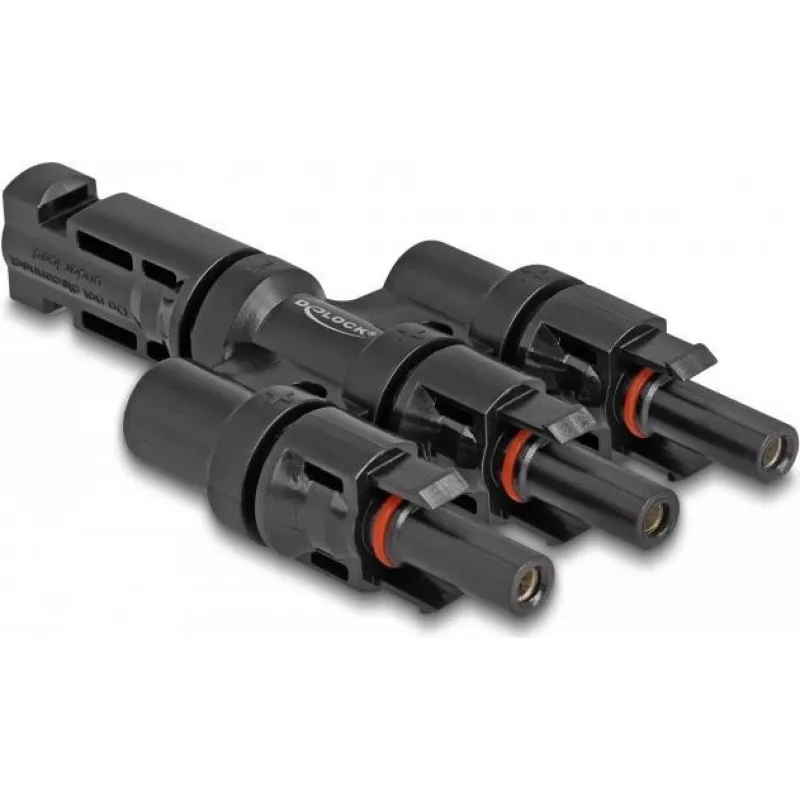

Conector para painel solar DeLOCK DL4 1 macho para 3 fêmea preto

DeLOCK DL4 Solar Panel Connector 1 Male to 3 Female in black is a compact adapter designed to split one solar panel output to three downstream connectors. It supports transmission of power from a photovoltaic system and features a snap-in mating mechanism for secure electrical contact. The connector housing provides protection against dust and water to maintain reliable operation in outdoor installations.

Advantages

The DL4 connector set offers a snap-in design that prevents accidental disconnection while allowing release with the appropriate tool. Its IP67-rated housing protects against dust and temporary immersion in water. The compact dimensions make it suitable for space-constrained installations and the 1-to-3 configuration simplifies parallel connections of multiple modules.

Suitable for

• Connecting a single solar panel to three downstream lines
• Extending or reconfiguring photovoltaic string connections
• Outdoor solar installations requiring dust- and water-resistant connectors

Key specifications

• Brand: DELOCK
• Model / MPN: 60024
• EAN: 4043619600243
• Configuration: 1 male to 3 female
• Color: Black
• Dimensions (W×D×H): 39 × 104 × 18 mm
• Protection class: IP67 (dust and water resistant)
• Origin: Made in China

How to use

Insert the male DL4 plug into the corresponding female solar connector until the snap-in mechanism engages. Connect the three female outputs to the downstream cables or panel inputs as required. To disconnect, use the appropriate unlocking tool to release the snap-in latch and separate the connectors. Ensure all connections are made with the photovoltaic system de-energised and follow applicable electrical safety procedures.

Recommendations

Do not expose the connectors to permanent submersion beyond IP67 limits and avoid mechanical strain on the cable entry. Check seals and connections periodically and perform installation or maintenance only when the system is switched off.
