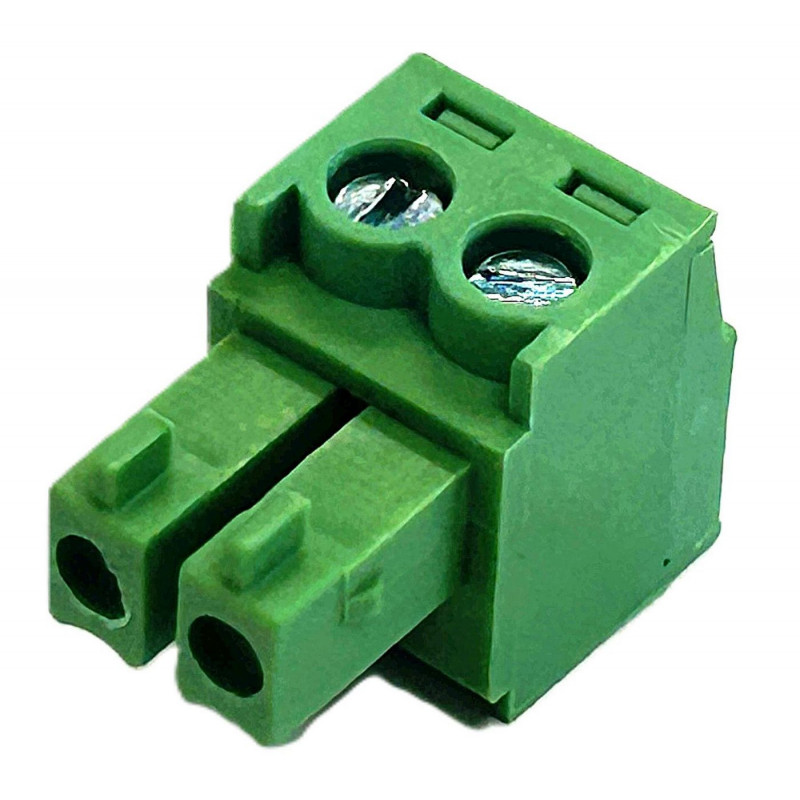

Conector Phoenix verde de 2 polos VIVOLINK, passo 5,08 mm, ligação por parafuso, 12 A, 320 V

This PCB plug connector provides a reliable screw connection for two conductors with a 5.08 mm pitch. Its green polyamide housing and tin-plated copper alloy contacts ensure secure terminations in industrial and automation applications.

Advantages

The screw clamp mechanism accommodates solid or stranded wires from 0.2 to 2.5 mm² (24–12 AWG), offering flexibility across installations. The UL 94 V-0 flammability rating and wide operating temperature range of -40 °C to 100 °C make it suitable for demanding environments.

Suitable for

• PCB connections in control cabinets
• Automation and industrial electronics
• Field wiring with screw termination

Key specifications

• Connector type: PCB plug, 2 positions
• Pitch: 5.08 mm
• Connection method: screw connection
• Rated voltage: 320 V (IEC), 300 V (UL)
• Rated current: 12 A (IEC), 15 A (UL)
• Wire gauge: 0.2–2.5 mm² (24–12 AWG)
• Color: green
• Housing material: polyamide (PA)
• Contact material: copper alloy, tin-plated
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to 100 °C
• Stripping length: 7 mm
• Screw thread: M3
• Tightening torque: 0.5–0.6 Nm

Recommendations

Choose this connector for secure, field-serviceable PCB terminations where a proven screw clamp design is required.
