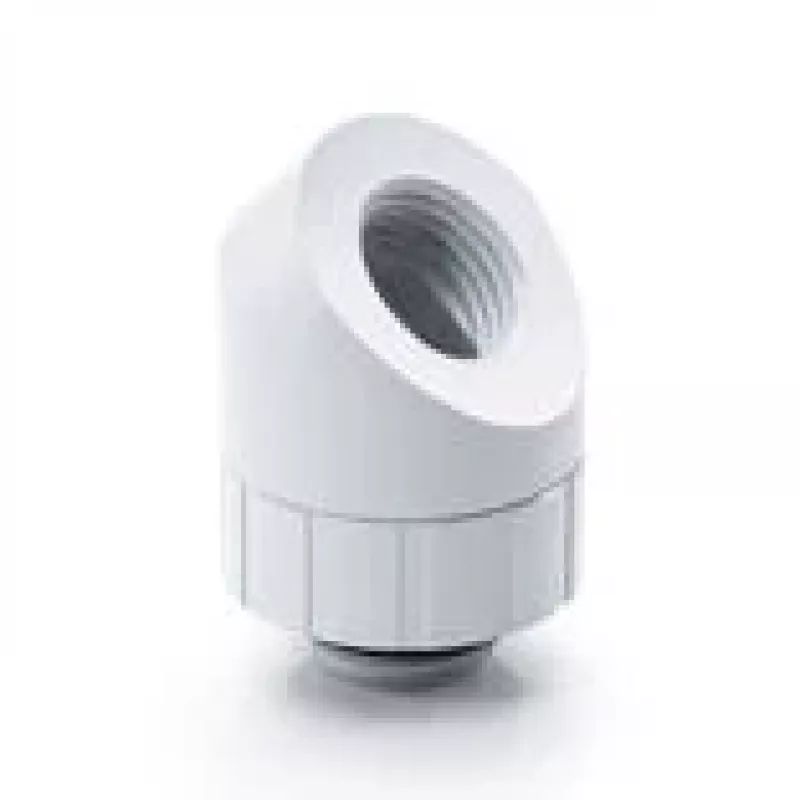

Conector rotativo de 45° BitsPower Artemis – branco ártico (BPM-AT45R-WH)

BitsPower Artemis 45° rotary fitting in Arctic White is a 45-degree angled rotary connector designed for custom PC liquid cooling loops. The fitting combines a fixed angled body with a rotatable head to simplify tube routing and reduce mechanical stress on soft and rigid tubing. It is compatible with standard G1/4 threaded ports used across radiators, pumps, reservoirs and blocks, providing a compact solution to change flow direction without bending or kinking tubes.

Advantages

The rotary joint allows 360-degree rotation of the mating portion while maintaining a sealed connection, improving installation flexibility and alignment between components. The 45° angle reduces the need for tight bends, which helps preserve tubing integrity and maintains optimal coolant flow. Finished in Arctic White, the fitting offers a consistent aesthetic for light-colored builds while delivering the mechanical reliability expected from BitsPower components.

Suitable for

• Custom PC liquid cooling loops with soft or rigid tubing
• Radiator, pump or reservoir connections requiring angled routing
• Compact builds or tight layouts where space for tube bending is limited
• Maintenance and upgrades where quick disassembly and alignment are beneficial

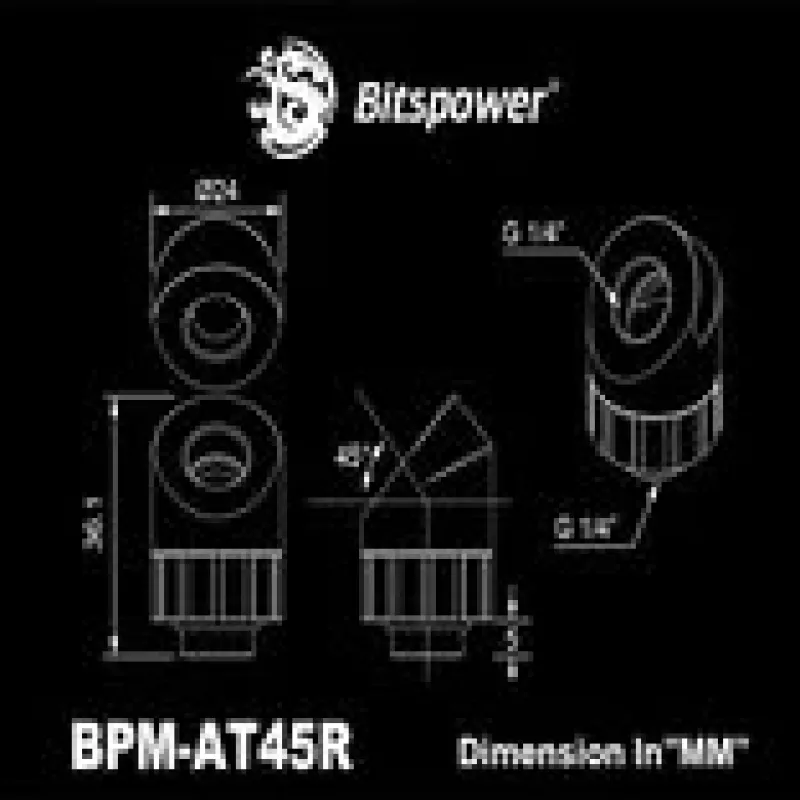

Key specifications

• Connector angle: 45 degrees
• Thread standard: G1/4 compatible
• Rotary function: 360° rotatable head for alignment
• Intended tubing types: soft (flexible) and rigid tubing
• Finish/color: Arctic White
• Material: metal construction with sealing elements (O-rings)

How to use

Confirm that mating ports accept G1/4 threads and ensure threads and sealing surfaces are clean. Thread the fitting into the port by hand to avoid cross-threading, then tighten to a snug fit using suitable tools while avoiding excessive torque. Route tubing so the 45° angle provides a smooth path; rotate the head as needed to achieve final alignment before fully securing. Check sealing elements and perform a leak test according to your system’s maintenance procedure before powering the loop.

Recommendations

Use compatible O-rings and avoid over-tightening to prevent damage to threads and seals. For rigid tubing, ensure proper cutting and deburring and use adequate compression or clamping methods where required. When assembling light-colored builds, verify that contact with colored coolants will not stain visible surfaces over time.
