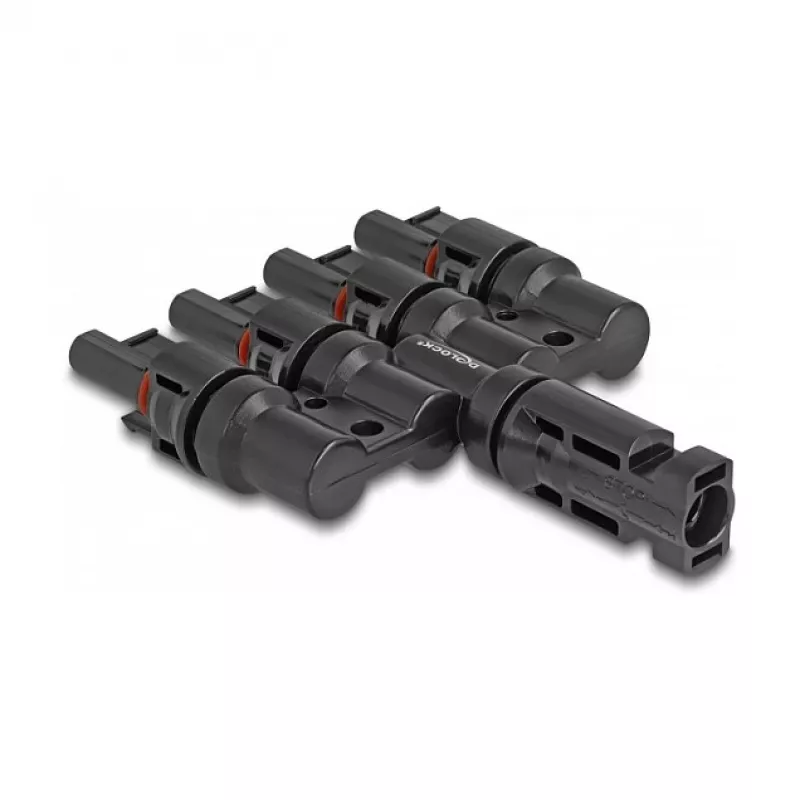

Conector solar DeLOCK DL4 1 macho para 4 fêmea preto

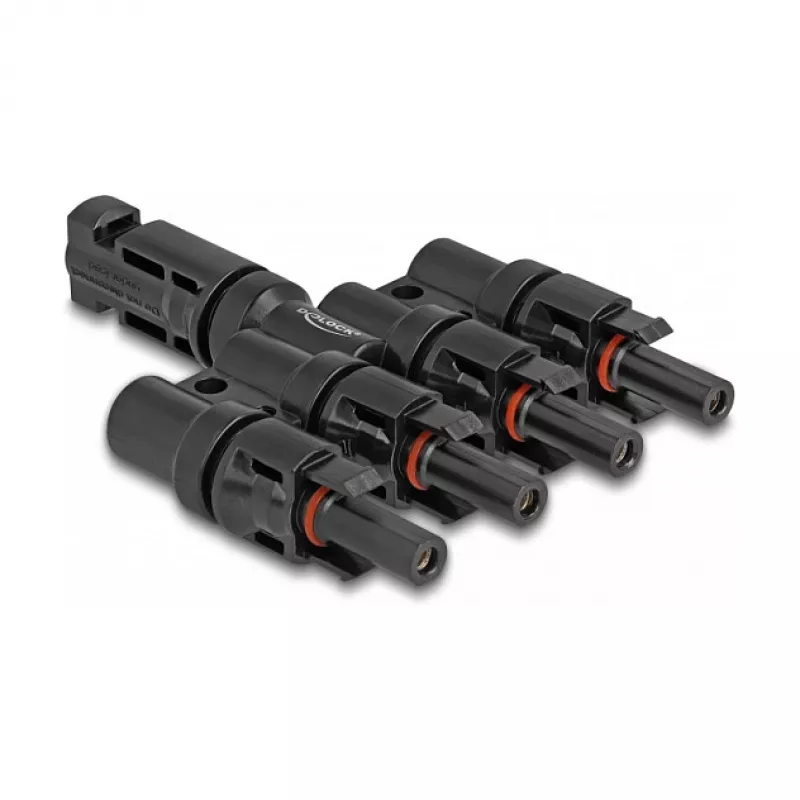

The DeLOCK DL4 solar connector combines one male and four female DL4 contacts in a compact black housing for distributing power from photovoltaic panels. Designed for use in solar installations, the connector supports secure snap-in mating and provides protection against dust and water with an IP67 rating. Dimensions are approximately 39 mm (W) x 104 mm (D) x 18 mm (H). Manufactured by DELOCK in China.

Advantages

The DL4 connector offers a snap-in locking mechanism that prevents accidental disconnection while allowing release with the proper tool. Its IP67 rating ensures protection from dust and temporary immersion in water, and the compact black housing simplifies installation and routing in solar arrays.

Suitable for

• Connecting one solar panel feed to up to four downstream DC inputs
• Small to medium rooftop and ground-mounted photovoltaic installations
• Field wiring and extension of panel strings where a compact splitter is needed

Key specifications

• Connector type: DL4, 1 male to 4 female
• Protection class: IP67 (dust and waterproof)
• Dimensions: 39 mm × 104 mm × 18 mm (W × D × H)
• Color: Black
• Brand / Origin: DELOCK / China
• MPN: 60026, EAN: 4043619600267

How to use

Align the male DL4 plug with the mating female connector and push until the snap-in engagement clicks into place. To disconnect, use the appropriate release tool to unlock the snap mechanism before separating the connectors. Ensure connections are tightened and routed to avoid mechanical strain and that polarity is correct before energising the circuit.

Recommendations

Use the connector only within the ratings of the connected PV system components. Install in dry, accessible locations when possible and check seals for damage before exposure to weather. For safe operation, have DC wiring and connections verified by a qualified installer.
