Conector TNC DeLOCK 90016 RG-174 RG-316 cravar

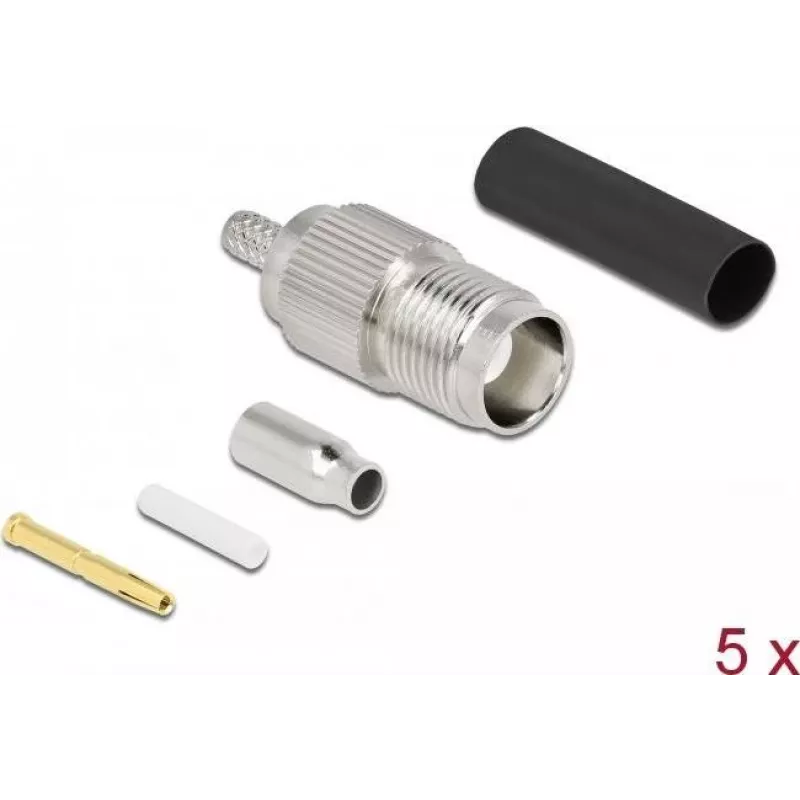

The DeLOCK TNC connector with matching shrink tube is intended for use in radio frequency technology to connect coaxial cables. It is designed specifically for crimping RG-174 and RG-316 cables and provides a 50 Ω impedance with nickel‑plated contacts for reliable electrical connection and corrosion resistance. The compact dimensions (12 mm width × 30 mm depth × 12 mm height) make the connector suitable for installations with limited space; the package contains five identical connectors.

Advantages

The TNC connector supports a standardized 50 Ω impedance and nickel‑plated contacts for durability and stable signal transmission. Its crimping design ensures a secure mechanical and electrical connection to RG-174 and RG-316 coaxial cables. The small form factor simplifies use in confined assemblies, and the included shrink tube improves strain relief and environmental protection at the joint.

Suitable for

Key specifications

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid, and dielectric to the recommended lengths for the crimp contact. Slide the shrink tube and crimp ferrule onto the cable, insert the centre conductor into the contact, and crimp the contact and ferrule using the appropriate crimping tool for the connector size. Position the connector body over the assembly, apply heat to the shrink tube to secure strain relief, and verify the mechanical and electrical integrity after assembly.

Recommendations

Use a crimping tool and dies matched to the DeLOCK TNC contact dimensions and verify cable strip lengths from the connector manufacturer. Test continuity and impedance after assembly to ensure correct installation and maintain RF performance.
