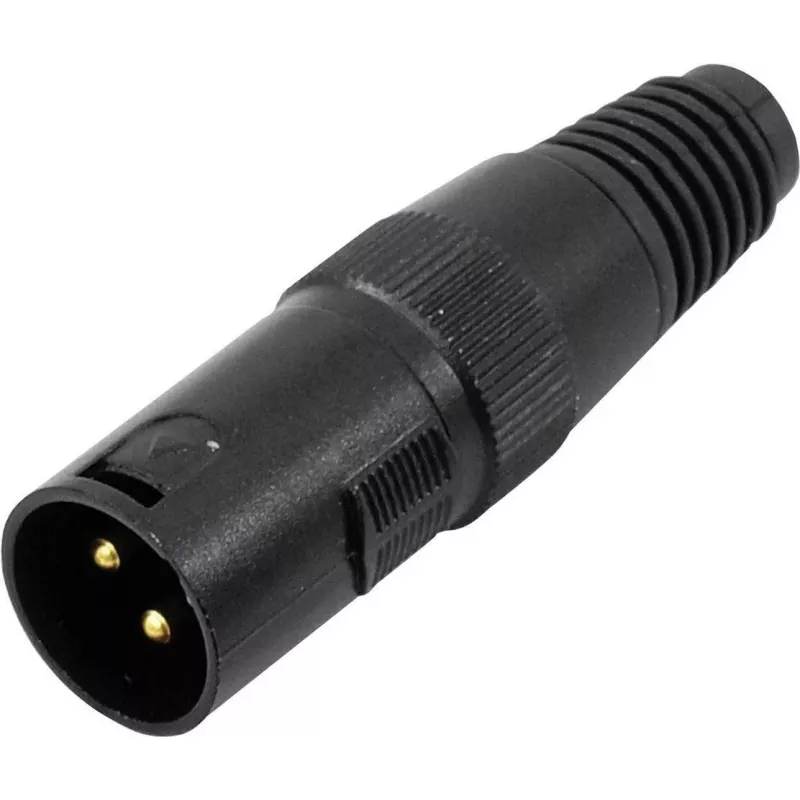

Conector XLR de 3 pinos Omnitronic 30208430 – conector de áudio macho/fêmea, 3 pinos

Omnitronic 30208430 is a 3-pin XLR audio connector designed for balanced microphone and line-level signal connections. It is available in male and female configurations and provides secure metal housing and standard 3-pin wiring for reliable electrical contact and mechanical stability. The connector is suitable for studio, live sound and permanent installations where professional balanced audio connections are required.

Advantages

The Omnitronic 30208430 offers standard XLR 3-pin compatibility for balanced audio, a robust housing for long-term use and secure contact to minimise signal loss and interference. Its male and female variants allow flexible cable and panel connections with industry-standard pin assignment.

Suitable for

Key specifications

How to use

Strip the cable conductors to the appropriate length, solder or crimp the wires to the corresponding XLR pins following the standard pinout (pin 1 = ground/shield, pin 2 = hot/+, pin 3 = cold/-), assemble the connector housing and secure any strain relief. For panel-mounted female connectors, mount and fasten to the panel before wiring according to the equipment layout.

Recommendations

Use the Omnitronic 30208430 with properly balanced cables and follow the standard XLR pinout to maintain signal integrity. Ensure solder joints or crimps are clean and strain relief is fitted to prevent cable fatigue in permanent installations.
