Conjunto de adaptadores para calha DIN INSYS MIRO adaptador adicional para montagem plana

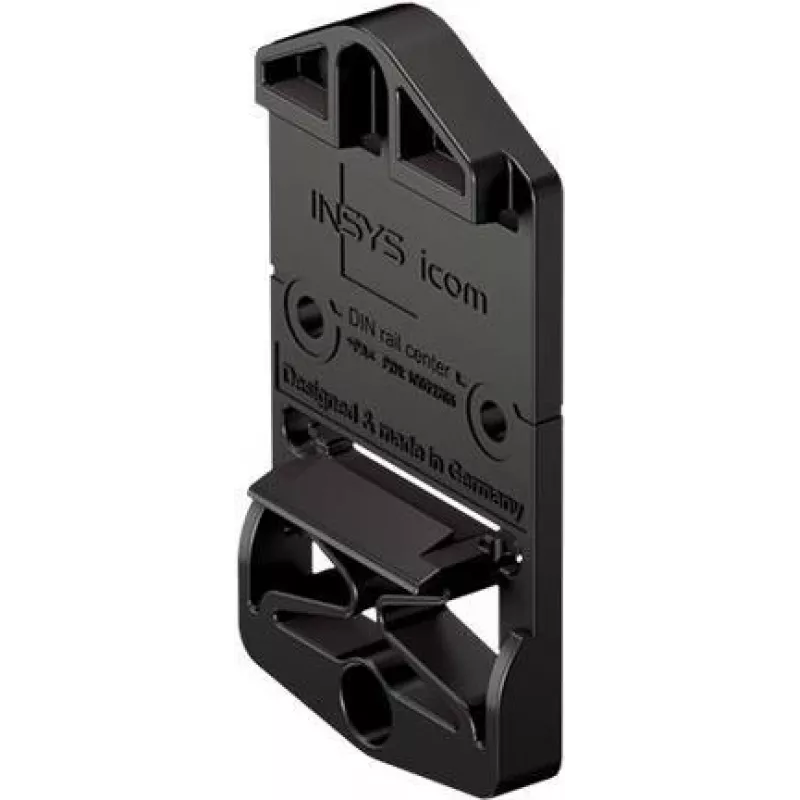

The INSYS MIRO DIN Rail Adapter Set for flat mounting is an accessory designed to provide a stable mechanical interface between INSYS MIRO devices and control cabinet rail systems or flat surfaces. It enables secure attachment of MIRO modules to standard DIN rails or direct flat mounting, aligning the device for straightforward wiring and access during installation and maintenance.

Advantages

This adapter set offers a compact solution for mounting INSYS MIRO units without modifying the device housing. It reduces installation time by providing a ready-made mounting interface, ensures reliable mechanical retention on DIN rails, and maintains proper alignment for cable routing. The construction supports repeated installation and removal while preserving device position and accessibility.

Suitable for

Key specifications

How to use

Align the adapter with the mounting points on the INSYS MIRO device and attach according to the adapter design, using the provided snap features or screws. For DIN rail installation, engage the adapter onto the rail until it locks into place; verify that the device is seated and secure. For flat mounting, position the assembly on the intended surface and fasten through the adapter's screw points. After mounting, route and secure cables to avoid strain on connectors and check stability before powering the system.

Recommendations

Install the adapter in accordance with local electrical and safety regulations. Use appropriate fastening hardware for the mounting surface and consider additional vibration damping if the installation site is subject to strong mechanical shocks. Periodically inspect attachment points and cable strain relief during routine maintenance.
