Conjunto de cabos IVT para inversores da SWD-Serie, 1 m, 25 mm², para 1200 W

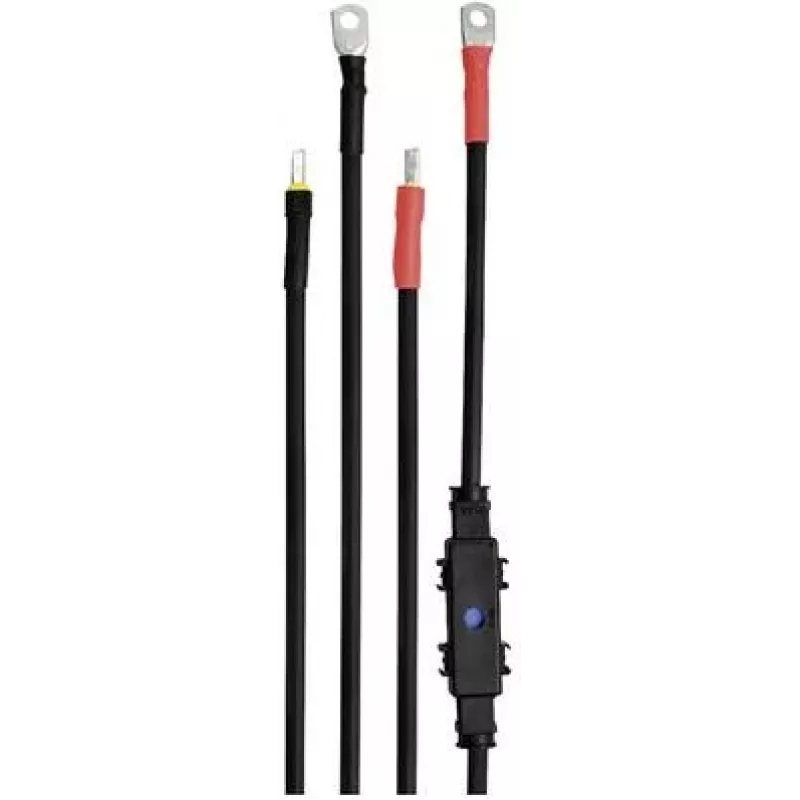

Cable set IVT for SWD series inverter, 1 m, 25 mm², for 1200 W is a power cable assembly designed to match the electrical and mechanical requirements of SWD series inverters rated at 1200 W. The set provides a one-metre length of heavy-duty conductor with a 25 mm² cross-section suitable for DC and power connections on small-scale inverter installations. The design aims to deliver the necessary current-carrying capacity and reliable terminations for safe operation of the inverter system.

Advantages

The cable set combines a robust 25 mm² conductor size with a compact 1 m length to minimise voltage drop while remaining easy to route in confined installation spaces. Insulation and conductor sizing are selected to support the rated power of 1200 W, reducing overheating risks under normal operating conditions. The assembly is supplied ready for connection to SWD series inverters, simplifying installation and improving consistency compared with loose cable and separate terminals.

Suitable for

• Power and DC connections for SWD series inverters rated 1200 W
• Small off-grid or backup inverter installations where a short connection run is required
• Retrofit or replacement of existing inverter connection cables
• Installations requiring a 25 mm² cross-section for adequate current capacity

Key specifications

• Cable length: 1 m
• Conductor cross-section: 25 mm²
• Intended inverter power rating compatibility: approx. 1200 W
• Application: DC and power cable for inverter connections

How to use

Inspect the cable set before installation to ensure there is no damage to insulation or terminations. Route the cable to minimise sharp bends and avoid proximity to heat sources or moving parts. Connect the cable to the inverter and battery or DC source following the inverter manufacturer’s polarity markings and torque specifications for terminals. Ensure connections are secure and protected from moisture and mechanical strain before energising the system.

Recommendations

Use the cable set in accordance with local electrical codes and the SWD series inverter installation manual. Verify that the 25 mm² conductor cross-section and 1 m length suit the installation’s expected current and voltage-drop constraints. For runs longer than 1 m or for higher continuous currents, consider a cable with larger cross-section or shorter routing. Regularly inspect terminations for corrosion or loosening and retighten to specified torque values after initial operation.
